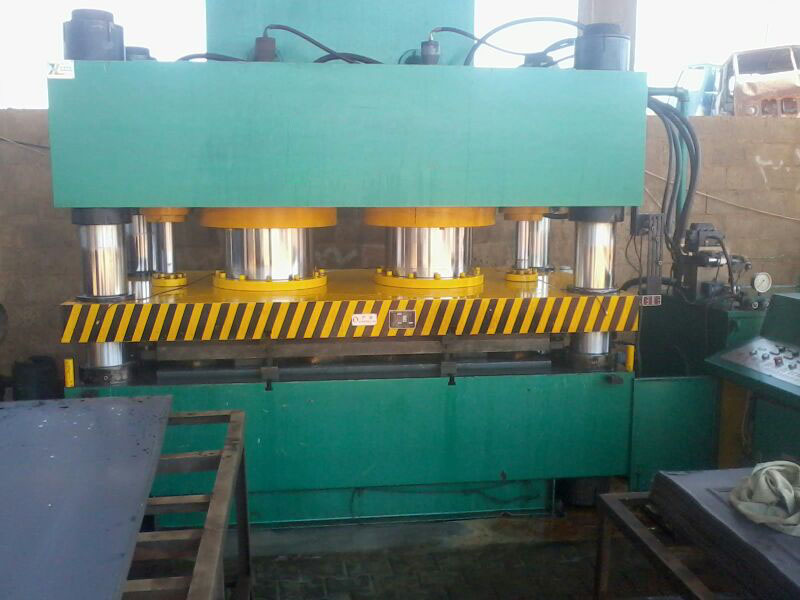

Steel Door Hydraulic Press / Four Column Hydraulic Machine
| Price: |
US $ 12900/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
All Various |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sales Market: |
20 More Than Countries |
| Used: |
Press Various of Metals |
| Warranty: |
1 Year |
| Control Way: |
Automatic PLC System |
| Forging Forming Method: |
Mold Forging |
Product Description
Steel Door Hydraulic Press / Four Column Hydraulic MachineWe are one of the biggest manufacturer and exporter on hydraulic press in north of CHINA. We make and sell all kinds hydraulic press.
1. Simple structure,economical and practical .Be widly used in parts' blending,cold extruding ,correcting,pressed loading,punching,pressing and trimming technology.
2. Many kinds of forging techonic ways and work criterions,convenient for clients operation control.
3.Adopt high quality pressurization,improve transmission efficiency,reduce leakage phenomenon.
4. Adopt international brand's hydraulic and electrical components,insure the high quality of products.
5.Can choose displacement or pressure check-up,electro-hydraulic proportional control,and setting device of touch-screen's digital display equipments.
6. Independently develop CNC control system of parameter setting,memory,fault detection and remote monitoring functions,also owning copyright.
|
ltem |
Unit |
EY32 Series 4-column general hydraulic press |
|
EY32-40 |
EY32-100 |
EY32-200 |
EY32-315 |
EY32-500 |
EY32-800 |
EY32-1000 |
EY32-2500 |
EY32-4000 |
|
Nominal Force |
KN |
400 |
1000 |
2000 |
3150 |
5000 |
8000 |
10000 |
25000 |
40000 |
|
Ejecting force |
KN |
100 |
300 |
300 |
630 |
1000 |
1250 |
2000 |
2500 |
4000 |
|
Return Stroke |
KN |
150 |
160 |
360 |
600 |
930 |
720 |
1060 |
2000 |
4360 |
|
Max. working pressure |
MPa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Ram stroke |
mm |
320 |
630 |
710 |
800 |
900 |
1000 |
1000 |
1000 |
1000 |
|
Daylight |
mm |
520 |
900 |
1120 |
1250 |
1500 |
1600 |
1600 |
2000 |
1700 |
Ram
Speed |
ldle |
mm/s |
55 |
120 |
100 |
120 |
120 |
150 |
150 |
150 |
150 |
|
Pressing |
mm/s |
10~35 |
6~15 |
5~18 |
6~12 |
7~15 |
6~12 |
5~12 |
3~5 |
5 |
|
Return |
mm/s |
105 |
90 |
100 |
60 |
80 |
120 |
100 |
74 |
55 |
|
Ejecting Speed |
Ejecting |
mm/s |
170 |
50 |
125 |
55 |
75 |
80 |
60 |
50 |
60 |
|
Return |
mm/s |
450 |
100 |
250 |
100 |
160 |
160 |
120 |
160 |
100 |
|
Table size |
LR |
mm |
450 |
720 |
940 |
1260 |
1380 |
1880 |
2000 |
3000 |
3500 |
|
FB |
mm |
400 |
630 |
900 |
1200 |
1400 |
1600 |
1800 |
2500 |
2500 |
Overall
dimensions |
LR |
mm |
1230 |
1950 |
2280 |
2630 |
3840 |
5150 |
5546 |
8800 |
11085 |
|
FB |
mm |
1115 |
1880 |
2000 |
2000 |
2800 |
2800 |
3135 |
3870 |
6350 |
|
Above floor |
mm |
2250 |
3260 |
3810 |
4175 |
4716 |
5930 |
5614 |
6640 |
7088 |
|
Motor Power |
kW |
5.5 |
7.5 |
11 |
22 |
44 |
60 |
74 |
81.55 |
161.33 |
|
Weight |
t |
1.5 |
4 |
8 |
16 |
27 |
43 |
45 |
180 |
260 |

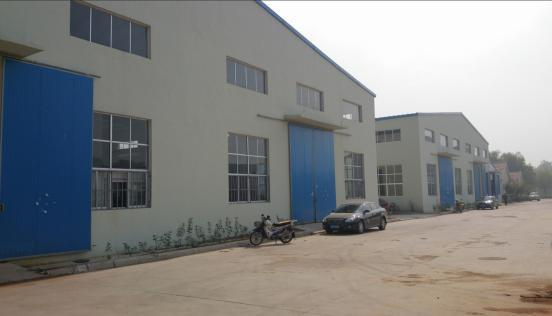

Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
