| Prod Model: |
ASME JIS DIN GOST |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"-80" |
| Pressure: |
150# - 2500# |
| Mateiral: |
Carbon Steel |
| Types: |
Wn So Bl Sw Th |
| Executive Standard: |
Asme, DIN, JIS, GB |
| Marking: |
as Client's Request |
| Painting: |
Rust-Proof Oil, Black Painting |
| Package: |
Wooden Case or Wooden Pallet |
| Original: |
Cangzhou |
| Min Qty: |
2PCS |
| Material: |
Carbon Steel |
| Manufacturing Way: |
Forging |
| Standard: |
BSW |
| Type: |
Welding Flange |
Product Description

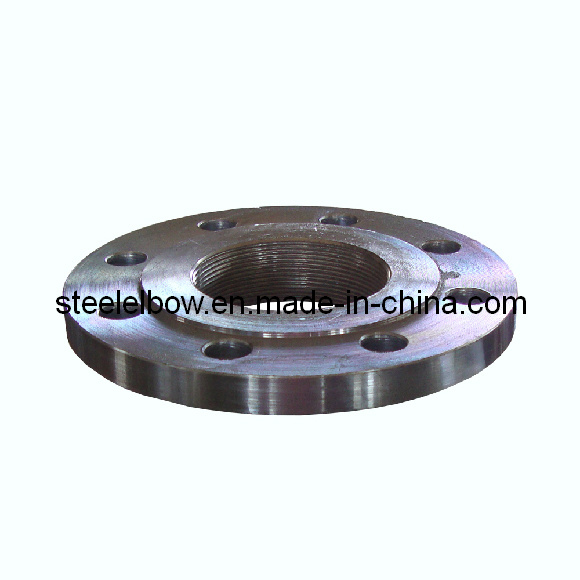

Products name:Steel flange1.Type

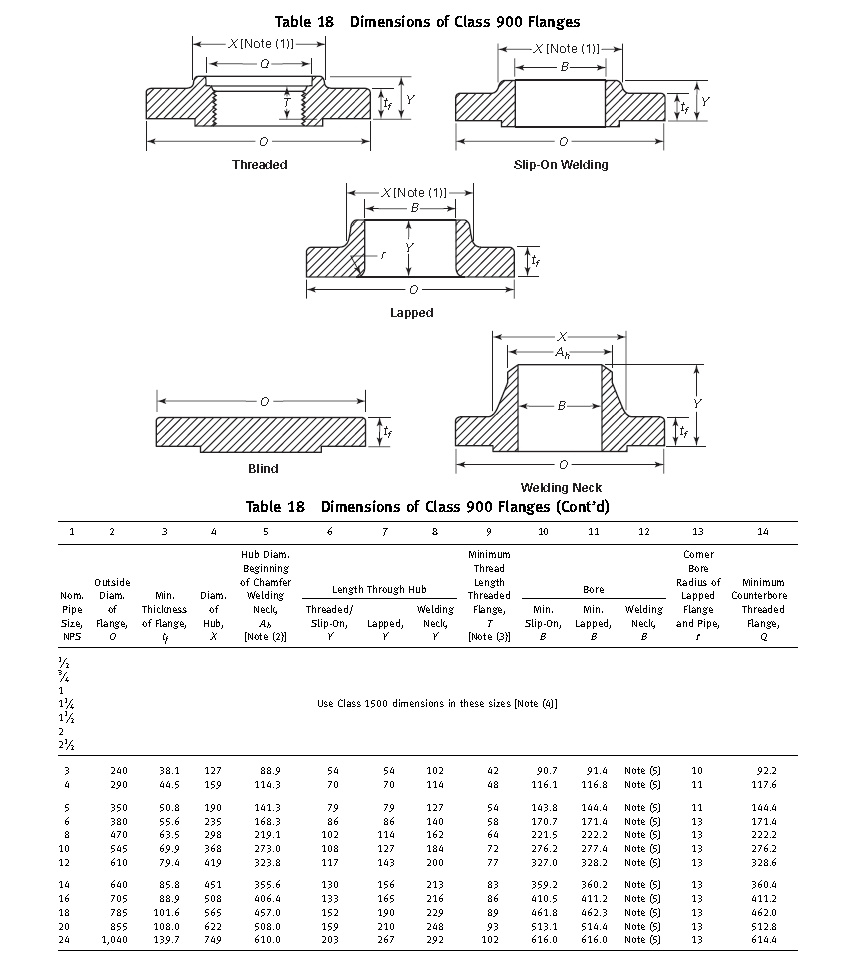

Welding Neck Flange, Slip On Flange, Blind Flange, Socket Welding Flange, Threaded Flange, Reducing Flange, Spectacle Blind Flange, Orifice Flange Special flanges according to drawing
2.Connect Face
Raised face, Flat Face, Male& Female face, Tongue and Groove face, Ring Type Joint face, etc
3.Pressure:
150#, 300#, 600#, 900#,1500# ,5K,10K,16K,20K.DIN2573, 2572, 2631, 2576, 2527, 2632, 2543, 2527, 2633, 2545, 2527, 2635, 2634,
4.Executive Standard
ASME B16.5 ,B16.36,B16.47,B16.48, ANSI/AWWA C207, API 605,API590, EN1092 , EN1759, EN 1514, DIN 2848,DIN2874,BS1560,BS3293, BS4504 ,ISO7005, JIS B2220 JIS2216 JPI 7S-15 SABS 1123.
5.Material
A105/A105N, A182 F11,F12,F304,F304L,F316L, A350 LF1,LF2,LF3,LF5,LF9;A694F42,F46,F48,F52,F60,F70,P245GH,P280GH,P305GH
6.Surface Treatment and Packing
Paint Black Lacquer or Transparent Oil .Wooden Case or Wooden Pallet or as per customers' requirements.
7.Payment :30%T/T in advance, balance after BL copy.
8.Minimal qty of order:5pcs
9.Origin:China
Hebei Yupeng Heavy Industry Piping Equipment Co., Ltd.With more than 20 years experience in Steel Pipe Fittings field is an Top pipeline equipment manufacturing enterprise in north of China.First Grade Project Supplier of CNPC , SINOPEC, CNOOC , Shell Oil, Coal Chemical, Coal Liquefaction, Electric Power fertilizer industry, ship building, onshore platform etc .With years' of manufacturing experience , advanced production equipment and systematic inspection device , wide products series and devotion to R&D , we are ready to be your partner in steel butt weld pipe fittings industry.
|
The General ASTM Material For Flanges |
|
Class and Sort
|
Chemical Components % |
Mechanical Property |
|
|
C(Max) |
Si(Max) |
Mn(Max) |
Cr(Max) |
Ni(Max) |
Mo(Max) |
P(Max) |
S(Max) |
Tensile Strength
mpa(Min) |
Yield Strength
mpa(Min) |
Elongation
mpa(Min) |
Hardness
(Max) |
ψ % |
ASTM
A105/A105M |
A105 |
0.35 |
0.10-0.35 |
0.65-1.05 |
0.30 |
0.40 |
0.12 |
0.035 |
0.040 |
485 |
250 |
22 |
187 |
30 |
ASTM
A182/A182M |
F11CL1 |
0.05-0.15 |
0.50-1.00 |
0.30-0.60 |
1.00-1.50 |
... |
0.44-0.65 |
0.030 |
0.030 |
415 |
205 |
20 |
121-174 |
45 |
|
F11CL2 |
0.10-0.20 |
0.05-1.00 |
0.30-0.80 |
1.00-1.50 |
... |
0.44-0.65 |
0.040 |
0.040 |
485 |
275 |
20 |
143-207 |
30 |
|
F11CL3 |
0.10-0.20 |
0.05-1.00 |
0.30-0.80 |
1.00-1.50 |
... |
0.44-0.65 |
0.040 |
0.040 |
515 |
310 |
20 |
156-207 |
30 |
|
F12CL1 |
0.05-0.15 |
0.50 |
0.30-0.60 |
0.80-1.25 |
... |
0.44-0.65 |
0.045 |
0.045 |
415 |
220 |
20 |
121-174 |
45 |
|
F12CL2 |
0.10-0.20 |
0.10-0.60 |
0.30-0.80 |
0.80-1.25 |
... |
0.44-0.65 |
0.040 |
0.040 |
485 |
275 |
20 |
143-207 |
30 |
|
F304 |
0.08 |
1.00 |
2.00 |
18.0-20.0 |
8.0-11.0 |
... |
0.045 |
0.030 |
515 |
205 |
30 |
... |
50 |
|
F304H |
0.04-0.10 |
1.00 |
2.00 |
18.0-20.0 |
8.0-11.0 |
... |
0.045 |
0.030 |
515 |
205 |
30 |
... |
50 |
|
F304L |
0.030 |
1.00 |
2.00 |
18.0-20.0 |
8.0-13.0 |
... |
0.045 |
0.030 |
485 |
170 |
30 |
... |
50 |
|
F316L |
0.030 |
1.00 |
2.00 |
16.0-18.0 |
10.0-15.0 |
... |
0.045 |
0.030 |
485 |
170 |
30 |
... |
50 |
|
F317 |
0.08 |
1.00 |
2.00 |
18.0-20.0 |
11.0-15.0 |
... |
0.045 |
0.030 |
515 |
205 |
30 |
... |
50 |
|
F321 |
0.08 |
1.00 |
2.00 |
17.0-19.0 |
9.0-12.0 |
... |
0.045 |
0.030 |
515 |
205 |
30 |
... |
50 |
|
F347 |
0.08 |
1.00 |
2.00 |
17.0-19.0 |
9.0-13.0 |
... |
0.045 |
0.030 |
515 |
205 |
30 |
... |
50 |
Hebei Yupeng Heavy Industry Piping Equipment Co., Ltd., born out of the former Hebei Cangzhou HengTong Tubing Co., Ltd., We had more than 20 years experience in Steel Pipe Fittings field is an Top pipeline equipment manufacturing enterprise in north of China. We are perfessional on a series of material Carbon Steel, Alloy Steel, Stainless Steel &Composite Steel pipe fittings including: High, Medium &Low Pressure Elbow, Tee, Reducer, Cap, Bend, Weldolet, Flange, Couples etc. We are the most local project Top Supplier in domestic major projects for example CNPC, SINOPEC, CNOOC, Shell Oil, Coal Chemical, Coal Liquefaction, Electric Power fertilizer industry, ship building, onshore platform etc. The company relies on continuous technical innovation to keep creating values for clients and focuses on the technology input and the R&D of new products based on the integration of the high-end products including the X70, X80, X100 fittings and elbows applicable for long-distance pipes, hydrogen fittings in the refining and chemical engineering and four pipes for large-capacity power.
The company is provided with advanced design & development, production and testing equipment. The major production equipment involves one 8, 000T T-extruder, one 4000T hydrostatic press, one 3000T hydrostatic press, four DN1220 pipe benders, one DN1500 pipe bender, two 16m× 5m× 4.5m natural gas thermal treatment furnaces, two anticorrosive equipment and more than 150 pieces (sets) of other production equipment. The major testing equipment include more than 100 articles (piece/sets) like spectrum direct reading instrument, X-ray flaw detector, magnetic particle flaw detector, universal material testing machine, chemical elements analysis meter, etc
In response to the demand of economic globalization, the company will continuously adhere to the enterprise tenet of "forging the quality goods, strengthening the enterprise and contributing to the society", in order to scientifically integrate the resources, energize the enterprise management, reinforce the core competitiveness of the enterprise and build an outstanding brand of "Yupeng Heavy Industry", so as to approach the updating challenge on global fittings. We are looking forward to cooperating with you to seek a win-win development.
