Product Description
Specifications
We can make and design will kinds of roll forming machine according to customer's request. Our machine has passed CE, ISO.

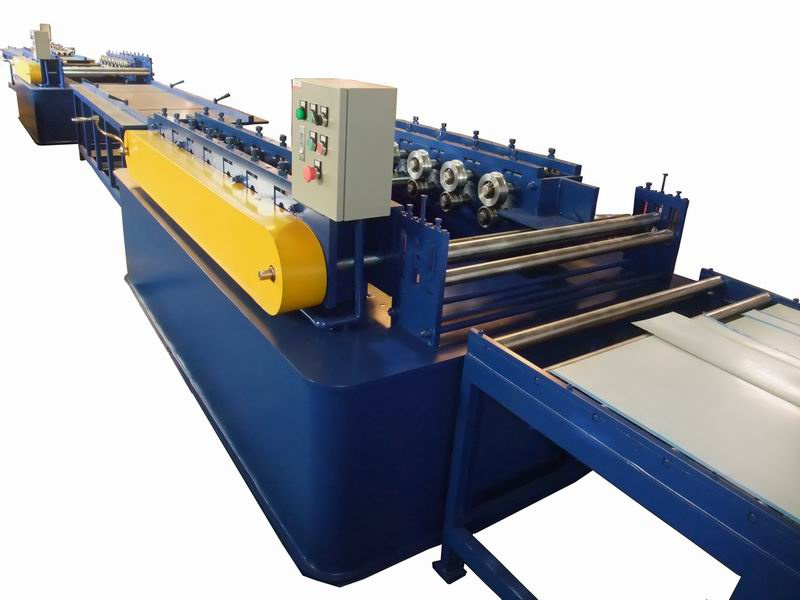

Roll Forming Machine Features:
1) Consists of uncoiler and its base, coil sheet guiding equipment, film covered
Device, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system, supporter table
2) Material spec: Colored and galvanized steel sheet at yield stress 33KSI
3) Thickness of coil sheet: 0.5 - 0.6 mm
4) Coil width: 1000mm
5) Working speed: 3.0 - 4.0m/min (step distance at 380mm)
6) Power requirement:
A) Main motor power: 7.5kW
B) Hydraulic station power: 5.5kW
7) Passive uncoiler max. Capacity: 5, 000kg
8) Quantity of stands: 15 groups
9) Controlling system: PLC
10) Type of cutting: Roll-formed and length-set cutting
11) Machine dimension: About 18, 500 x 1, 500 x 1, 400mm
12) Total weight: About 9, 500kg
13) Voltage: 380V 3 phase 60Hz or at buyer's requirement
14) Working flow: Decoiling the sheet-sheet guiding-film covering-roll forming-measure length -pressing-cutting the panel-panels to the supporter
