| Prod Model: |
GW-1-500/1JJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Iron, Steel Melting |
| Capacity: |
1000 Kg |
| Furnace Body Quantity: |
2 PCS |
| Furnace Body Type: |
Aluminum Shell Furnace Body |
| Tilting Type: |
Electric Gear Reducer Tilting |
| Usage: |
Industrial |
Product Description

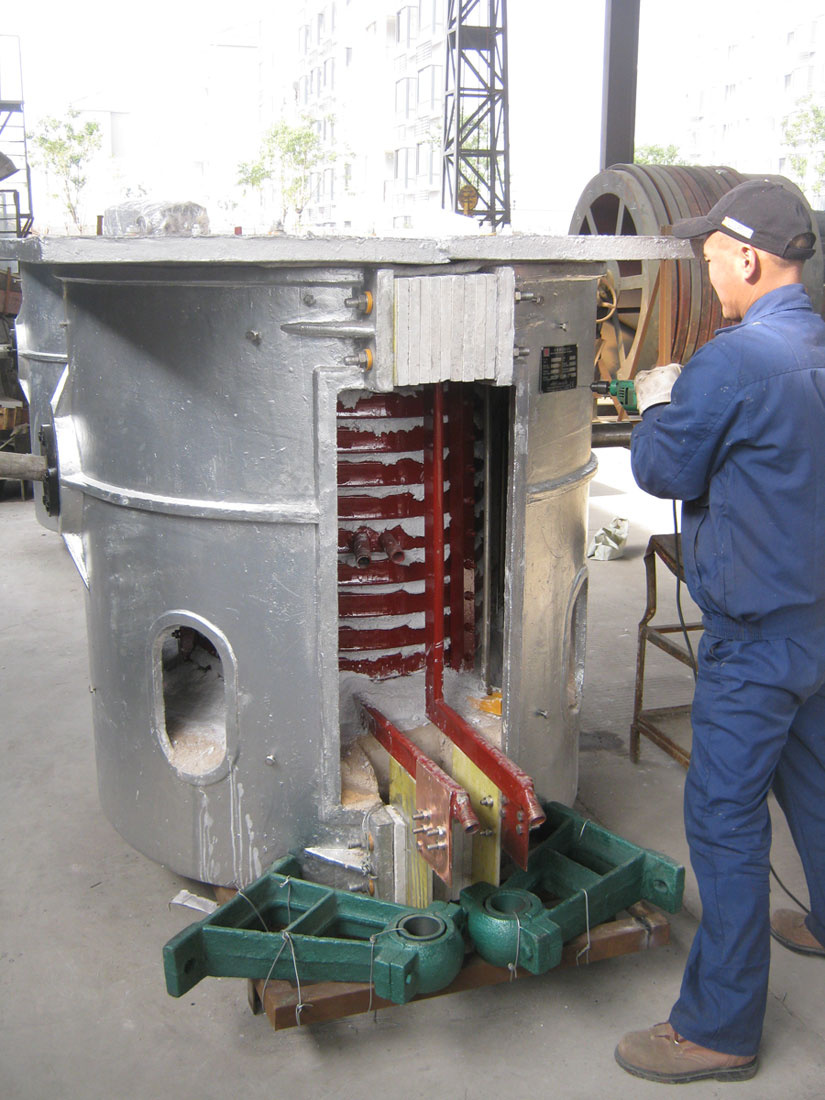

This GW-JJ Series Steel Melting Electric Furnace, aluminum shell mechanical tilting, is for melting cast steel, cast iron, stainless steel, copper, aluminum and other metals or its alloy.
It is particularly suited to small and medium-size enterprises, or as Precision Casting Material Test.
Electrical Feature:
1. Digital CMOS chip (U. S. ASIC-2-12), with the highest degree of integration at home, is used in control circuit, the overall machine controlled through one single panel;
2. Frequency-sweep zero voltage start, high success rate, no shock;
3. Automatic resistance adjustment, permanent power output, 10-20% energy saved in comparison with domestic traditional machine of the type;
4. Auto phase sequence adaptation, free of synchronization;
5. Good performance in reload staring, auto recovery;
6. Highly integrated in controlling circuit, free of use of high-rate starter and relay loop, fairly low failure rate;
7. Wholly digital design, strong in anti-interference, no temperature shift when in continuous working;
8. Multi-protection functions (for over current, over voltage, insufficient water pressure, power failure, or phase absence), and mishandling will not cause damage to machine
Model explanation ( GW-1-750/1JJ for example}
GW--------Aluminum Shell Steel Melting Electric Furnace
-1-------Rated Capacity 1 Ton (1000kg)
-750-------Rated Power 750Kw
/1--------1000Hz (1kHz)
-JJ-------Mechanical tilting (by electric motor and gear)
|
Model |
Input Power |
Input Volt. (6pulse) |
Incoming Curr. |
Rated Power |
DC Curr. |
DC Volt. |
Melting Rate |
Working Freq. |
Working Volt. |
Rated Capacity |
Power Consumption |
|
Kw |
V |
A |
Kw |
A |
V |
T/H |
Hz |
V |
T |
KWH/T |
|
GW-0.01-50/1JJ |
60 |
380 |
76 |
50 |
140 |
400 |
0.06 |
1000 |
750 |
0.01 |
850 |
|
GW-0.03-100/1JJ |
100 |
380 |
160 |
100 |
200 |
500 |
0.09 |
1000 |
750 |
0.03 |
850 |
|
GW-0.05-100/1JJ |
100 |
380 |
160 |
100 |
200 |
500 |
0.12 |
1000 |
750 |
0.05 |
800 |
|
GW-0.08-100/1JJ |
100 |
380 |
160 |
100 |
200 |
500 |
0.12 |
1000 |
750 |
0.08 |
800 |
|
GW-0.15-100/1JJ |
100 |
380 |
160 |
100 |
200 |
500 |
0.15 |
1000 |
750 |
0.15 |
820 |
|
GW-0.25-160/1JJ |
180 |
380 |
256 |
160 |
320 |
500 |
0.24 |
1000 |
750 |
0.25 |
790 |
|
GW-0.5-250/1JJ |
280 |
380 |
400 |
250 |
500 |
500 |
0.4 |
1000 |
1500 |
0.5 |
770 |
|
GW-0.75-400/1JJ |
400 |
380 |
650 |
400 |
800 |
500 |
0.6 |
1000 |
1500 |
0.75 |
770 |
|
GW-1-500/1JJ |
550 |
380 |
800 |
500 |
1000 |
500 |
0.8 |
1000 |
1500 |
1 |
750 |
|
GW-1-750/1JJ |
800 |
380 |
1200 |
750 |
1500 |
500 |
0.9 |
1000 |
1500 |
1 |
720 |
|
690 |
700 |
850 |
880 |
500 |
2600 |
660 |
|
GW-1.5-1000/0.5JJ |
1100 |
690 |
912 |
1000 |
1140 |
880 |
1.2 |
500 |
2600 |
1.5 |
700 |
|
GW-2-1500/0.5JJ |
1650 |
690 |
1360 |
1500 |
1700 |
880 |
1.7 |
500 |
2600 |
2 |
675 |
|
GW-2-2000/0.5JJ |
2200 |
690 |
1400 |
2000 |
2275 |
880 |
1.9 |
500 |
2600 |
2 |
650 |
|
GW-3-2500/0.5JJ |
2750 |
690 |
2275 |
2500 |
2840 |
880 |
2.56 |
500 |
2600 |
3 |
610 |
|
950 |
1700 |
2080 |
1250 |
3200 |
560 |
|
GW-5-4000/0.5JJ |
4400 |
690 |
2300 |
4000 |
4540 |
880 |
4.5 |
500 |
2600 |
5 |
550 |
|
950 |
2700 |
3330 |
1250 |
3200 |
500 |
