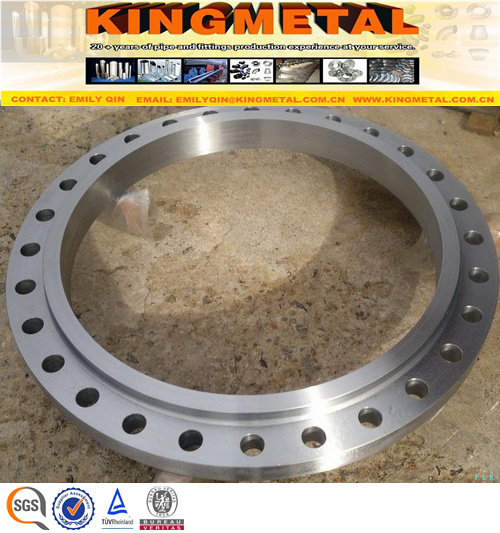

Steel Pipe Flange for Waterworks Service Awwa C207
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
KM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Producton Starndard: |
Awwa C207 Class D |
| Production Sizes: |
4" - 144" (100mm-3600mm) |
| Class: |
Class B ,Class D,Class E |
| Type: |
Welding Flange |
| Material: |
Stainless Steel |
| Manufacturing Way: |
Forging |
| Standard: |
Awwa |
Product Description
Size 4"-144"
Pressure: Class B ,Class D,Class E
Carbon steel
ASTM A105, ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2,ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, AISI 4130
Stainless steel
ASTM A182 F304/304L, F316/316L, F316H, F310, F321
Alloy steel
ASTM A182 F1, F5a, F9, F11, F12, F22, F91
duplex stainless steel
ASTM A182 F51/UNS S31803, F53/UNS S32750,F55/UNS S32760
Special Alloy
Monel 400, Inconel 600, Inconel 625, Incoloy 800, Incoloy 825, Hastelloy C276
Inspection: In house and third party
awwa flange dimensions
Type |
Flange
flange is a type of industrial flange designed to transfer stresses to
the pipe to reduce high stress concentrations at the base of the flange.
Compared with other types,weld neck ,slip on ,blind,plate etc. |
Size |
Weld neck flange: 1/2"~100"
DN10~DN4000 |
Pressure |
American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600,
CLASS 900, CLASS 1500, CLASS 2500
European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63,
PN 100, PN 160, PN 250, PN 320, PN 400 |
Standards |
GB/T9112-2000
GB/T9115.1-2000 GB/T9115.2-2000 GB/T9115.3-2000 GB/T9115.4-2000
GB/T9124-2000
GB/T13402-1992
SH/T3406-1996
GD2000 GD87-1101
JB/T74-1994
JB/T75-1994
JB/T82.1-1994 JB/T82.2-1994 JB/T82.3-1994 JB/T82.4-1994
HG/T20592-2009 HG/T20614-2009
HG/T20615-2009 HG/T20623-2009 HG/T20635-2009
ASME B16.5-2009 ASME B16.47-2006
API605-1988
MSS SP 44-2006
CSA Z245.12-05-2005
EN1092-1-2007 EN1759-1-2004
DIN2630 DIN2631 DIN2632 DIN2633 DIN2634 DIN2635 DIN2636
DIN2637 DIN2638
BS1560-3.1-1989 BS4504-3.1-1989
AFNOR NF E29-200-1-2007
ISO7005-1-1992
AS2129-2000
JIS B2220-2004 |
Material |
Carbon steel: A105
Alloy steel: A182 F 1-F 2-F 5-F 9-F 10-F 91-F 92-F 122-F 911-F 11-F 12-F 21-F 22
Stainless steel: A182 304-304H-304L-304N-304LN 316-316H-316L
-316N-316LN 321-321H 347-347H
Low temperature steel: A522 A707 Grade L 1-L 2-L 3-L 4-L 5-L 6-L 7-L 8
High performance steel: A694 F 42-F 46-F 48-F 50-F 52-F 56-F 60-F 65-F 70
Low-temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance: ASTM/ASME A860 WPHY 42-46-52-60-65-70
|
Surface treatment |
Transparent oil, rust-proof black oil or hot galvanized |
Flange Facing Types |
American Series: Flat Face(FF), Raised Face(RF), Tongue(T), Groove(G),
Female(F), Male(M), Ring Joints Face(RJ)
European Series: Type A(Flat Face), Type B(Raised Face), Type C(Tongue),
Type D(Groove), Type E(Spigot), Type F(Recess), Type G(O-Ring Spigot),
Type H (O-Ring Groove) |
Industries Served |
Electrical power, petroleum, natural gas, chemical, shipbuilding,
heating, papermaking, metallurgy |
Packing |
wooden case, pallet or as customers' requirement |
Min order |
10 pieces. |
Delivery time |
3 days after receipt of payment. |
Certification |
API, CCS, and ISO9001:2000 |
