| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness Of Coil Sheet: |
0.3-0.8mm |
| Color: |
Blue |
| Place Of Origin: |
China |
| Use: |
Roof |
| Forming Speed: |
8-10m/Min |
| Hydraulic Pressure: |
10-12mpa |
| Main Motor Power: |
3kw With Cycloidal Reducer |
| Type: |

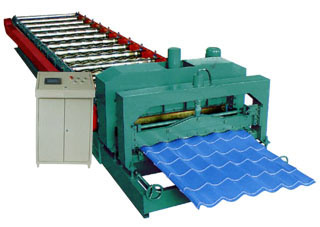

Roof Tile Roll Forming Machine |
Product Description
MACHINE COMPONENTS:
(1) Un-coiler 1 set
(2) Roll-Forming M/C 1 set
(3) Hydraulic die 1 set
(4) Hydraulic Cutting 1 set
(5) PLC Control System 1 set
TECHNICAL SPECIFICATION
(1)Un-coiler:
Un-powered; Single head; Max. Capacity: 5000kg;
Coil inner-diameter: 508mm
(2) Roll-Forming M/C:
13-step to form, Material of Roller: 45# steel
Voltage: 380V/50Hz.
Line speed: 8-15m/min;
(3) Pressing die
Stop to press, Post to press, Depth of the stair is 25mm. (4) Hydraulic Cutting
Stop to cut, Post cut;
Cutting tool material: GCr12, cutting length tolerance ± 2mm;
(5) PLC Control System:
Using Mitsubishi PLC Control the quantity, length automatically, LCD screen,
Option Hydraulic un-coiler
Hydraulic system to expand coil inner hole;
Power of the pump: About 2 kw
Frequency Inverter to regulate turning speed, Automatic stop device;
Load capacity = Max. 5Tons;
Coil innerdiameter= 508mm; Coil width = 1000mm
Botou xinsheng roll forming machinery factory, dedicated to focus on cold_formed metal plate roll forming equipment and manufactureing, now has a unique mode of management and product development capacity, ranking with the industy-leading level. My plant products due to structural light, design reasonable, constantly updated and greatly favored customers.
My factory is located in the Bohai Sea Economic circle, China foundary city-Botou city, north of Beijing and Tianjin, East Bohai Sea, 104, 106National Road, Beijing-Shanghai Railway, Beijing-Fuzhou Expressway runs through the city, convenient transportation and location.
My factory'main products include: Glazed tile equipment, building equipment contractors board, C/Z shaped steel forming equipment, composite plate molding equipment, automobile car plate, anode plate, such as dust removal equipment, and in accordance with the actual needs of the user-made production. At the same time provide users with pre-sales, after a series of technical guidance, production, installation, repair through-train service.
