IMG_6184 J steel spur spline shaft |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |

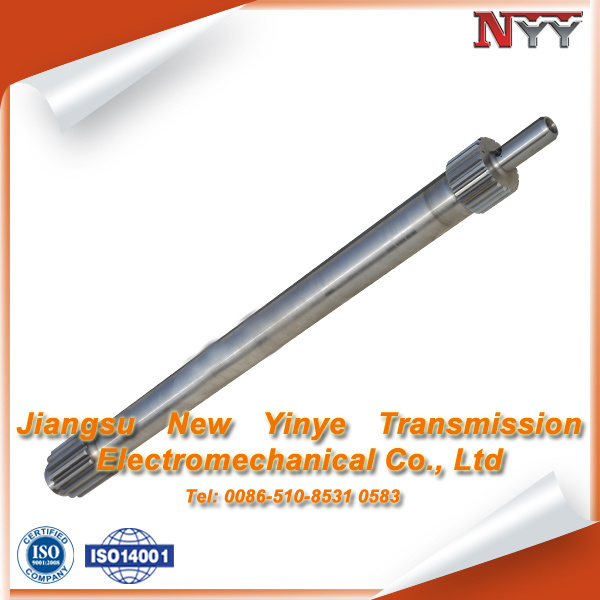

Steel Spur Spline Shaft |
| Tooth Trace: |
Involute |
| Material: |
18Cr2Ni4WA |
| Process: |
Forging, Quenching and Tempering, Spline Hobbing |
| Quality Level: |
GB3478 Grade 6 |
| OEM And ODM: |
Yes |
| MOQ: |
1PC |
| Lead Time: |
60 Days |
| Package: |
Seaworthy Packing in Crates |
| Spur Spline Shaft: |
Steel Spur Spline Shaft |
| Stiffness & Flexibility: |
Flexible Shaft |
| Load: |
Drive Shaft |
| Axis Shape: |
Straight Shaft |
| Shaft Shape: |
Stepped Shaft |
Product Description
Our Feature
1) In-house capability: OEM service as per customers' requests, with in-house tooling design & fabricating
2) Professional engineering capability: On product design, optimization and performance analysis
3) Manufacturing capability range: DIN 3960 class 8 to 4, ISO 1328 class 8 to 4, AGMA 2000 class 10-15, JIS 1702-1703 class 0 to 2, etc.
4) Packing: Tailor-made packaging method according to customer's requirement
5) Just-in-time delivery capability
Primary Competitive Advantages
1. Professional bull helical gear manufacturer
2. Experience in Cooperate with Fortune 500 Companies
3. Professional Engineering Capability
4. Stable Quality
5. Reasonable Price
6. Small Orders Accepted
7. Continuous Improvements
8. High Product Performance
9. Prompt Delivery
10. Professional Service
Our Main Product
1. Spur Gear
2. Planetary Gear
3. Metal Gears Small
4. Gear Wheel
5. Ring Gear
6. Gear Shaft
7. Helical Gear
8. Pinion Gear
9. Spline Shaft
10. V Belt Pulley
Company Profile
1.21 years experience in high quality Gear Shaft's production, sales and R&D
2. Our product, the Gear Shaft is certificated by ISO9001: 2008 and ISO14001: 2004.
3. NYY has more than 50 patents in high quality Gear Shaft manufacturing and R&D fieles.
4. NYY products are exported to Asia, America, Europe, Australia, Middle-east and Africa.
Q&A:
Service and quality information:
1. Q: Can you make as per custom drawing?
A: Yes, we can do that.
2. Q: If I don't have drawing, what can you do for me?
A: If you don't have drawing, but have the sample part, you may send us. We will check if we can make it or not.
3. Q: How do you make sure the quality of your products?
A: We will do a series of inspections, such as:
A. Raw material inspection (includes chemical and physical mechanical characters inspection),
B. Machining process dimensional inspection (includes: 1st pc inspection, self inspection, final inspection),
C. Heat treatment result inspection,
D. Gear tooth inspection (to know the achieved gear quality level),
E. Magnetic particle inspection (to know if there's any cracks in the gear).
We will provide you the reports 1 set for each batch/ shipment.
|
steel spur spline shaft |
|
|
Tooth trace |
Involute and modification |
|
material |
18Cr2Ni4WA |
|
Process |
Forging, quenching and tempering, spline hobbing |
|
Pressure angle |
30°P |
|
Quality level |
GB3478 grade 6. |
|
Type |
Mn=3, Z=20, a=30°P,
Mn=2, Z=22, a=30°P; |
|
Brand |
NYY |
|
Max. N.M |
1200 |
|
Total length mm |
400 |
|
Capabilities of Gears/ Splines |
|
|
|
Item |
Internal Gears and Internal Splines |
External Gears and External Splines |
|
Milled |
Shaped |
Ground |
Hobbed |
Milled |
Ground |
|
Max O.D. |
2500 mm |
|
Min I.D.(mm) |
30 |
320 |
20 |
|
Max Face Width(mm) |
500 |
1480 |
|
Max DP |
1 |
0.5 |
1 |
0.5 |
|
Max Module(mm) |
26 |
45 |
26 |
45 |
|
AGMA/ DIN Level |
DIN Class 8 |
DIN Class 4 |
DIN Class 8 |
DIN Class 4 |
|
Tooth Finish |
Ra 3.2 |
Ra 0.6 |
Ra 3.2 |
Ra 0.6 |
|
Max Helix Angle |
±22.5° |
±45° |
Jiangsu New Yinye Transmission Electromechanical Co., Ltd was founded in 1993 and located at the lakeside of Tai in Wuxi, Jiangsu province. It is a high-tech enterprise specializing in manufacturing high precision involute cylindrical gears, gear boxes and precision sheet metal products. Our company occupies 50, 000 square meters with the total investment 150 million RMB. It has the beautiful environment and the convenient transportation advantage, with the G2 Jinghu highway and Shanghai-Nanjing intercity high speed railway station nearby, as well as the Sunan Shuofang international airport 2kms away.
Our company owns the most sophisticated production and inspection facilities in the world and the high efficient management team. Our productions have been applied in many industrial fields, such as wind power, locomotive, marine, mining, petrol facility and food machinery, etc.
Respect for talent and innovation is the common knowledge of New Yinye staff now. New Yinye always focuses on the development ability, and now, it owns more than 50 patents. Our company has introduced several advanced engineering design software and applied more than 30 new technologies and new processes. And also, it is certified by ISO 9001: 2008 and ISO 14001: 2004.
Strict management, hard working, continuous improvement, honor the commitment is the enterprise spirit of New Yinye. With efficient quality management system, advanced management philosophy and high quality technology team, New Yinye is devoting itself to highest quality product, most perfect service to make its hundred-year enterprise dream to come true.
