Product Description

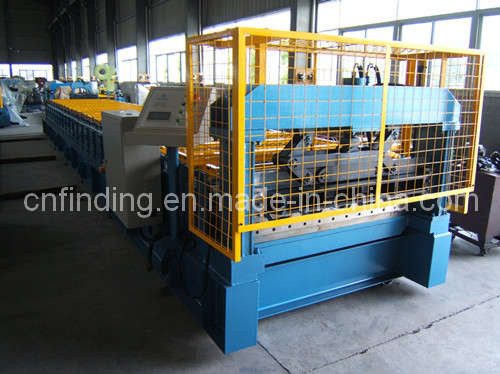

Our product name: Steel wall forming machine, wall forming machine, roll form machine.
Product Feature: The product from the roll forming machines looks beautiful and widely used as the wall of garden, factory, hotel, exhibition center, etc.
Components of machine
Wall roll forming machine includes in decoiler, sheet guiding equipment, roll forming system, post-cutting equipment, hydraulic station, electric controlling system and run out table for product.
Main technical parameters:
1. Suitable material: Color steel sheet or galvanized steel sheet
2. Thickness of raw material: 0.4-0.8mm
3. Yield strength of material: 235Mpa-345Mpa
4. Forming speed: About 20m/min
5. Power Requirement
Main motor power: 5.5Kw(Depend on final design)
Hydraulic station power: 2.2Kw (Depend on final design)
6. Uncoiler's loading capacity Max. Capacity: 5000kgs (can be increased to be 10T)
7. Controlling system: Mitsubishi PLC & converter.
Hangzhou Finding Co., Ltd, is a Group company, we have our own factory to make steel roll forming machine, such as tile forming machine, corrugated steel sheet forming machine, c or z purline machine, floor decking sheet forming machine, sandwich panel machine line, cut to length machine line, shutter door forming machine, embossing machine, etc.
Factory to make Steel coils( GI, PPGI, GL, PPGL )
Factory to make corrugated steel sheet
Factory to make EPS and PU sandwich panel
Factory to make solar cell and solar panel
Success of our company comes from success and development of our customers. We bear this in mind in the whole process from design, product research and development to after-sales service.
