| Prod Model: |
AF-Z80-30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Steel Z Channel Roll Forming Machinery |
| Machine Color: |
as Require |
| Machine Size: |
13m*1.4m*1.4m |
| Machine Weight: |
6tons |
| Control System: |
PLC |
| Cutting Type: |
Hydraulic |
| Driven Type: |
Chain |
| Size Of Container: |
40gp |
| Usage: |
Building |
| Life Long: |
10year |
| Forging Forming Method: |
Mold Forging |
Product Description

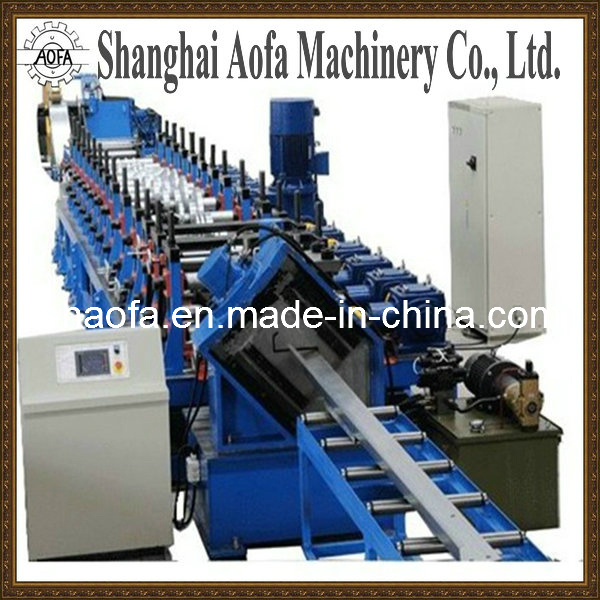

Z channel making roll forming machine
1). High speed machine
2). Drived by hydraulic motor
3). Pre-cutting and Pre-punching design
Z purlin roll forming machine
Product Feature:
The Z-shaped purlines formed by Z shape roll forming machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and MID-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
1. Working flow:
Decoiler------guiding------leveling------roll forming-------punching-----cut to length-----output table
2. Machine Components
1) Manual decoiler-----------------------------------------------1 set
2) Feeding and leveling device-------------------------------1 set
3) Rolling forming system--------------------------------------1set
4) Hydraulic punching and cutting---------------------------1 set
5) Product support frame---------------------------------------1 set
6) PLC Control System------------------------------------------1 set
7) Oil pump----------------------------------------------------------1set
Terms
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receiving advance payment.
Guarantee period: 18monthes free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
We can produce machine as different profile drawing.
|
Technical description |
1.
|
Effective width
|
80-300 adjustable
|
2.
|
Material Thickness
|
1.5~3.0mm
|
3.
|
Forming Speed
|
10-15M/min
|
4.
|
Rollers
|
15steps
|
5.
|
Shaft diameter |
80mm
|
6.
|
Roller material |
45# steel polished and coated with chrome HRC5 5 -60°
|
7.
|
Shaft material
|
high grade No.45 steel after treatment
|
8.
|
Punching type
|
hydraulic punching (Base on customer request this machine need one set of punching system)
|
9.
|
Cutting type
|
hydraulic after roll forming machine
|
10.
|
Punching die and balde material
|
Cr12 steel after treatment
|
11.
|
Power
|
11kw
|
12.
|
Hydraulic power
|
7.5kw
|
13.
|
Driven
|
1'' chian
|
14.
|
Control system
|
PLC Frequency Control System with touch screen
|
We mainly supply high quality roll forming machine. We have achieved good performance up to now, sincerely welcome businessmen overseas to establish a long-term cooperation to create a beautiful tomorrow!
Our factory mainly produce all kinds of roll forming machine, for example, rofo sheet roll forming machine, c purlin roll forming machine, glazed tile roll forming machine, deck floor roll forming machine, sandwich panel production line and so on.
Our factory is established form 2010, up to now, we have sold machines to Canada, Bolivia, South Africa, Dubai, India, Russia and many other countries,
Hope we can cooperate happily
