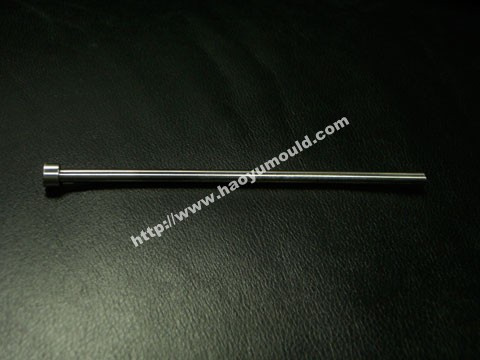

Straight Ejector Pins

Straight Ejector Pins
Price: Negotiable
Min Order: 1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Material: Steel
Shaping Mode: Plastic Injection Mould

Product Description

Material: SKH51 Hardness: 59-61HRC. The minimum diameter of pin to be machined is 0.2mm, with the maximum precision up to 0.002mm. Further machining such as chrome-plating and character-engraving is allowed for working end.

Unremitting efforts in research has made us the pioneer to make ejector pin with high-speed steel which is of high hardness, high ductility, high grinding resistance and high heat resistance, better for precision mold, capable of increasing the service life significantly, particularly being very effective in controlling the hot deformation for precision mold.

SKD61 Internal Hardness: 40-45HRC Surface Hardness: HV900 above. Pin dia.: 2.0-25mm, length: Below 1000mm, Thickness of nitration case: 0.02-0.05mm, After surface treatment, the product will have an anti-wearing and corrosion-resistant surface with fairly high hardness and a body with fairly low hardness and high tenacity, applicable for molds operating under high temperature.
Haoyu Precision Mould Components Limited is China's professional manufacturer of mold standard parts for applications in plastic molding, punch dies, automotive molds, semi-conductor packaging molds, die-cast and other precision jigs and fixtures. Our products are sold in Japan, Europe, USA, and coastal areas of China and won recognized reputations amongst our customers thanks to the high precision, excellent quality, full variety, complete size range and short lead time.
