| Prod Model: |
J39 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Mold Forging |
Product Description

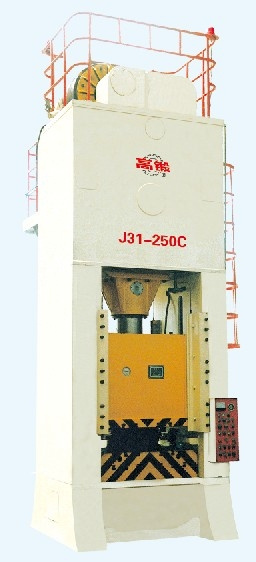

1. J31 series presses adopt steel-welded conbined structure (J31-250C base is foundry). The base, left and right uprights and crossbeam is connected through four tightening bolts, connection between the cross beam and slide adopts guide pillar and guide pillar bush structure(except630B)
2. The series presses adopt floating disk friction clutch-brake, controlled by imported safe double valve, reliable performance, high connection and long life.
3. In the slide there is import hydraulic overload protecting device (in 630B is an overload protecting formed of a shear plate).
4. Centralized lubricating system of thin oil (in 630B is centralized lubricating system of thick oil)
5. The presses are controlled by imported touchscreen, PLC and double look control system.
6. Increase pressure device and photoelectric can be chosen if needed.
MODEL
SPECIFICATIONS |
Unit |
J31-200 |
J31-250C |
J31-315C |
J31-400C |
JA31-400C |
J31-500C |
J31-630B |
J31-630C |
J31-800C |
|
Nominal capacity |
KN |
2000 |
2500 |
3150 |
4000 |
4000 |
5000 |
6300 |
6300 |
8000 |
|
Nominal working stroke |
mm |
10 |
13 |
13 |
13 |
13 |
13 |
13 |
13 |
13 |
|
Stroke of slide |
mm |
200 |
315 |
315 |
400 |
400 |
400 |
400 |
400 |
500 |
|
Strokes per minute |
s. p. m |
25 |
20 |
20 |
16 |
16 |
16 |
12 |
12 |
10 |
|
Max. die set height |
mm |
450 |
500 |
500 |
550 |
600 |
550 |
700 |
700 |
700 |
|
Die height adjustment |
mm |
120 |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
315 |
|
Distance between uprights |
mm |
875 |
1090 |
1090 |
1330 |
1070 |
1330 |
1530 |
1530 |
1680 |
|
Size of bolster(FB x LR) |
mm |
950x1050 |
1120x1250 |
1120x1250 |
1400x1500 |
1200x1240 |
1400x1500 |
1500x1700 |
1500x1700 |
1600x1900 |
|
Thickness of bolster plate |
mm |
140 |
180 |
180 |
200 |
200 |
200 |
220 |
220 |
220 |
|
Size of slide(FBxLR) |
mm |
702x1030 |
1020x1240 |
1020x1240 |
1300x1490 |
1000x1230 |
1300x1490 |
1400x1680 |
1400x1680 |
1500x1860 |
|
Stroke of slide knock-out |
mm |
80 |
100 |
100 |
150 |
150 |
150 |
150 |
150 |
120 |
|
Air pressure |
clutch |
Mpa |
0.38 |
0.45 |
0.45 |
0.45 |
0.45 |
0.45 |
0.45 |
0.45 |
0.45 |
|
Equilibrator |
Mpa |
0.49 |
0.55 |
0.55 |
0.55 |
0.55 |
0.55 |
0.55 |
0.55 |
0.5 |
|
Cushion |
Ejecting/pressi-ng force(each) |
KN |
200 |
60/400 |
60/400 |
76/500 |
76/500 |
76/500 |
150/1000 |
150/1000 |
180/1250 |
|
stroke |
mm |
100 |
150 |
150 |
200 |
200 |
200 |
250 |
250 |
250 |
|
number |
pc |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
Main motor power |
KW |
18.5 |
30 |
30 |
45 |
45 |
55 |
55 |
55 |
75 |
|
Overall dimension(FBxLR) |
mm |
2325x3380 |
2260x3000 |
2260x3000 |
2910x3330 |
2810x3115 |
2910x3330 |
3900x3300 |
3900x330 |
3250x4300 |
|
Height above floor |
mm |
5500 |
6160 |
6160 |
6730 |
6780 |
6730 |
7700 |
7700 |
8300 |
|
Total weight |
kg |
24000 |
35000 |
37000 |
54000 |
51000 |
56000 |
98000 |
100000 |
125000 |
Shandong Gaomi Gaoduan Machinery Co., Ltd located in Gaomi City, Shangdong Province. It has superior tranportation, just about 70km to Qingdao Airport, Weifang Airport, Qingdao Port.
Shandong Gaomi Gaoduan Machinery Co., Ltd was established in 1952. It covers an area of 326000 square meter, of which the building area is 150 tousand quare meter. The factory have general assets of 310 million, 868 sets of manufacturing equipments. It has more than 2100 staffs.
Shangdong Gaomi Gaoduan Machinery Co., Ltd has two independent plant, Machine Manufacturing Company and Auto-mobile Parts Manufacturing Company. It has Office Department, Management Department, Finance Department, Human Resource department, Quality Controll Department, Import&Export Department.
Shandong Gaomi Gaoduan Machinery Co., Ltd specialized in manufacturing mechanic presses, hydraulic press, CNC punching presses, automoblile part. The company has passed ISO9001, ISO/TS16949 international quality management system. 'Gaoduan' brand was choosed as famous trademark of Shandong province and China. With our more 60 years experience and high quality machines we enjoyed well reputation in the mechanic industrial in China and all over the world.
