| Deformation Temperature: |
Isothermal Forging |
| Molding Technics: |
Pressure Casting |
| Molding Style: |
Straightener |
| Casting Method: |
Fost |

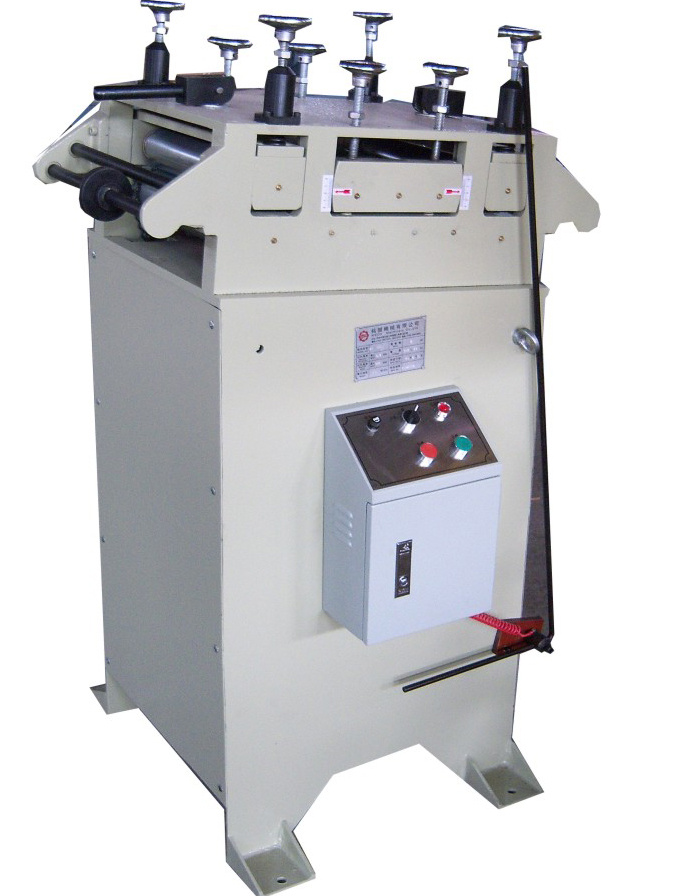

Product Description
Model: ML
Material width: 150-1600mm
Material thickness: 0.35-3.2mm
Straightening speed: 15m/min
Feature
1. Hard-chrome-plated Roller, less wear, long service life
2. Suitable for straighten different metal sheets with smooth surface.
3. Adopt Japan magnetic contactor and electronic components, less malfunction.
4. This machine will get the dramatic effect if use together with MA, auto reel.
5. Strengthener's rolls can be easily clean by its opening mechanism design.
.
Specification
Model: ML-150, ML-200, ML-300, ML-400, ML-500, ML-600, ML-700, ML-800, ML-1000, ML-1300, ML1600
Material width (mm): 150, 200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600
Material thickness (mm): 0.35-3.2, 0.6-2.2
Feeding speed: 15m/min
Shenzhen Mingcheng Mechanism Co., Ltd., is specialized in R&D, manufacturing, sales of press automatic peripheral equipment for 12 years. Our main products are NC precision leveler & feeder(3 in 1), straightener and feeder (2 in 1), nc zigzag air feeder line series, muti-process transfer robot for press, cut to length line, slitting line, nc feeder, machanical roll feeder RF series, cam drive feeder, high speed straightener, double head uncoiler and so on. Suit for processing all kinds of copper, aluminium, iron stock coil and sheet material thickness from 0.1mm-8mm, width from 10mm-1700mm. Our products are applied in auto, motor, electric appliance, electronics, furniture hardware, building materials. Our clients are byd, galanz, midea welling, broad-ocean, crc logic, dmegc, ssml, iao(Japan), SANYO, colson caster(USA), Xiamen hunterdouglas.
