| Prod Model: |
MC12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Composition: |
Machine |
| Type: |
Electromagnet |
| Installation: |
Horizontal |
| Current: |
DC |
| Cooling Method: |
Forced Air-Cooled |
| Automation: |
Automatic |
| Magnetic Source: |
Electromagnetic |
| Magnetic Field Strength: |
Strong |
| Cylinder Number: |
Multi-Cylinder |
| Usage: |
Separation |
Product Description

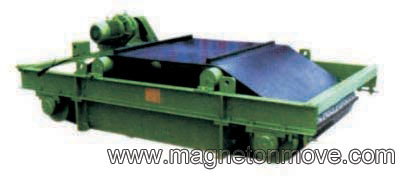

Self-discharge magnetic Separator /magnetic separator/electric magnetic separator
General Description
1. Self-discharge electro magnetic separator is designed for long term operating shift provided with self-discharge function and semi-spheretic field. It produce almost the same magnetic field along its width(in size E). Thus, it suitable for removing the magnetic tramp iron anfd casting head from the molding sand. The empty cans and iron sheet and ash furnace, the magnetic trump iron from furnace slag particles.
2. MC12 self discharge magnetic separator installed with continuous operating trump iron discharging conveyor which helps to throw the magnetic materials into the iron collection tray. It is moving the magnetic iron particles from the bed of the material and materials under bigger granularity such as ores, coals, hard cokes, limestone and so on...
| Model | T (mm) Erection Height | Belt Width (mm) | Voltage (V) | Power (kw) | Overall Dimension (mm) | Driven Power | Mass | Commutation Controlling Unit |
| A | B | C | D | G | H | I | (kw) | (kg) |
| MC12-5060L | 160 | 400 | 110 | 1.03 | 2300 | 1330 | 1100 | 914 | 710 | 850 | 720 | 1.5 | 1074 | SSTM-1.5D1-D |
| MC12-6070L | 170 | 500 | 110 | 1.4 | 2400 | 1400 | 1150 | 1068 | 860 | 928 | 720 | 1.5 | 1074 |
| MC12-7080L | 220 | 600 | 110 | 1.8 | 2550 | 1250 | 1250 | 1120 | 915 | 1000 | 755 | 1.5 | 1330 | SSTM-3.1D1-D |
| MC12-8090L | 250 | 650 | 110 | 2.6 | 2750 | 1600 | 1360 | 1270 | 1065 | 1100 | 782 | 2.2 | 1470 |
| MC12-90105L | 250 | 800 | 110 | 2.9 | 2900 | 1770 | 1465 | 1480 | 1165 | 1200 | 768 | 2.2 | 2000 |
| MC12-110130L | 310 | 1000 | 220 | 4.2 | 3200 | 2000 | 1590 | 1680 | 1375 | 1400 | 782 | 2.2 | 2700 | SSTM-6.2D1-D |
| MC12-130145L | 350 | 1200 | 220 | 5.8 | 3460 | 2310 | 1680 | 1853 | 1584 | 1650 | 886 | 4 | 4200 |
| MC12-150175L | 410 | 1400 | 220 | 8.2 | 3800 | 2620 | 1850 | 1990 | 1780 | 1920 | 945 | 4 | 6020 | SSTQ-9.3D1-D |
| MC12-165190L | 450 | 1600 | 220 | 9.8 | 3850 | 2700 | 1950 | 2250 | 1930 | 1900 | 1050 | 4 | 8260 | SSTQ-12D1-D |
| MC12-180210L | 490 | 1800 | 220 | 11.6 | 4400 | 3000 | 2100 | 2420 | 2087 | 2100 | 1072 | 5.5 | 7900 |
| MC12-230230L | 550 | 2000 | 220 | 22.5 | 4600 | 3400 | 2250 | 3000 | 2700 | 2100 | 1320 | 5.5 | 15500 | SSTQ-25D1-D |
| MC12-250250L | 550 | 2200 | 220 | 25 | 4800 | 3200 | 2150 | 3200 | 3000 | 2300 | 1380 | 7.5 | 17500 |
| MC22-5035L | 140 | 400 | 110 | 1.02 | 2100 | 1100 | 1000 | 920 | 760 | 700 | 793 | 1.5 | 750 | SSTM-1.5D1-D |
| MC22-7045L | 190 | 600 | 110 | 1.88 | 2200 | 1350 | 1030 | 1120 | 915 | 1100 | 768 | 1.5 | 1250 | SSTM-3.1D1-D |
| MC22-7085L | 200 | 650 | 110 | 2.6 | 2730 | 1775 | 1230 | 1148 | 915 | 1330 | 760 | 2.2 | 2150 |
| MC22-8060L | 230 | 650 | 110 | 2.9 | 2360 | 1410 | 1080 | 1370 | 1165 | 850 | 780 | 2.2 | 1920 |
| MC22-11075L | 290 | 800 | 220 | 3.8 | 2980 | 1985 | 1450 | 1390 | 1375 | 1300 | 777 | 2.2 | 2660 | SSTM-6.2D1-D |
| MC22-130140L | 400 | 1200 | 220 | 6.8 | 3650 | 2700 | 1700 | 1800 | 1575 | 1320 | 860 | 4 | 6100 | SSTQ-9.3D1-D |
| MC22-150110L | 370 | 1400 | 220 | 7 | 3250 | 2050 | 1550 | 2000 | 1775 | 1400 | 970 | 4 | 6900 |
For more detail info, please feel free to visit our website or inquire us at any of your convenience.
www.magnetequip.com
