Prod Model: |
63*1000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Flange |
Material: |
Plastic |
Head Code: |
Hexagon |
Connection: |
Welding |
Product Description

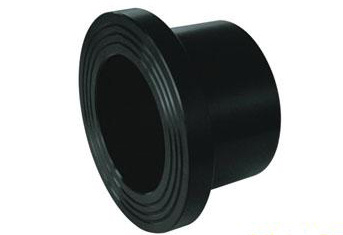

Material: High quality PE80 or PE100
Sizes:63*1000
Color: Black, blue or others on request
Advantage:
Non-toxic, no heavy metal additives, would not be covered with dirt or contaminated by bacterium.
Advantage:
Lower installation costs
Higher flow capacity
Longevity; 50 years under pressure use
Recycle and environment-friedly
specifications | SDR11 | SDR17 |
L mm | D mm | D1 mm | H mm | L mm | D mm | D1 mm | H mm |
63 | 150 | 102 | 75 | 14 | | | | |
75 | 150 | 122 | 89 | 15 | | | | |
90 | 150 | 138 | 105 | 15 | 150 | 138 | 105 | 15 |
110 | 150 | 158 | 125 | 15 | 150 | 158 | 125 | 15 |
125 | 150 | 158 | 132 | 22 | 150 | 158 | 132 | 22 |
140 | 150 | 188 | 155 | 24 | 150 | 188 | 155 | 24 |
160 | 160 | 212 | 175 | 24 | 160 | 212 | 175 | 24 |
180 | 160 | 212 | 180 | 30 | 160 | 212 | 180 | 26 |
200 | 175 | 268 | 232 | 32 | 175 | 268 | 232 | 28 |
225 | 180 | 268 | 235 | 32 | 180 | 268 | 235 | 28 |
250 | 200 | 320 | 285 | 35 | 200 | 320 | 285 | 30 |
280 | 200 | 320 | 291 | 35 | 200 | 320 | 291 | 30 |
315 | 210 | 375 | 335 | 35 | 210 | 375 | 335 | 30 |
355 | 165 | 430 | 373 | 40 | 165 | 430 | 373 | 32 |
400 | 185 | 482 | 427 | 46 | 185 | 482 | 427 | 34 |
450 | 175 | 585 | 514 | 50 | 175 | 585 | 514 | 40 |
500 | 180 | 585 | 530 | 50 | 180 | 585 | 530 | 40 |
560 | 185 | 685 | 615 | 56 | 185 | 685 | 615 | 50 |
630 | 185 | 685 | 642 | 56 | 185 | 685 | 642 | 50 |
710 | - | - | - | - | 185 | 800 | 737 | 56 |
800 | - | - | - | - | 185 | 905 | 840 | 56 |
900 | - | - | - | - | 185 | 1005 | 944 | 56 |
1000 | - | - | - | - | 185 | 1100 | 1047 | 56 |
Sichuan Senpu Pipe Co., Ltd. is a share enterprise that specializes in the R&D, production, sale and engineering installation of new-type plastic pipes and fittings. We have established two factories in Deyang and Tianjin. We are one of the largest manufacturers and suppliers of PE pipes and fittings in China. Furthermore, our company owns 26 pipe production lines that are advanced at home and abroad, as well as 29 sets of fitting production equipments. Our production capacity reaches more than 100 thousand tons.
Our main products consist of 7 kinds of pipes and fittings, including PE pipes for water supply; buried PE pipes for the supply of gaseous fuels; three kinds of structural-wall pipes used for buried drainage supply; such as PE double-wall corrugated pipes, PVC double-wall corrugated pipes and metal reinforced PE spirally corrugated pipes; PP-R pipes for hot and cold water installation; C-PVC cable sleeves and PE pipes for coal mining. The diameter ranges from 20mm to 2000mm, covering the overall specifications listed in the national standards of the products.
We have obtained successively ISO9001 quality management system certification, ISO10012 measuring inspection system certification, ISO14001 environmental management system certification, and ISO14024 environmental labeling product certification, as well as health safety management system certification, pressure vessel component safety certification and mining pipe product safety certification. Our products were honored the titles of the "National Products Exemption from Quality Surveillance Inspection", "Chinese Famous Trademark", and "Sichuan Famous Brand Products".
If you are interested in our products, please do not hesitate to contact us for further information.
