| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR |
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | V750F |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: | Electric |
| Structure: | Single-stage Pump |
| Theory: | Centrifugal Pump |
| Type: | Blade Pump |
| Application: | Sewage Pump |
| Material: | Stainless Steel |
| Performance: | Drainage Pump |
| Industry: | Garden Pump |
APPLICATION
Applied to pumping such liquid which is not clean, with solid matter or frictional matter, low viscous, lcorrosive, crystallizable, chemically neutral and close to water. Such as:
1. domestic wastewater treatment system
2. School,hospital,community wastewater treatment system
3. Irrigation and gardening
Features
1. 100% copper wire
2. Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision
3. Double sides mechanical seal graphite&ceramic
4. Demagnetization of stainless steel nuts
5. Anti-rust treatment castings and electrophoresis
6. New testing equipment

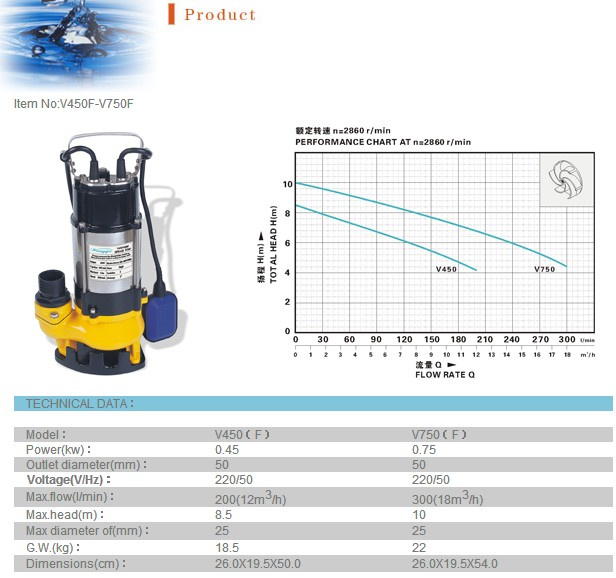

TECHNICAL DATA
| Name | Pump body | Impeller | Motor housing | Motor wire | Michanical seal | Shaft | Ball bearing | ||
| Material | cast iron | nylon& fibre | stainless steel | copper | ceramic & graphite | 2Gr13 | China | ||
| Model | Rated power | Outlet | Rated flow | Max flow | Rated head | Max head | G. W | Packing | |
| (KW) | (HP) | (mm) | (m3/h) | (m) | (kg) | Dimension | |||
| (mm) | |||||||||
| V180F | 0.18 | 0.24 | 40/32/25 | 5 | 8 | 5 | 7 | 8.5 | 185*180*365 |
| V250F | 0.25 | 0.33 | 40/32/25 | 5 | 9 | 5 | 7.5 | 9.5 | 185*180*385 |
| V450F | 0.45 | 0.6 | 50 | 5 | 12 | 7 | 8.5 | 18.5 | 260*195*505 |
| V750F | 0.75 | 1 | 50 | 10 | 18 | 10 | 12 | 21.5 | 260*195*540 |
| V1100F | 1.1 | 1.5 | 50 | 16 | 20 | 6 | 9 | 24 | 270*225*560 |
| V1500F | 1.5 | 2 | 40 | 6 | 16 | 22 | 24 | 27 | 590*350*250 |
| V2200F | 2.2 | 3 | 80 | 30 | 42 | 11 | 17 | 33 | 590*350*250 |
