| Prod Model: |
ball mill |
| Markets: |
South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia |
| Color: |
as Your Request |
| Certification: |
ISO9001: 2008 |
| Warranty: |
12 Months |
| Installation: |
Supply Thchnical Support |
| Delivery Time: |
15-45 Days |
| Diameter: |
900-3200mm |
| Mining Object: |
Petroleum Drilling and Production Equipment |
| Motor Type: |
AC Motor |
| Condition: |
New |
| Type: |
Ore Grinder |
Product Description
Rock grinder, wet grinder, ore grinder, grinding mill
High efficiency continuous rock grinder application:
High efficiency continuous ball mill are widely used for the cement, stone, ore field, include of the glod, iron, cooper, manganese, and so on, the ball mill biggest faction is grinding the raw ore that through crushed ore. The grinder input size is less than the crusher. Ball-Mill is widely used in many industries, such as black metal, nonferrous metal, mining section
High efficiency continuous rock grinder working principle:
Its inlet and outlet end can be completed with dynamic sealing device which is invented soly by our company, this can make sure that there is no power leaking.
The inlet and outlet end can be completed with feeding machine to make sure that materials move fluently.
Structural feature of rock grinder:

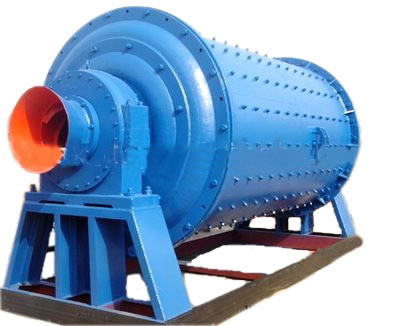

Ball mill is a principle and cylindrical revolving device, and belongs to external gear-driving ball mill. The materials are transported by feeder, and gets into mill chamber through hollow screw axis equably, and there is lining plate and steel balls in the chamber. When the cylinder body goes round and round, the steel ball is taken to certain height, then falls down, and the materials are struck and grinded heavily. The above action repeats constantly till the size of materials reaches the required fineness. The powdery materials are discharged through discharge grate plate, and the milling work is over.
Ball mill mainly consists of feeding part, discharging part, gyre part, transmission part (decelerated machine, small transmission gear, motor, electric control) and so on. The hollow axis adopts cast steel, the lining plate can be replaced, the big gyre gear is made of forging rolling gear, and there is lining plate in the cylinder body, which has favorable abrasion resistance. The ball mill has the features of stable running and reliable working.
Model |
Rotate Speed
(r/min) |
Grinding Media Weight
(t) |
Feeding size
(mm) |
Discharge size
(mm) |
Output(t/h) |
Motor Power
(kw) |
Weight
(t) |
900× 1800 |
36-38 |
1.5 |
≤ 20 |
0.075-0.89 |
0.65-2 |
18.5 |
4.6 |
900× 3000 |
36 |
2.7 |
≤ 20 |
0.075-0.89 |
1.1-3.5 |
22 |
5.6 |
1200× 2400 |
36 |
3 |
≤ 25 |
0.075-0.6 |
1.5-4.8 |
30 |
12 |
1200× 3000 |
36 |
3.5 |
≤ 25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
1200× 4500 |
32.4 |
5 |
≤ 25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
1500× 3000 |
29.7 |
7.5 |
≤ 25 |
0.074-0.4 |
2-5 |
75 |
15.6 |
1500× 4500 |
27 |
11 |
≤ 25 |
0.074-0.4 |
3-6 |
110 |
21 |
1500× 5700 |
28 |
12 |
≤ 25 |
0.074-0.4 |
3.5-6 |
130 |
24.7 |
1830× 3000 |
25.4 |
11 |
≤ 25 |
0.074-0.4 |
4-10 |
130 |
28 |
1830× 4500 |
25.4 |
15 |
≤ 25 |
0.074-0.4 |
4.5-12 |
155 |
32 |
1830× 6400 |
24.1 |
21 |
≤ 25 |
0.074-0.4 |
6.5-15 |
210 |
34 |
1830× 7000 |
24.1 |
23 |
≤ 25 |
0.074-0.4 |
7.5-17 |
245 |
36 |
2100× 3000 |
23.7 |
15 |
≤ 25 |
0.074-0.4 |
6.5-36 |
155 |
34 |
2100× 4500 |
23.7 |
24 |
≤ 25 |
0.074-0.4 |
8-43 |
245 |
42 |
2100× 7000 |
23.7 |
26 |
≤ 25 |
0.074-0.4 |
8-48 |
280 |
50 |
2200× 4500 |
21.5 |
27 |
≤ 25 |
0.074-0.4 |
9-45 |
280 |
48.5 |
2200× 6500 |
21.7 |
35 |
≤ 25 |
0.074-0.4 |
14-26 |
380 |
52.8 |
2200× 7000 |
21.7 |
35 |
≤ 25 |
0.074-0.4 |
15-28 |
380 |
54 |
2200× 7500 |
21.7 |
35 |
≤ 25 |
0.074-0.4 |
15-30 |
380 |
56 |
2400× 3000 |
21 |
23 |
≤ 25 |
0.074-0.4 |
7-50 |
245 |
54 |
2400× 4500 |
21 |
30 |
≤ 25 |
0.074-0.4 |
8.5-60 |
320 |
65 |
2700× 4000 |
20.7 |
40 |
≤ 25 |
0.074-0.4 |
12-80 |
400 |
94 |
2700× 4500 |
20.7 |
48 |
≤ 25 |
0.074-0.4 |
12-90 |
430 |
102 |
3200× 4500 |
18 |
65 |
≤ 25 |
0.074-0.4 |
According to the process condition |
800 |
137 |
