| Prod Model: |
flexible stainless steel shaft |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter Range: |
3mm-30mm |
| Length Range: |
Less Than 3000mm |
| Load: |
Drive Shaft |
| Stiffness & Flexibility: |
Flexible Shaft |
| Axis Shape: |
Straight Shaft |
| Shaft Shape: |
Real Axis |
| Material: |
SUS300 Series Stainless Steel |
| Journal Surface Roughness: |
Ra 0.2-0.8 Similar to Mirror |

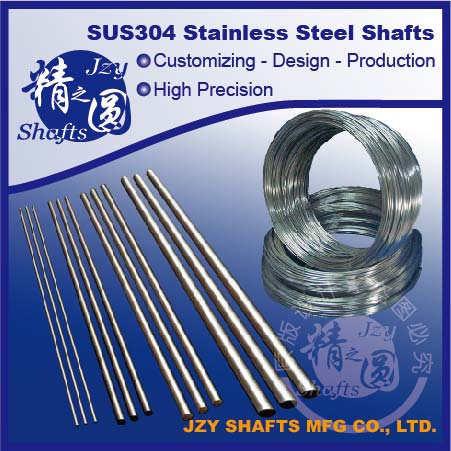

Product Description
JZY Flexible Shafts Features:
1. SUS300 series stainless steel, rust-proof.
-- SUS304, SUS316, SUS321, etc., customized is welcome.
2. High Precision of quality.
-- Tolerance can be customized to POSITIVE or NEGATIVE tolerance.
3. Roughness: 0.05, similar to mirror surface.
--Much durable & stable.
Production range:
A. Diameter: 3mm - 30mm
B. Length: 3000mm or less
Standards & Specification as the following sheet:
| JZY SHAFTS SPEC. & STANDARD |
| Type | Hardening Shafts Series | Flexible Shafts Series |
| Solid Shafts | Solid Shafts | Hollow Shafts |
| Material | SUS400-Series Stainless Steel | SUS300-Series Stainless Steel |
| Surface Hardness | Our Standard: HRC 56-58 | -------- |
| Customized Range:HRC 30-58 |
| Hardening Depth | Φx10% ~Φx20%(mm) |
Outer Diameter
(mm) | Diameter Tolerance | Ovality
(mm) | Surface Roughness | Straightness
(mm) | Length
(mm) |
g6 standard
(mm) | Customized (mm) |
| Φ3 | -0.002 | +0.005~0
or
0~-0.005 | +0.001~ 0
or
0~-0.001 | 0.05 | ≤0.02mm/m | ≤3000 |
| -0.008 |
| Φ3-Φ6 | -0.004 |
| -0.012 |
| Φ6-Φ10 | -0.005 |
| -0.014 |
| Φ10-Φ18 | -0.006 |
| -0.017 |
| Φ18-Φ24 | -0.007 |
|
| Φ24-Φ30 | -0.02
|
Our Full Service:
Customize - Design - Sample - Produce - Inspection - Packing - Delivery.
JZY Shafts Mfg Co., Ltd, professional manufacturer about Hardened & Flexible Stainless Steel Shafts.
Our facilities & technology:
1. After studying and researching in Flexible & Hardened Linear Shaft ranges, JZY professional process & machines were developed by ourselves.
2. JZY's linear shafts, HIGH-PRECISION + ROUGHNESS IS SIMILAR TO MIRROR.
Excelent equipmets depend on components good quality & high stability.
JZY shafts are your best choice!
Jiangmen JZY Shafts Co., Ltd (JZY Shafts), is located in prosperous Jiangmen City, Guangdong Province, specialized in manufacturing Stainless Steel Hardening Linear Shafts, including 300 & 400series stainless steel hardening/ flexible/ solid/ hollow linear shafts. Our products have good fame and deeply favored by customers.
After studying and researching in Flexible & Hardened Linear Shaft ranges, JZY professional & high-precision Surface Hardening Machines were developed by ourselves, with our strict & advanced technology, we made breakthrough innovation that stainless steel (400 series) surface hardening reaches or exceeds HRC60, completely solved this problem in hardened stainless steel shaft ranges.
Besides, JZY Cryogenic Facilities, one of our newly self-developed machines, effectively improving products' precision and stability, completely eliminating materials' residual stress, and enhancing linear shafts' wear-resistance more than 300%.
Machines' lifetime can be effectively extended by using high quality linear shafts.
As the ahead of hardening linear shafts manufacturer, has self-developed own professional facilities and exclusive technology, quality and precision of our products are guaranteed!
JZY Stainless Steel Linear Shafts are your best choice in various automatic machines!
