Swcd Series-Short Designs Cardan Shaft
| Price: |
US $ 80-150/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
SWCD Series-Short Designs Cardan shaft |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
Orange Black Yellow |
| OEM/ODM: |
Available |
| Load: |
Drive Shaft |
| Stiffness & Flexibility: |
Stiffness / Rigid Axle |
| Axis Shape: |
Straight Shaft |
| Shaft Shape: |
Hollow Axis |
Product Description

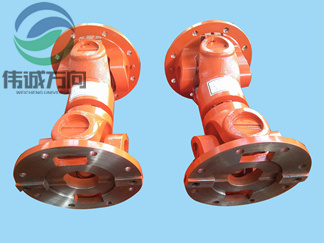

SWCD Series-Short Designs

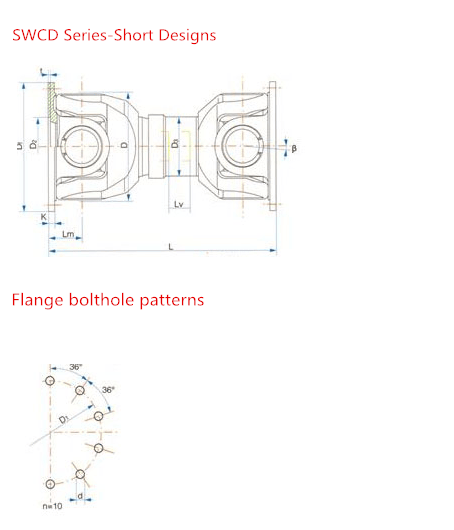

Data and Sizes of SWCd Series Universal Joint CouplingsDesign
Data
Item | SWCD215 | SWD250 | SWD285 | SWD315 | SWD350 |
| L | 415 | 495 | 545 | 600 | 688 |
| LV | 40 | 40 | 40 | 40 | 40 |
| m(kg) | 60 | 98 | 120 | 169 | 256 |
| Tn(kN·m) | 25 | 35.5 | 40 | 63 | 90 |
| Tf(kN·m) | 12.5 | 18 | 20 | 31.5 | 45 |
| β(°) | 5 | 5 | 5 | 5 | 5 |
| D | 215 | 225 | 250 | 285 | 315 |
| Df | 275 | 305 | 348 | 360 | 405 |
| D1 | 248 | 275 | 315 | 328 | 370 |
| D2(H9) | 140 | 140 | 175 | 175 | 220 |
| D3 | 114 | 140 | 152 | 168 | 194 |
| Lm | 68 | 80 | 90 | 100 | 108 |
| k | 15 | 15 | 18 | 18 | 22 |
| t | 4.2 | 5.2 | 6.2 | 6.2 | 6.8 |
| n | 10 | 10 | 10 | 10 | 10 |
| d | 15 | 17 | 19 | 19 | 21 |
1. Notations: L=Standard length, or compressed length for designs with length compensation; LV=Length compensation; M=Weight; Tn=Nominal torque(Yield torque 50% over Tn); TF=Fatigue torque, I. E. Permissible torque as determined according to the fatigue strengthUnder reversing loads; β=Maximum deflection angle; MI=weight per 100mm tube2. Millimeters are used as measurement units except where noted; 3. Please consult us for customizations regarding length, length compensation andFlange connections. (DIN or SAT etc. )
