| Prod Model: |
TDY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Plate Ultrasonic Tester |
Product Description

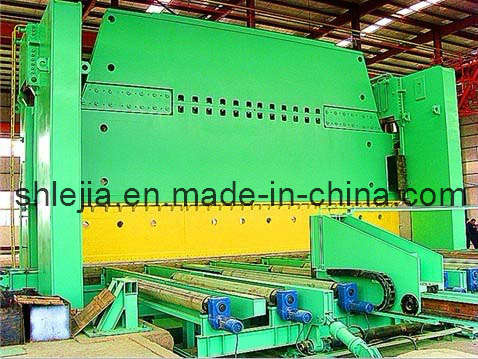

The machine is one of the five main machines for JCOE type LSAW plant, which consists of uprightS, oil cylinder unit, RAM, oil tank, beam, working table, crowning device, tools, hydraulic proportional servo system and CNC control system. The press has 3 axis for main machine and over 5 axis for auxiliary mechanism. The auxiliary mechanism includes longitudinal transporting device, side stopper, front and rear manipulators, front and rear supporters and side discharging device.
The CNC control is realized with Delem, Holland or Cybelec, Switzerland. The crowning device on working table can compensate the total elastic deformation of working table and RAM under different forces to ensure the same bending angles both at ends or in the middle of workpiece.
The hydraulic system adopts the electrical-hydraulic proportional system of BOSCH, Germany, which has high accuracy in synchronism, and strong anti-eccentric-loading capacity.
Model
Name |
Double oil
cylinders |
Double oil
cylinders |
Double oil
cylinders |
5 oil cylinders |
6 oil cylinders |
TDY37K-2500/
1120× 13000 |
TDY37K-3200/
1120× 13000 |
TDY37K-3600/
1120× 13000 |
TDY37K-5000/
1730× 14000 |
TDY37K-5200/
880× 14000 |
|
Nominal pressure(KN) |
25000 |
32000 |
36000 |
50000 |
66000 |
|
Working table length (mm) |
14000 |
14000 |
14000 |
14000 |
14000 |
|
Working table width (mm) |
1120 |
1120 |
1300 |
1730 |
1730 |
|
Side throat depth (mm) |
1800 |
1800 |
1800 |
1800 |
1800 |
|
Ram stroke (mm) |
400 |
400 |
400 |
600 |
600 |
|
Max. open height (mm) |
2310 |
2310 |
2590 |
2910 |
3000 |
|
Quantity of mainoilcylinder (No. ) |
2 |
2 |
2 |
5 |
6 |
|
Approaching speed mm/s |
60 |
60 |
60 |
60 |
40 |
|
Working speed mm/s |
4 |
6 |
6 |
4 |
4 |
|
Returning speed mm/s |
45 |
55 |
55 |
54 |
30 |
|
power of main motor Kw |
110 |
2× 90 |
180 |
460 |
600 |
|
Control axis axis |
3 |
5 |
5 |
10 |
12 |
|
Overall dimensions(L× W× H) mm |
14780× 5100× (8290 upfloor+4190 under-floor ) |
14774× 5900× (8500 upfloor+5000 under-floor ) |
16632× 6200× (8475 upfloor+5400 under-floor ) |
17000× 15100× (9730 upfloor+4320 under-floor ) |
17000× 16100× (10800 upfloor+5200 under-floor ) |
|
Weight kg |
42800 |
51500 |
58500 |
780000 |
960000 |
Shanghai Lejia CNC Machine Co., Ltd. is a national new technological enterprise and national important "Torch Plan" implementation organization with integration of research and development, machinery manufacturing, tools designing and building, sales and import and export authority rigths. We are professional manufacturing company holding many domestic and international certificates.
Manufacture ranges: CNC Press brake Machine, shearing machine, CNC-Punch, and Slotting Machine, Rolling bending machine, Straightening, Unrolling, Shearing Production Line and normal Forging Machinery. And pressbrake tools. Shearing blade. Punch tools, etc. The products are awarded highly by the clients with the fame of those precise, reliable and high qualified products produced by the state -in- art manufacturing techniques, which are of reasonable price and excellent after-sale-service.
Our Company is dedicated to contribution for nation by sustainable promotion and improvement in the field of CNC machinery, CNC Machinery Tools and-Cutter-localization.
