| Prod Model: |
Vortex-pipe |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tensile Strength: |
Min 420 N/Mm² |
| Elongation: |
Min. 5% |
| Yield Strength: |
Min. 300n/Mm² |
| Hardness: |
Max. 250hb |
| Density: |
7.05 Ton/M³ |
| Type: |
Ductile Iron Pipes |
| Usage: |
Water Supply |
| Section Shape: |
Round |
| Certification: |
EN545 |
| Shape: |
Round |
| Gasket Material: |
EPDM |
Product Description
1), Product Information

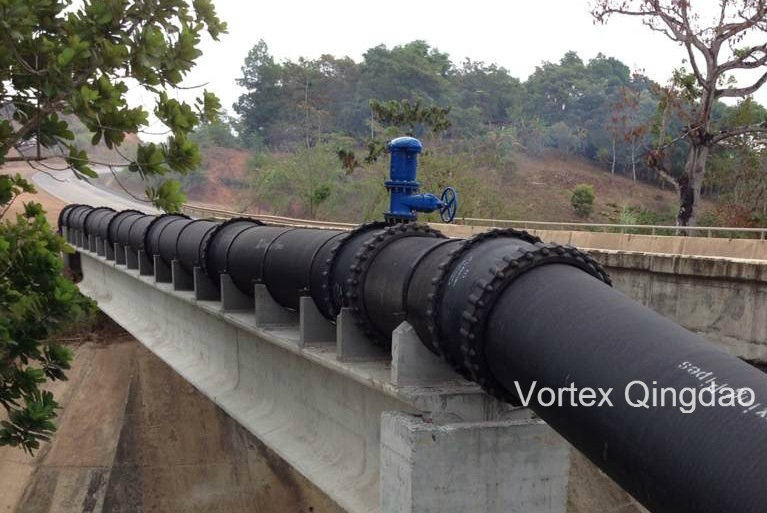

The ductile iron pipe manufactured by vortex are mainly used for transferring the drinkable water, waste water and for irrigation.
The diameter is from DN80-DN2000, K8/K9/K10/K12, Tyton socket and spigot, the standard length is 6m.
2), Standard
Conform to ISO2531/EN545/EN598/4179/8179
3), Material
Ductile Iron GGG500-7&400-12 or ASTM-A-536grade 80-55-06
4) coating
Metallic zinc spray with Bituminous Coating (Outside) Cement mortar lining (Inside). Epoxy coating available upon request.
5) joint method available
Push-on
6), Process
Centrifugal casting
VORTEX Qingdao Co., Ltd., as a big and professional manufactural factory based in Qingdao city Of China, we have three foundries, and our main products are ductile casting iron products water-supplying pipeline field, typical products as below.
Our typical products are as below:
Ductile iron pipe and fitting (Size from DN80 to DN2000),
**** Ductile iron pipe K9/K8/K7/ C class, Socket bend, flanged bend, socket and flanged tee, flanged socket, flange taper, socket taper, blank flange, welding flange, bellmouth.
**** Welding flanged pipe, we have Automatic welding equipment to produce welding flanged pipes and one of best stable welding quality in China.
**** Pipe joint, including Flanged adapters, Couplings, Dismantling joints, Clamp, and stainless steel repair Clamp, all like Viking Johnson design joint with EPDM gasket rubber rings.
**** PVC pipe fittings from DN50----DN630.
**** Loose flange fittings from DN80----DN600.
****Gate valve, Check valve, Butterfly valve, Air valve, Angel valve, Fire hydrant, Extension spindle,
All of them are according to ISO2531/EN545/EN598/AWWA C110/C153. (PN10/PN16/PN25/PN40)
Furthermore, we can supply pipe fittings with Rilsan Nylon power coating(black color) and epoxy resin AKZOL powder coating, so far we are the few supplier of Rilsan Nylon coated fittings.
