| Prod Model: |
ZH Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
1 Year |
| Couler: |
as Customer Demand |
| Core: |
Cold or Hot |
| Main Material: |
Metel |
| Spare Parts: |
Available |
| Test: |
Before Delivery |
| Size: |
Non-Standard |
| OEM: |
Acceptable |
| Design: |
According to Workpiece Specification |
Product Description
Product description

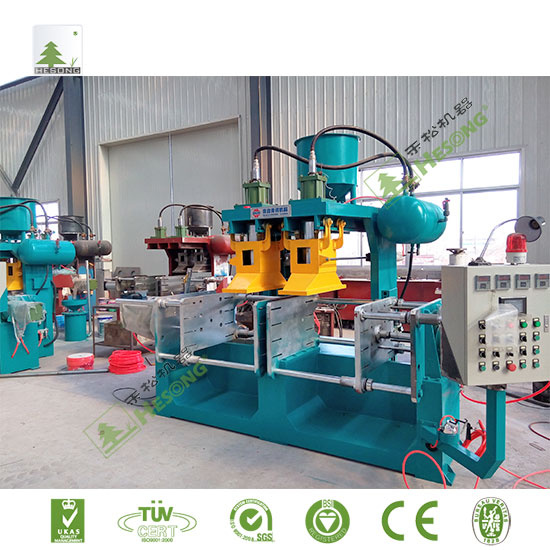

Core shooting machine summary:Core shooting machine so as to save the cost of sand core, sand core capability through good, low gas evolution casting surface is bright and clean, high precision, good mechanical properties etc, and is widely used in automobiles, sewing machines, agricultural machinery, all kinds of valve and tractor industry casting workshop, and be more and more users to accept.This machine can realize the automatic, in a single week to be automatic and manual all kinds of different forms of operation, make it easy operation, low labor strengthhigh productivity smooth operation, low energy consumption, low noise and other advantages, one can see a few devices, is the ideal hot method shell core equipment.core shooting machine parts by lathe bed, shoot sand machine purchasing (mobile shoot head),frame and flip institutions, send sand device, gas control and the electric control system of the part
The advantages of core shooting machine:
(1) it can save the cost of sand core
(2) make the air permeability of sand core good
(3) gas evolution is low
(4) make the casting surface smooth
(5) high precision, mechanical performance is good
The application area of core shooting machine:
They are widely used in all kinds of valve,agricultural machinery industry,automobile, sewing machine, tractor.And by more and more users to accept.
The characteristics of core shooting machine:
(1) machine adopts PLC control
(2) drive mode is pneumatic drive or hydraulic drive, it is according to the customer`s requirements.
(3) Machine can electrical heating ,automatic temperature control
(4) It is full automatic
Technical parameter:
item | unit | ZH9410 |
| moulding maximum size | mm | 1000*800*500 |
| maximum sand core weight | kg | 60 |
| mould assembly process | mm | 400 |
| template file size | mm | 250 |
| template file size | mm | 1100 |
| electric heating power | kg | 35 |
| tracheal diameter | mm | 50 |
| system pressure | mpa | 0.55-0.7 |
| the pressure of sand shooting | mpa | 0.4-0.6 |
The Main Structure
The machine consists of bed,die-set,the skateboard,upper plate,stand column,Shoot barrel,hold-down gear,air-operated system(air source treatment unit,magnetic exchange valve,air cylinder,throttle valve and etc.)and electrical control system.
1. The lathe bed is used steel plate and steel welded structure, and through place stress processing, is the foundation components of the machine.
2. Die set is combining assembly parts,set die set in the middle(according to the contract),left and right side is the moving mold,and two cylinder bearing,guide sleeve,three thro5.Sand cylinder is steel plate and steel pipe welded structure.It consist of shoot cylinder,box,nozzle body,shoot plate and etc.Its function is to move through the horizontal cylinder reciprocating sand and shoot sand core sand through compressed air into hot core box.When shooting sand compaction cylinder barrel will shoot into the sand mold pressing snapping mouth to finish shooting the sand. Automatically reset after the compression cylinder release by spring. Is the main structure for sand and radio core. ugh type guide shaft and a half guide shaft.Guide pillar is used chrome plated,cylinder bearing is equipped with push core rod bearing,cylinder open mold in place, push out the sand core, remove the sand core manually.Structural design used three through type guide shaft and a half guide shaft, increase the stability of equipment,convenient coring and more human.
3. The beam is welded-steel plate construction, its role is to install the sand storage bucket, sand compaction device, inlet and sand barrel moving orbit and the automatic sand gate.
4. Stand column is welded-steel plate construction,its connect the lathe bed and beams,as a whole to connect with the main column.
5. Sand cylinder is steel plate and steel pipe welded structure.It consist of shoot cylinder,box,nozzle body,shoot plate and etc.Its function is to move through the horizontal cylinder reciprocating sand and shoot sand core sand through compressed air into hot core box.When shooting sand compaction cylinder barrel will shoot into the sand mold pressing snapping mouth to finish shooting the sand. Automatically reset after the compression cylinder release by spring. Is the main structure for sand and radio core. Clamping device is combining assembly parts.Its role is to complete compaction and sand shooting action. Pressure head with rubber seals. Sand and fire extinguishers when shooting close to not leak. Finish the sand shooting work successfully.
6. Pneumatic system is the main power to complete the action. It include air source treatment unit,reducing valve,solenoid valve,throttle valve,pressure gage and etc.
7. Shoot sand time, heating time of the equipment has a instrument to display the adjustment time, convenient operation and action is safe and reliable.Hot core box of the heating system is equipped with digital temperature controller, it can be adjusted according to the requirement of the process and control the heating temperature.It ensure the quality of core stability and yield.
Core Shooter Machine Service
1.Reply you in the 24h
2.Reply you in English
3.Design according to technical requirement
4.Special discount and protection of sales are provided to distributor
5.We could do the field test of core shooter for brake disc to show the machine operation and work effect
6.We are manufacture, we could promise the quality and price of Core Shooting Machine
