Product Description

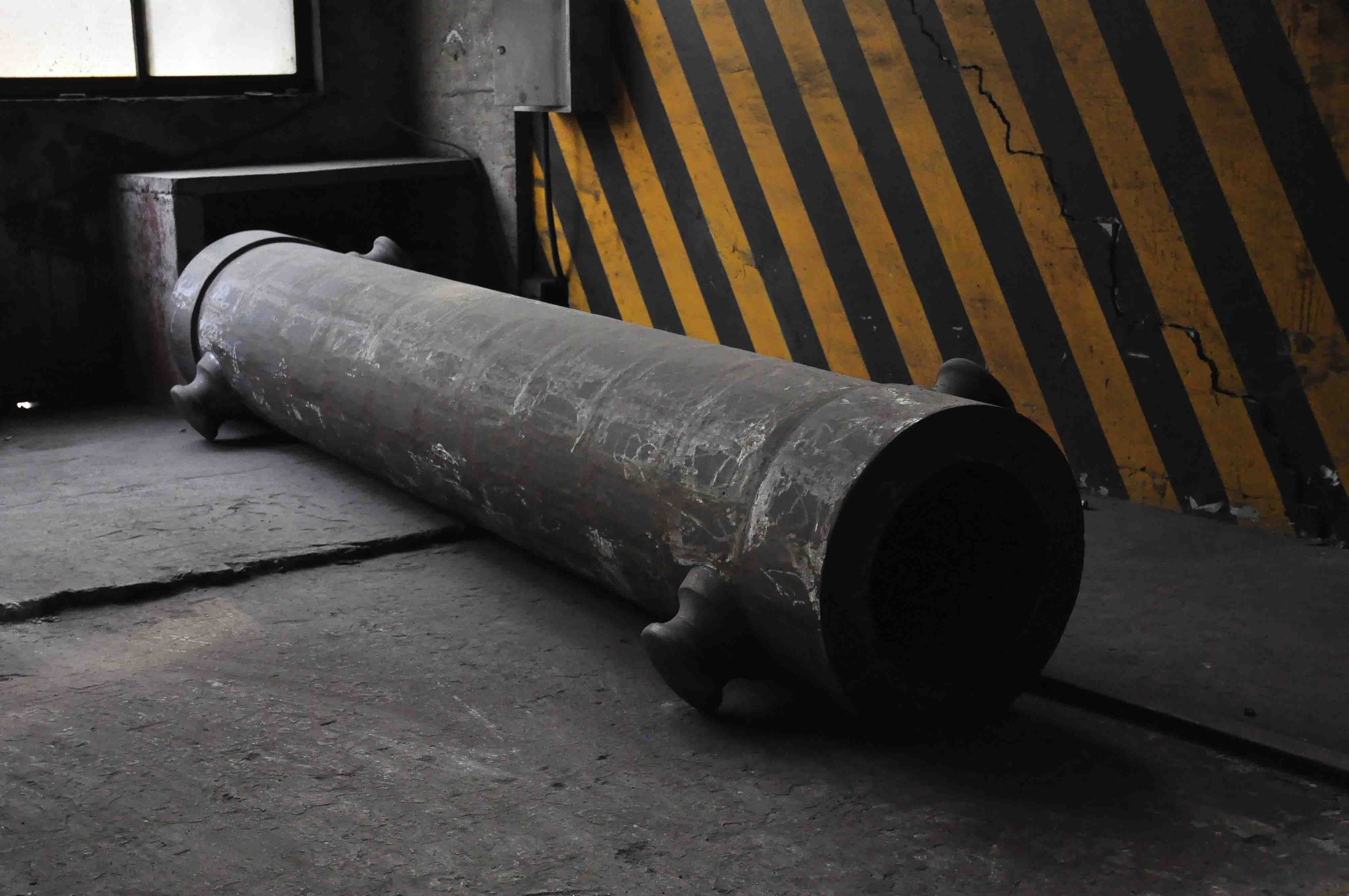

The bipartition ingot mold has two different kinds of ingot mold, one is integration ingot mold and the other one is bipartition ingot mold.
The bipartition ingot mold is one kind of ingot mold. The bipartition ingot mold has 2 different kinds of ingot mold, one is integration ingot mold and the other one is bipartition ingot mold. The specification is from OD60mm to OD450mm, the length is from 2000mm to 4000mm, it can be customized based on customer's requirements.
The bipartition ingot mold is the necessary large equipment for steel-making plant. The inside wall of bipartition ingot mold of our products have very strong wetting ability. The concreted steel ingot adheres to ingot mold and it is not easy to remold. Big scab, crack and oxide skin come easily at the surface of ingot steel after remolding, which lowers the yield of ingot mold.
The main factors to effect the service time of bipartition ingot mold are the material of ingot mold, smelting and casting conditions, quality of working face and so on. After the graphite in cast iron nodulizing and creeping, it prolongs the service time of ingot mold and it reduces the mold consume. Because the worm or spheroidal graphite can reduce O2 permeating into mold, lower the internal oxidation; improve inoxidizability and high-temperature strength. The strength of vermicular graphite cast iron is close to nodular cast iron, and its thermal conductivity is closed to gray pig iron. It has excellent thermal fatigue property, good crazing resistance and good non-deformability, which is very suitable for the ingot mold working condition.
China Special Metal Group Limited (CSM), a supplier of metal material & machinery products, devotes to offer high quality of castings, high-precision machining products, welded fabrications and forgings to valued customers from all over the world. Meanwhile, we offer the design engineering and turnkey project as well.
Our group owns four mainly manufacturing bases. Casting bases in Xinxiang and Yiyang; The welding fabrication base in Wuxi; Special alloy base in Xi'an. Our Shanghai base is the commercial and engineering center. We have our own ISO 9001 certificate.
We have 2 sets of 30 Ton alkaline electric arc furnace; 8sets of transferring ladle with capacity of 35ton, 50tons, and 75tons; 2 sets of baked charter; 4 sets of large heat treatment furnace and the supporting facilities including oxygen generation station, air compression plant, natural gas station, CO station and 22 sets of lifting equipment machines. The lifting capacity reaches 200tons. We own 5 sets of large-scale molding equipment. Meanwhile, we also have the GS1000 vacuum direct reading spectrometer made by OBLF and other inspection equipments like carbon sulfide high-speed analyzer, microcomputer three elements of high-speed analyzer, digital ultrasonic flaw detector, multipurpose magnetic powder flaw detector such as chemical equipment, except that we also own leveraged universal strength tester, SAC thumping machine. Simulating the casting process by the CAE software to ensures the new quality level castings. All the castings are process by arc gouging, carbon dioxide gas gouging, shot-blasted in order to get the surface quality.
Our products include Metallurgical equipment, Cement & Mining machinery. The castings singe weight is up to 120MT. The main products are casting ladles, slag pot, ingot moulds, mill housings, chucks, girth gear & wheel for cement and mining machinery, grinding table and grinding roller for mills, case and covers for pumps, body and beams for all kinds of machine.
