| Prod Model: |

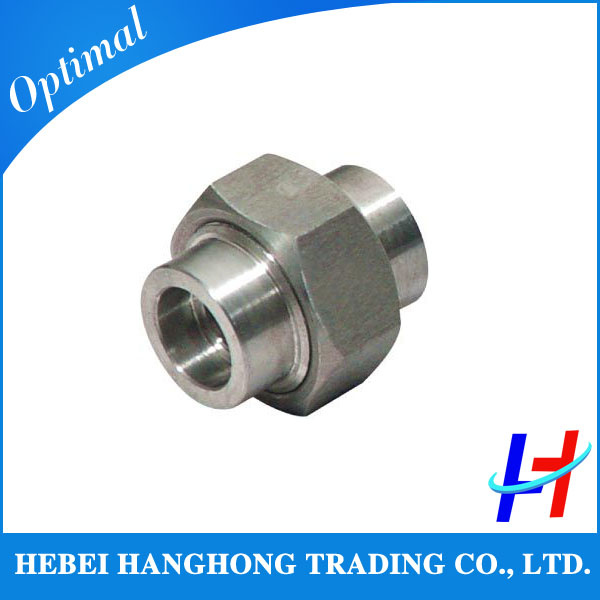

threaded carbon steel ASTM hammer union forging |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Natural |
| Technics: |
Forged |
| Application: |
Petroleum,Gas,Oil, |
| Connection Type: |
Threaded |
| Qualification: |
API , ISO , CE etc |
| Standard About The Products: |
Asme , ANSI , ASTM , JIS , DIN |
| The Way About The Packing: |
in Wooden Cases or as Customers' Require |
| Material: |
Carbon Steel |
| Connection: |
Threaded |
Product Description
Forged Steel Pipe Fitting:
Socket Weld Forged Pipe Fittings, Threaded Forged Steel Pipe Fittings
1. Forged Fittings Type: Elbow, cross, street elbow, tee, coupling, half coupling, cap, plug, bushing, union, outlet,
sage nipple, bull plug, reducer insert, pipe nipple etc.
2. Connection: Socket Welded, Threaded
3. Size Range: 1/8" - 4"(6mm - 100mm)
4. Pressure Rating:
Threaded Forged Pipe Fittings: 2000LBS, 3000LBS, 6000LBS
Socket welding Wog 3000, 6000, 9000 LBS
5. Specifications:
1) Standard: ASME B 16.11, MSS-SP-79\ 83\ 95\97
2) Material: ASTM A105, ASTM A182(F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91).
3) Size of raw material: Dia. 19-85mm round bar.
6. Technology: Forged
7. Packing: Wooden cases or wooden pallet or as per customers requirement
8. Delivery Time: 15 days after order conformed
9. Payment: By T/T or L/C
10. Applications range: Petroleum, chemical, machinery, electric power, shipbuilding,
Papermaking, construction etc
|
size |
1/2"-4" |
|
Type |
hammer union |
|
thickness |
2000Lbs, 3000Lbs,6000Lbs( SCH80, SCH160, XXS) |
|
standard |
ASME B16.11,MSS-SP-97, MSS-SP-79,JIS B2316 |
material
|
Carbon steel(ASTM A105,A350LF2,A350LF3,) |
Stainless steel(ASTM A182 F304, F304L,
F316,F316L,F321,F347,F310F44F51,A276
S31803, A182, F43, A276 S32750,A705
631,632,A961, A484, |
Alloy steel(ASTM A694 F42,F46,F52,F56,
F60,F65,F70, A182 F12,F11,F22,F5,F9,F91,F1ECT) |
|
qualification |
ISO9001:2008 ,ISO 14001 OHSAS18001 , API ,etc |
|
packing |
in wooded cases or as for clients' requirements |
|
application |
Petroleum, chemical, machinery, electric power,
shipbuilding, papermaking, construction, etc |
|
equipment |
Huge Heat treatment furnace,
RW-1500 lenge size radius induction pusher
,CG1600T-DB1200 induction pusher,
A grooving machine,Tube spraying grit treatment,etc |
|
testing |
Dircet reading spectrometer,Mechanical testing,
Super living inspection,
Magentic particle inspection,etc |
Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
For years, our products such as various elbows, bends, tees, crosser, reducers, caps, flanges and other pipe fittings from carbon steel, stainless steel, and low-temperature steel have been broadly uesed in power, oil and gas, petrol-chem, ship-building, heat system, paper-producing, metalllergy and etc., and been exported to and highly valued in Italy, Belgium, America, Chile, Bolivia, the United Arab Emirates, Brazil, South Korea and India etc...
