| Prod Model: |
GT1B9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

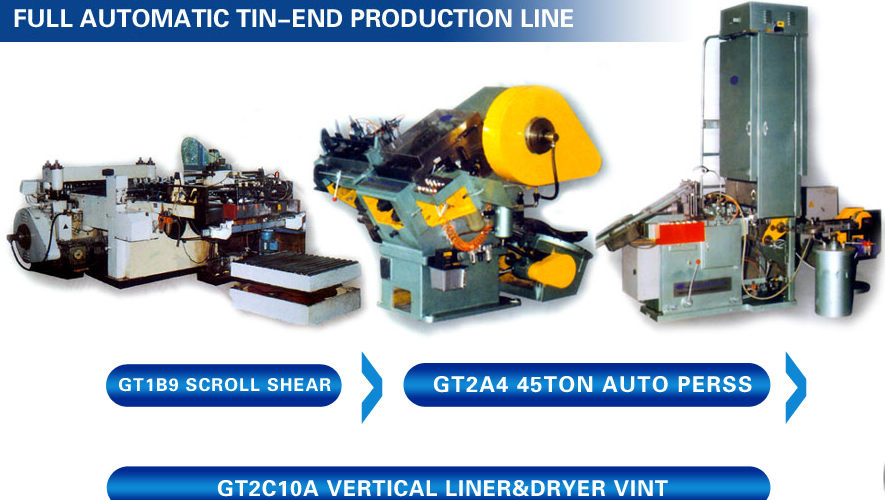

GT1B9 SCROLL SHEAR:
* Blades are made of top quality tool steel, through strict heat treating, compact and durable.
* Side & front gauges adopted to ensure perpendicular & parallel cutting.
* Central lubrication system adopted for the essential sliding parts.
* Safety device makes running more smooth.
* Sheet guide and support are hard chrome plated or adopt nylon to avoid scratch.
* Suitable for tinplate or aluminium.
* Two round cutters are incorporated to cut unwanted sheet side so as to get accurate strip length.
SPECIFICATIONS:
Machine Type GT1B9
Max. Sheet Size 1170x1170mm
Min. Sheet Size 750x508mm
Range of Sheet Thickness 0.4mm(max)
Max. Strip Width 260mm
Strokes Per Minute 75-150 Strokes
Power Required 5.75 KW
Floor Space Overall Height L4520xW2505xH1615mm
Net Weight 8000kgs
GT2A4 45TON AUTO PERSS
This machine is a lid pressing and forming equipment with auto infeeding, auto wasting, auto out feeding and auto lubricating performance, availabe to equipped with dual (or single ) pressing die and mold, dual (or single) curling die and mold, as well as non-round lid die and mold and can-body stretching die and mold. It is also equipped with control and safe protection devices of overload, double sheet infeeding, conveyor and waste jam, safety cover and control level error, air and oil trouble. etc.
SPECIFICATIONS:
Norminal preesing force 45T
Stroke rarge 80MM
Stroke pulse 200shots/min
Max. Stretching depth 30mm
Min infeeding range 40mm
Die hardle diameter 40mm
Max. Close height 197mm
For can diameter Dual die 52- 99 single die 153
Width to be cut 100-240m
Tinplae length to be cut 600-960mm
Power required 4KW
Dimensions 2185X323X1846
Weight 4100kg
GT2C10A VERTICAL LINER&DRYER VINT
This machine is a auto lining and drying equipment with a vertical latex liner and double ways in over dryer, desinged for lining seal later on lid and drying. By replace some different can-size parts, It is available for various sizes of lids. It adopts vertical infrared over and PLC.
SPECIFICATIONS:
Capacity 200-400lids/min
Can diameter 52-99mm
Oven temperature approx 100
Total power approx 13kw
Weight approx 2t
Dimensions 1800X980X2980 mm
Shantou Xinqing Cannery Machinery Co., Ltd. is a professional can making machine company specialized in developing, researching, designing and manufacturing of fully automatic can making machine production line. Our machines produce round and rectangular tinplate can in 3-piece construction for food can, aerosol can, paint can ect.
Our machine line includes following main equipments:
1. Fully automatic sheet slitter,
2. Body blank sheet tranfer system.
3. Fully automatic can body welding machine with round forming function before welding,
3. Outside coating machine, inside powder coating machine or inside liquid spraying coating machine,
4. Induction drying oven,
5. Water chiller,
6. Combination machine(Necking, flanging, beading, seaming).
Our machine features are as follows:
1. Applicable sheet material: Tinplate and Ni-plate
2. Applicable sheet thickness: 0.14mm-0.36mm
3. Production capacity: 30cans/min-700cans/min. (up to now, we are the first one and the only one manufacturer of 700cans/min of NEW DODO-700 in China)
4. Applicable can diameter: D52mm-175mm, D180-380mm(H80-550mm)
5. Applicable can height from 50mm- 320mm.
Our machines are legally trademarked as brand NEW DODO. All our workers are highly skilled technicians and our machine performance is thoroughly tested before shipment. Due to excellent quality and competitive price, our machines have been sold and well praised domestically and internationally. We offer machine installation and after sales service and promise guarantee to customers. We always improve our technology and service to our customers. We aim to be the best can making machine company in the world and in everything we do.
We warmly welcome customers to inquire or visit our company for business negotiation.
