| Prod Model: |
HHW-663 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface: |
Bright |
| Size: |
Customized |
| MOQ: |
1 PCS |
| Lead Time: |
7-10 Days |
| Application: |
Industrial |
| Technique: |
Seamless |
| Grade: |
GR5 |
| Type: |
Titanium Disc |
| Shape: |
Ring |
Product Description

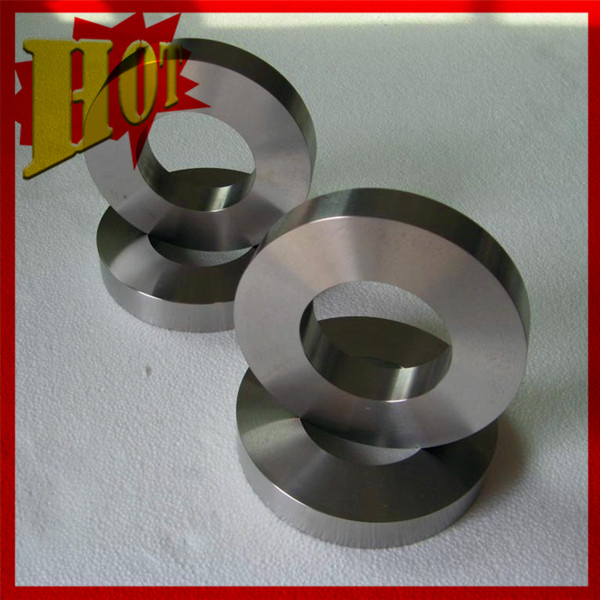

Titanium Alloy Forging Parts with Polished Surface
Products Introduction
| Item | titanium disc/titanium ring |
| titanium disc Grade | GR1, GR2, GR3, GR4, GR5, GR7, GR9, GR12, 6AL4V Eli,Gr23 |
| titanium disc Standard | AMS4928/ ASTMB381 ASTM B348 |
| titanium disc Specification | Titanium disc
Max diameter 14500mm
Min diameter 30mm
Titanium ring
Outside diameter 200---1500mm
Inside diameter 60----1200mm
Height 40----800mm |
titanium disc finished | As forged or machined |
| titanium disc Surface | Bright,Polished, Pickling, Acid cleaning |
| Payment | T/T, L/C at sight, D/A,D/A, Western Union or as your inquiry |
| Certificate | ISO 9001:2008, EN10204 3.2 ,SGS, UKAS, The third test report |
| Supply ability | 10 Tons Per month |
| Delivery | Within 5~20 days |
| Payment terms | T/T, L/C, D/A, D/P, Escrow, Western Union, PayPal or as your requirements |
| Leadtime | Within 15 days |
Chemical Composition
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | bal |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / |
|
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Tensile Requirements
Grade |
Tensile Strength (min) |
Yield strength 0.2%Offset |
Elongation in 2in.Or 50mm % (min) |
Min |
Ksi |
Mpa |
Ksi |
Mpa |
Gr1 |
35 |
240 |
20 |
138 |
20 |
Gr2 |
50 |
345 |
40 |
275 |
18 |
Gr3 |
65 |
450 |
55 |
380 |
18 |
Gr5 |
130 |
895 |
120 |
828 |
10 |
Gr7 |
50 |
345 |
40 |
275 |
18 |
Gr12 |
70 |
483 |
50 |
345 |
18 |
Packaging
First packaging with moisture-proof paper;
Second packaging with kraft paper;
Third packaging with foam plastics in all side of plywood case;
Finally packing products in plywood case.
Or as your request.
Transportation
Shipping goods by TNT, DHL, Fedex, UPS, EMS etc. or by air or by sea depends on the purchasing quantity.
Payment
We accept T/T, L/C, Paypal, Western Union etc which can be negotiated and depends on the order.
Why Choose Us
Premium Quality
All the products are mill certified and 100% traceable from mill processing through melt source to maintain quality control requirements. Third Party Inspectation.
Competitive Price
Working from titanium sponge and finishing the raw material melting, milling, drawing, cutting, packaging in house for most products, this makes our prices much more competitive as the middleman is cut out. And our cooperated forwarder and courier charge us reasonable costs for goods delivery.
Superior Serviceand After-Service
Quick response and on-time delivery. We also offer value-added processing such as welding, drilling, surface treatment and customized cutting.
Kindly you please contact with me, If you're interested in our products.
Contact Information:
Name: Felix Wang(Mr.)
Tel: +86-917-3388609; Fax: +86-917-3388608
Mobile: +86-18392780227
Web:www.chinahhmetal.com
Baoji Huaheng Titanium Industry Co., Ltd was established in September 2005, located in Baoji "China Titanium Valley", which is a comprehensive enterprise with independent import and export right authorized by related departments for Titanium, Nickel, Zirconium, Tungsten, Molybdenum and other rare refractory metals materials processing, manufacturing and marketing.
With independent modern manufacturing workshop and ISO9001: 2008 quality certification registered capital 4.6 million RMB, a selling network has been formed focusing on processing, manufacturing, marketing of pure Titanium and Titanium Alloy plate, bar, wire, tube and other rare refractory metal material products. Our main products cover titanium tube, titanium plate, titanium bar, molybdenum bar, tungsten sheet etc.
Company was committed to product quality control, what is the soul of the enterprise, and paid much attention to technology research, innovation and strengthen the service concept. After years of development, products have been obtained the customers' trust and recognition gradually, and established a long-term cooperation relationship with them all over the world. Outstanding quality, Competitive price, Timely delivery and professional after-sale Service we promise. All staffs of Huaheng Titanium are pleased to cooperate with you, support with you and develop with you to create a beautiful future for rare refractory metal industry.
