North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:
Small Crane
Power Source:
Electric
Sling Type:
Chain
Certification:
ISO9001:2000
Lift Speed:
1.8m/Min~6.8m/Min
Chain Falls:
1~6

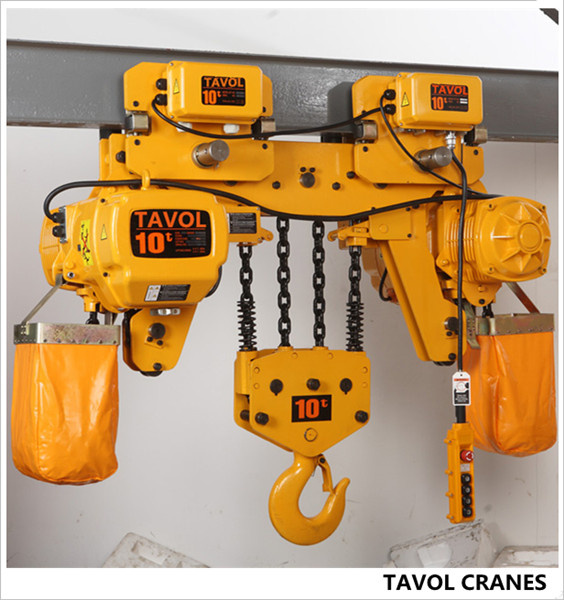

Product Description
Electric chain hoist widely applied to mold, mechanical manufactur warehouse, logistics, shipbuilding, bridge construction, and other industries as well as factories and other special purposed. Advanctages: 1. Light weight 2. Small size limit 3. High level of work 4. Good performance, high reliablity and low failure rate 5. Chain sprocket, easy in use decidous or job-hopping, more stable 6. Work with low noise, overload ability, braking torque. Specificaions: 1. Electric motor partial outer cover They are made of high strength aluminum system through compression casting formation. . Advatages: Solid and light . Fast release heat . Continuous use . Enclosed structure . Can be used in the chemical plants, electroplating factories, and other places. 2. Side kind braking
This masterly structure ensure the hoist absolutly safety when the power off. And ensures it is safe when has excess load.
3. Gear The gear is made of alloy steel and through the heat treatment 4. Antiphase protector Advatages: When power-supply wiring mistake, the control circuit is unable to move. 5. Hooks They are made by hot forging and heat treatment. 6. Chain It is made of FEC80 ultra strong heat treatment alloy steel. Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.
7. ISO: M4 /FEM: 1AM Insulation grade: F 8. Protection class (hosit and push button): IP54 9. Powder supply: 3 phase, 200-600V, 50Hz 10. Noise (single/ double speed): 81dB
