Product Description
Performance and feature

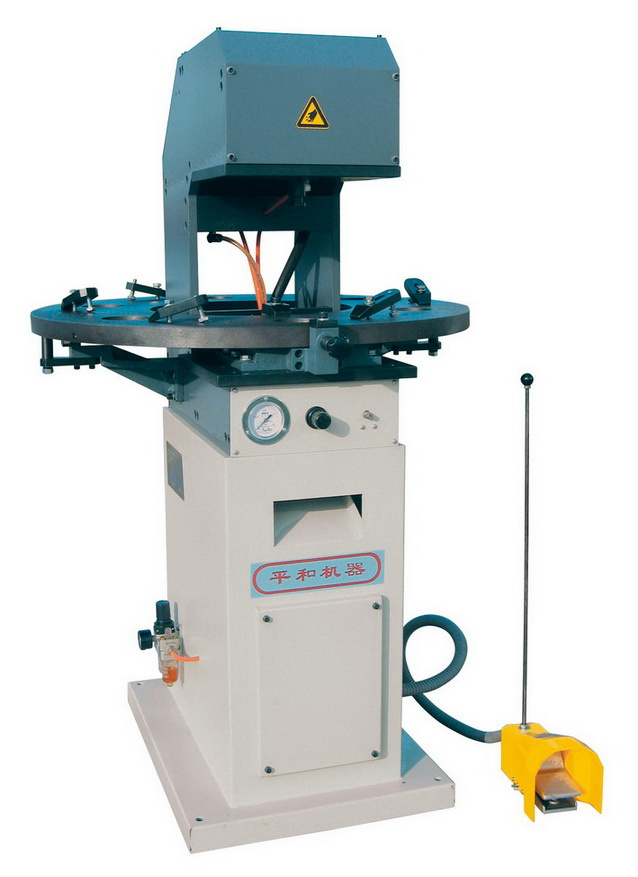

For punching and blanking aluminum window and door profiles
With hydro-pneumatic boosting system, the machine works durably and stably, is in low failure rate, easy for repair; Free from electric power and with low noise.
Toe index (rotatable position) design for worktable makes the machine available for 4~6 sets of moulds, taking less space and convenient for operating.
Standard outfit
Hydro-pneumatic boosting system -------------------------------1 set
Machine body -----------------------------------------------------------1 set
Toe index (rotatable position) worktable ------------------------1 set
High-pressure cylinder -----------------------------------------------1 set
Specifications
Max. Punching stroke of the punching cylinder -------------30 mm
Allowed open height of the die holder ---------------140~190 mm
Working range of the worktable ----------------------420~880mm
Height of worktable ------------------------------------------------900mm
Pneumatic working pressure ----------------------------0.5~1.0 MPa
Delivery pressure ----------------------------------------------------5~10T
Air consumption --------------------------------------------0.02m/stroke
Outer dimensions --------------------------------1000x880x1400mm
Weight ----------------------------------------------------------------300Kg
Machining precision
Depending upon mould precision.
