| Price: | US $ 15-170/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | YL Series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: | Yl Series Motor |
| Output: | 0.33HP-10HP |
| Certificate: | CE / ISO9001 |
| Duty: | Continuous(S1) |
| Cooling Method: | IC0141 |
| Insulation Class: | Class B/F |
| Protection Class: | IP44/IP54/IP55 |
| Winding: | 100% Copper Wire |
| Mounting: | B3/B5/B35 |
| Housing: | Cast Iron |
| Number Of Stator: | Single-Phase |
| Operating Speed: | Constant Speed |
| Application: | Power Tools |
| Casing Protection: | Closed Type |
| Rotor Structure: | Squirrel-Cage |
| Starting Mode: | Capacitor-Run Single Phase Asynchronous Motor |
| Species: | Single Phase |

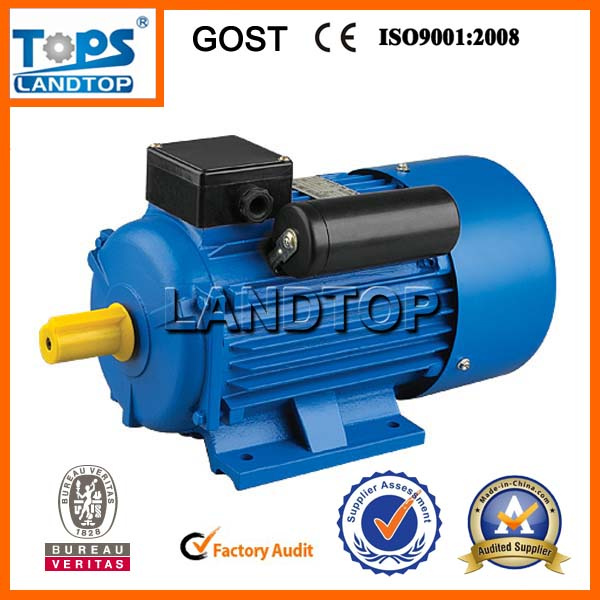

LTP YC Series Single Phase Motor
YC, YCL series heavy-duty 1 phase AC single phase motors are totally enclosed fan cooling type. It is cast iron housing high starting torque motors.
It is suitable for small size machine tools and water pumps, especially for family workshops where only single-phase power supply is available.
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicate do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc
What we do:
We have single and three-phase electrical motor. ( 0.18kw-315kw ).(2,4,6 and 8 pole)
Please E-mail me if you need other model motor.
| Type | Output | Current(A) | Speed(r/min) | Eff(%) | Power | Locked rotor | Locked rotor | Max. torque | |
| factor(CosΦ ) | torque | current(A) | ated torque | ||||||
| HP | KW | Rated torque | |||||||
| YL711-2 | 1/2 | 0.37 | 2.73 | 2750 | 67 | 0.92 | 1.8 | 16 | 1.8 |
| YL712-2 | 3/4 | 0.55 | 3.88 | 2750 | 70 | 0.92 | 1.8 | 21 | 1.8 |
| YL801-2 | 1 | 1.75 | 4.79 | 2800 | 75 | 0.95 | 1.8 | 29 | 1.8 |
| YL802-2 | 1.5 | 1.1 | 6.93 | 2720 | 76 | 0.95 | 1.8 | 40 | 1.8 |
| YL90S-2 | 2 | 1.5 | 9.44 | 2820 | 76 | 0.95 | 1.8 | 55 | 1.8 |
| YL90L-2 | 3 | 2.2 | 13.7 | 2830 | 77 | 0.95 | 1.8 | 80 | 1.8 |
| YL100L-2 | 4 | 3 | 18.4 | 2850 | 78 | 0.95 | 1.8 | 110 | 1.8 |
| YL112M-2 | 5 | 3.7 | 22.2 | 2850 | 80 | 0.95 | 1.7 | 160 | 1.8 |
| YL711-4 | 1/3 | 0.25 | 2 | 1360 | 62 | 0.92 | 1.8 | 12 | 1.8 |
| YL712-4 | 1/2 | 0.37 | 2.8 | 1380 | 65 | 0.92 | 1.8 | 16 | 1.8 |
| YL801-4 | 3/4 | 0.55 | 3.88 | 1400 | 70 | 0.92 | 1.8 | 21 | 1.6 |
| YL802-4 | 1 | 0.75 | 5.1 | 1400 | 73 | 0.92 | 1.8 | 29 | 1.6 |
| YL90S-4 | 1.5 | 1.1 | 7 | 1400 | 75 | 0.95 | 1.8 | 40 | 1.6 |
| YL90L-4 | 2 | 1.5 | 9.44 | 1410 | 76 | 0.95 | 1.8 | 55 | 1.6 |
| YL100L1-4 | 3 | 2.2 | 13.7 | 1420 | 77 | 0.95 | 1.8 | 80 | 1.8 |
| YL100L2-4 | 4 | 3 | 18.4 | 1430 | 75 | 0.95 | 1.8 | 110 | 1.8 |
| YL112M1-4 | 4 | 3 | 18.4 | 1430 | 78 | 0.95 | 1.8 | 110 | 1.8 |
| YL112M2-4 | 5 | 3.7 | 22.2 | 1450 | 80 | 0.95 | 1.8 | 138 | 1.8 |
| YL132S1-4 | 4 | 3 | 18.4 | 1450 | 78 | 0.95 | 1.8 | 110 | 1.8 |
| YL132S2-4 | 5 | 3.7 | 22.2 | 1450 | 80 | 0.95 | 1.8 | 138 | 1.8 |
| YL132M-4 | 7.5 | 5.5 | 32.5 | 1450 | 81 | 0.95 | 1.7 | 227 | 1.8 |
