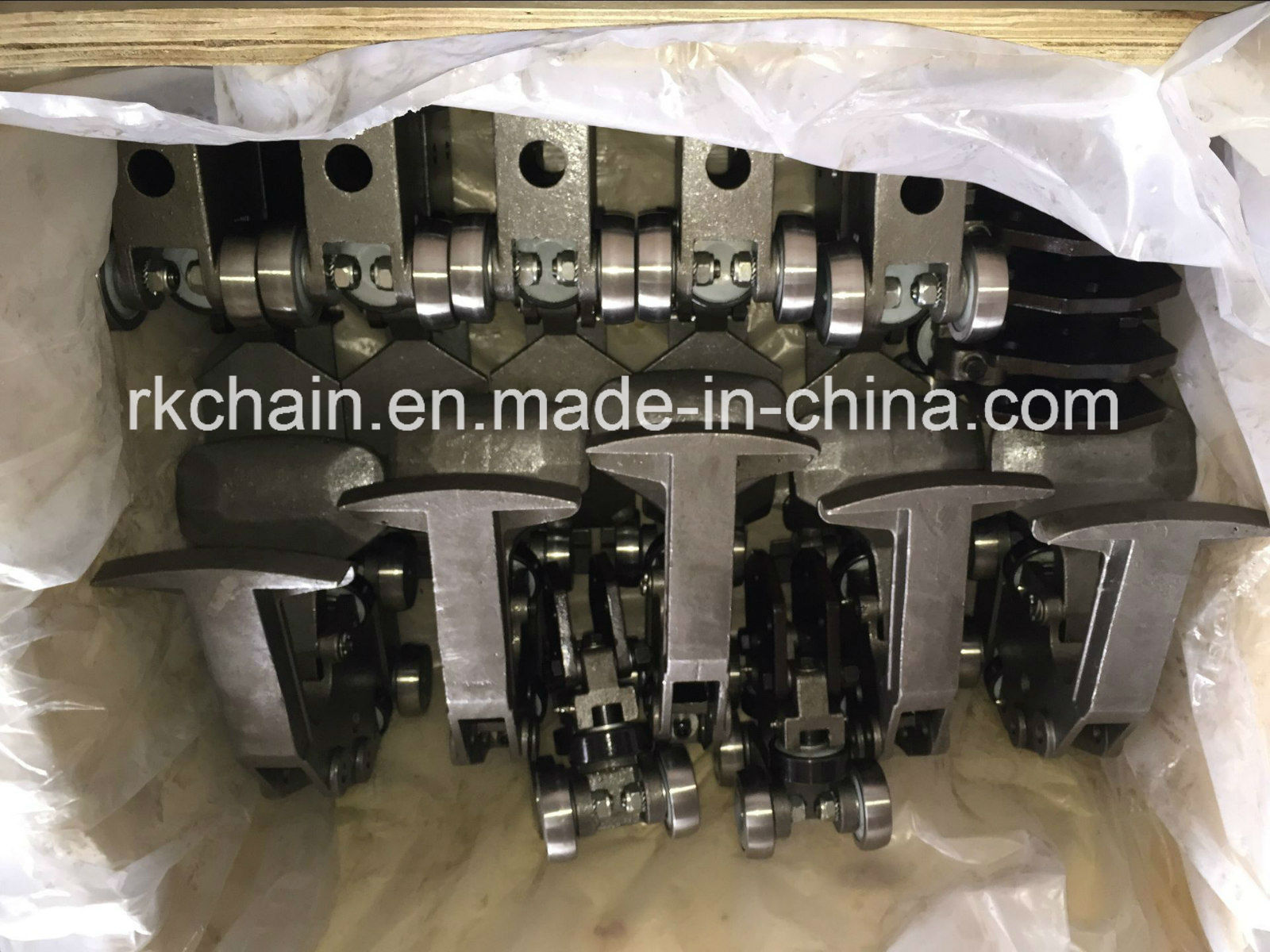

Track Hanging Conveyor Chain Trolley (carrier)
| Price: |
US $ 3/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
| Prod Model: |
X458, X348, X678 X698 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fuction: |
Overhead Conveyor Line |
| Usage: |
Transport |
| Structure(for Chain): |
Forging Chain |
| Type: |
Hanging Conveyor |
Product Description
348 Trolley-63.5mm drop
Standard trolley has a rivetted 59mm diameter wheel. Which can be supplied with caged or full ball wheels, with or without dust cover, weight of two wheel trolley 1.35kg
458 Trolley-81.0mm drop
Standard trolley has a rivetted 80mm diameter wheel. Which can be supplied with caged or full ball wheels, with or without dust cover, weight of two wheel trolley 2.70kg
458 Trolley-104.0mm drop
Standard trolley has a rivetted 59mm diameter wheel. Which can be supplied with caged or full ball wheels, with or without dust cover., weight of two wheel trolley 2.90kg
678 Trolley(4"-6")-88.0mm drop
Standard trolley has a rivetted 59mm diameter wheel. Which can be supplied with caged or full ball wheels, with or without dust cover, weight of two wheel trolley 3.20kg
678 Trolley(6"-6")-101.6mm drop
Standard trolley has a rivetted 59mm diameter wheel. Which can be supplied with caged or full ball wheels, with or without dust cover, weight of two wheel trolley 7.8kg.
| X348 63.5mm | 1.35kgs |
| X458 81.00mm | 2.70kgs |
| X458 104mm | 2.90kgs |
| X678 88mm | 3.20kgs |
| X678 101.60mm | 7.80kgs |
We are one of the China Conveyor, Conveyor Components and transmission Spare parts factory which earlier trial-produced and manufactured many kinds of Overhead and Floor Conveyor and components, Drop Forged chain, Overhead Conveyor trolleys, carriers, I beam steel track and Load bar, Driving Device, Tension Device, Back Whirling Device, Sliding Ramp Device, and Electrical Controller, Poultry Chain and pulley for slaughterhouse Equipment, Slaughter hook and hanger, Plastic conveyor chain for automatic conveyor system, Steel and stainless steel roller chain, chain conveyor, Conveyor Chain, Scraper Chain, elevator chain, welded steel chain, link chain, snow chain, Bearing bush, shaft, gear and sprockets. Specialized chains for sugar and palm oil industries are also available.
It has more than 20 years of chain manufacturing experience. Our factory has very strong engineering capabilities, a complete range of equipment and thorough range of inspection methods. Owing to better quality and competitive price, our products are sold well in China and been exported to Europe, America and other countries and regions.
Main products are Forged chain Conveyor and components, welded link chain, Standard and non-standard stainless steel and carbon steel roller chain, Leaf chain, standard and non-standard conveyor chain, Scraper conveyor chain, Cranked link chain, double plus chain, double pitch transmission chain, plastic chain, Bearing bush, shaft, gear, sprocket and Other accessories.
Our Conveyor and Conveyor components, Transmission spare parts are made from high quality steel and stainless steel with advanced technology. They are widely used in the mechanical Conveyor and transmission assembly line of foodstuff, pharmaceutics, rubber, printing &dying, rinsing, electronics and other industries.
According to customer's requirements, we can also produce non-standard products. We assure our customers of our best service. We like to establish business relationship with customers all over the country and the world. If you have requirements, please feel free to contact us. We are trying our best to meet the needs of the customers and serve them whole-heartedly and sincerely.
