| Prod Model: |
840 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Trapezoidal Roofing Sheet Forming Machine |
| Feeding Width: |
1000mm |
| Rows Of Rollers: |
13 Rows |
| Main Power: |
4kw |
| Hydraulic Power: |
3kw |
| Main Frame: |
300 H Steel |
| Thickness Of Raw Material: |
0.3-0.8mm |
| Transportation System: |
Chain Transportation |
| Thickness Of Chain: |
1.0inches |
| Productivity: |
8-10m/Min |
| Forging Forming Method: |
Mold Forging |
Product Description

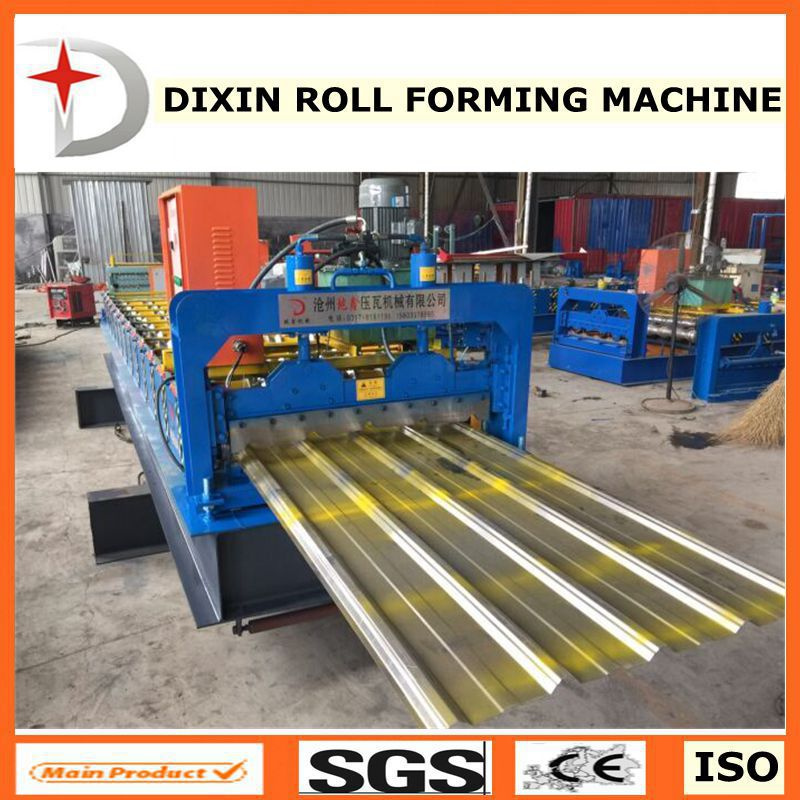

trapezoidal roofing sheet forming machine:
Product Description
Abstract of the roofing sheet roll forming machine:
The tiles produced by this machine are widely used in all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency and reliable working. It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on.
Features of this roofing sheet roll forming machine:
lower cost
high efficiency
reliable working
low energy consumption
Components of the roofing sheet roll forming machine
Uncoiler
Feeding platform
Molding core
Molding shearing mechanism
Hydraulic station
Computer control cabinet
Counter
Optional components of the roofing sheet roll forming machine
·Manual uncoiler frame in different tons
·Hydraulic automatic uncoiler
parameters of the colored steel automatic trapezoidal roof panel roll forming machine
No. |
Spc. |
1 |
suitable material |
Color Steel plate, galvanized sheet |
2 |
Feeding width |
1000mm |
3 |
Rows of rollers |
13 rows |
4 |
Main power |
4kw |
5 |
Hydraulic power |
3kw |
6 |
Main frame |
300 H steel |
7 |
Thickness of raw material |
0.3-0.8mm |
8 |
Transportation system |
Chain transportation |
9 |
Thickness of chain |
1.0inches |
10 |
Productivity |
8-10m/min |
11 |
Out diameter of shaft |
75mm (solid shaft) |
12 |
Material of shaft |
Material of shaft |
13 |
Roller material |
45# steel polished and coated with chrome HRC55-60° |
14 |
Shear mould |
Gr12 |
15 |
Voltage |
380V 50Hz 3phases |
16 |
Control system |
PLC Frequency Control System with touch screen
|
What is Service?
We provide the technical support for whole life.
Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.
When need the technician to go abroad, we will arrange the technician.
But the buyer should take all the cost, including Visa, Roundtrip ticket,
suitable accommodation and pay the service fee to the technician with $100/days |
How is payment?
T/T( 30% by T/T in advance, the rest 70% to be paid by T/T after you inspect the machine
in seller's factory before delivery ) |
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping and sandwich panel forming machine.
We exports to most of the world. USA, UK, Africa, Russia, Indian and many other countries.
The davantage of our factoy is that
1. Many panel profile drawing machine designs available
2. Good quality machine
3. Good communication and good after sale service
In the next five years, we provide much better quality machine at reasonable price but competitive than Other supplier. So we can earn more market in the world.
Pls contact for more business.
