| Prod Model: |
EF40NC-2H/EF50NC-2H/EF80NC/2H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
End Forming |

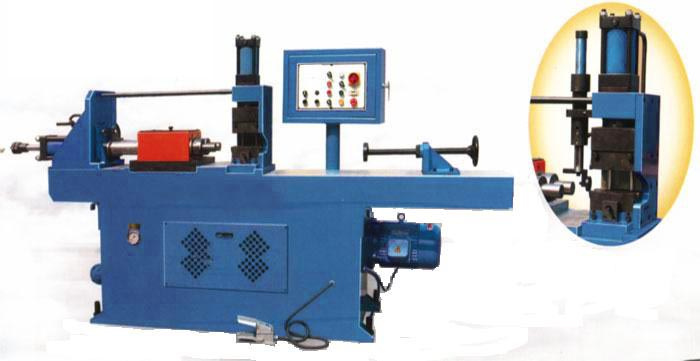

Product Description
Expand or shrink tube/pipe ends;
Dual-station to shrink twice for workpiece, high working efficiency;
Tube/pipe end shapes: Convex, concave, knot, rectangular, square, V-shape, oblique, elbow, etc.;
Computer controlled, hydraulic driven, dialogue mode;
Optional for manual, semi-auto operation;
Adjustable machine heads distance according to workpiece length;
Single clamping or double clamping optional;
Quick changing tooling;
Remote foot pedal for function of start, emergency stop to keep safety operation.
MODEL
SPEC. | EF40NC-2H | EF50NC-2H | EF80NC-2H |
| Max. tube capacity | Φ38x2.0mm | Φ50x2.0mm | Φ80x2.5mm |
| Working travel | 100 mm | 110 mm | 150mm |
| Working speed per 100mm | 3-4sec. | 4-5sec. | 5-8sec. |
| Oil pressure | 4.5MPa | 12MPa | 12MPa |
| Motor power | 5.5kW | 5.5kW | 7.5kW |
| Dimensions (L x W x H) | 2600x550x1300mm | 2600x600x140mm | 2600x650x1450mm |
| Weight | 1000Kg | 1200Kg | 1400Kg |
Qingdao Bending Machinery Co., Ltd. is located in Qingdao Environmental Protection Industrial Park. Next to National Highway 204, the company is 14km from Qingdao International Airport and 100km from Qingdao Seaport, which gives the company an advantage of convenient transportation.
With an area of 10, 000 square meters, our company is specialized in manufacturing tube/pipe processing machinery such as CNC Tube/Pipe bender, Hydraulic Tube/Pipe bender, End-forming machine, Notching machine, Rolling machine, Sealing machine, and Chamfering machine, etc. Applicable in the processing of various tubes and pipes, our products are ideal corollary equipment for bending, cutting and molding of tubes/pipes or sections. Our products are widely used in manufacturing auto parts, motorcycles, vehicles for children, bicycles, light fittings, pipes of air-conditioning, fitness equipment, sanitary ware equipment, medical device, steel furniture and leisure furniture, as well as in the industries of petrochemistry, architectural decoration and shipping, etc.
On the basis of the technology introduced from Taiwan, our company integrates designing, manufacturing, installation, commissioning and marketing. With the concept of providing products and service of excellent quality, we are enlarging production scale continuously. Now we own machining workshops, welding workshops, assembly workshops, painting workshops and finishing rooms. We own the CNC machining center, CNC lathe, milling machine, boring machine, drilling machine and welding machine. Besides conventional equipment, we can also design and customize equipment according to requirements of customers. We also offer increasingly sound after-sale-service to relieve your worries after purchase.
We are committed to providing customers with tube/pipe processing machinery of good quality and pursuing common development with our customers!
