Product Description

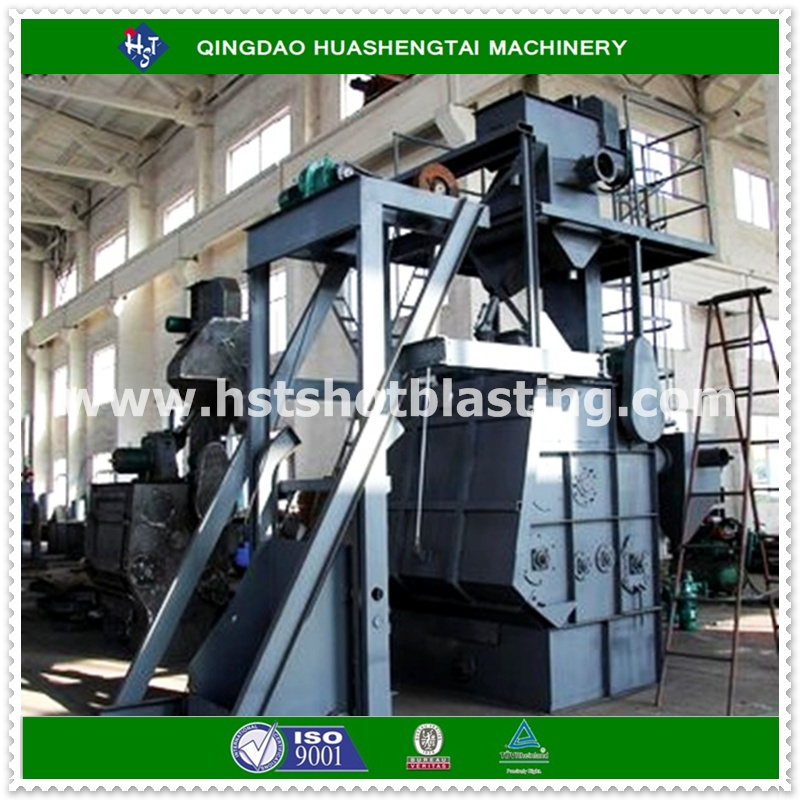

HQ32 series rubber belt type shot blasting machine
1.ISO9001,BV
2.Environmentally friendly
3.High efficiency and large productivity
This series is used for surface cleaning, rust remove, and surface intensification of each kind of middle
and small scale casting, forging and so on.
It is suitable for different production scale, can be standalone use and many units can also be used in
conjunction continuous conveyor components, composing the production of clean-up lines.
Q32 series abrate cleaning up machine has the advantages of advanced design,reasonable structure,
small energy consumption and high efficiency.
· Application:
It provides a cost-effective solution for batch cleaning, deburring, descaling, decoring,deflashing and
peening a wide variety of products.
· Ferrous and non-ferrous castings
· Heat treated forgings
· Small Automotive parts
· Die castings and much more
· Lower value parts where part on part impingement is not an issue
· When production requires dictate batch processing
· Small to medium size castings, fabrications and heat-treated parts
· Sand removal or part cleaning
· Equipment:
Track Loading device (Optional), blast wheel, abrasive recycle system, separator , dust collector, control
system.
Machine details:
· Our belt shot blast machines are designed to process a variety of parts that can be tumbled.
· The endless conveyor belt and lateral round place creates a trough in which parts are treated.
· The number and power of the turbines are chosen according to the requirement production rate.
· Optional PLC control system, stable quality and easy to get support from local.
· Component key parts adopt world famous brand, such as Siemens, Omron, Schneider, Mitsubishi.
· No-pit, easy for install and move and save cost.
· A high volume of parts can be processed in a small working area.
· All shot blasting machines are totally integrated with abrasive reclaim systems, separator and dust collector.
· 20 years experienced engineers, customized service available.
· Superior design, quality and rugged construction make our barrel machines more reliable and easier to
maintain.
· After-sale service support will be provided within 24hours.
HQ32 series belt type shot blasting machine technical parameters:
| Model | HQ326 | HQ3210C | HQ3210 | HQ3220 |
| Productivity (t/h) | 0.6-1.2 | 1.5-2.5 | 3-5 | 4-6 |
| Conveyor material | Rubber | Rubber | Rubber | Rubber |
Abrasive first
Loading quantity
(kg) | 200 | 600 | 800 | 900 |
Maximum weight
Of Single
Workpiece
(kg) | 15 | 30 | 30 | 35 |
Diameter of plate
(mm) | 650 | 1000 | 1000 | 1000 |
Effective volume
(m3) | 0.15 | 0.3 | 0.4 | 0.5 |
Abrasive flow rate
(kg/min) | 100 | 250 | 250 | 200*2 |
Ventilation capacity
(m3/h) | 2200 | 5000 | 6000 | 7000 |
Overall dimension
(mm) | 3700*1650*5800 | 3970*2600*4770 | 3650*2950*5850 | 3650*3250*4770 |
Total power
(kw) | 12.6 | 24.3 | 32.6 | 37.6 |
H15GN 28GN series metal belt type shot blasting machine technical parameters:
| Model | H15GN | H28GN |
| Size of the roller (mm) | 1090*1245 | 1245*1778 |
| Diameter of plate (mm) | 1092 | 1250 |
| Effective volume (m3) | 0.43 | 0.79 |
| Single workpiece maximum weight (kg) | 227 | 363 |
| Loading weight | 1200 | 2500 |
| Abrasive flow rate (kg/min) | 360 | 2*260 |
| Abrator power (kw) | 22 | 30 |
This type of shot blasting machine is the alternative products of rotary drum shot blasting machine, it is a
kind of machine with the advantage as good cleaning effect, compact structure, low noise and can match
with other equipment, has the following features:
This machine uses Q034 cantilever type centrifugal blast apparatus, has the feature of long service life,
simple structure, low failure rate, etc.
The winnowing separator, which has good separation effect and higher productivity, has a positive effect
to improve the blade service life.
Use cloth bag filter, so the dust emission concentration is lower than the national standard, and the
worker's labor environment is improved.
After the work pieces cleaning finished, the caterpillar can inverse to realize automatic discharge.
Use the feeding and discharging mechanism, so the labor intensity of workers are further reduced.
| Balls types | Casting iron
abrasives | Forging
abrasives | Casting steel
abrasives | Steel wire
cutting abrasives |
| Hardness(HRC) | 55-64 | 35-40 | 40-45 | 35-40 |
| Using times | 60 | 870 | 1570 | 3410 |
| Lifespan | 1(1) | 15 | 26 | 57 |
| Blades abrasion | 10-15 | 1(2) | 1 | 2-4 |
| Relative price | 1(3) | 1.5-2 | 2-2.5 | 2-2.5 |
Q15GN/Q28GN Series Tumble Belt Type Shot blasting Machine is used for removing the sand and the
oxidation surface of the workpieces such as the casting, forging as well as the welding parts.
Owing to the perfect protective measures, good shot blasting and reasonable structure of the circulatory
system, the machine can achieve satisfactory results when it is used to clean up the hard-to-clean
workpieces.
This kind of machine is used for clean up the workpieces which are easy to roll and fall,and also be used
to clean up the non-fragile parts as well as the non-core castings.
The aluminum workpieces and some nonferrous metal workpieces can also be cleaned up by this series
of shot blasting machine.
Automatic feeding type track shot blasting cleaning machine is caterpillar shot blast cleaning equipment,
has the following features:
¯ This machine is especially suitable for integrated into the automatic production line
¯ Using the cantilever centrifugal shot blasting machine, which is with large blasting capacity and high
mass ejection speed, in order to improve the cleaning efficiency, and get a satisfactory cleaning quality.
¯ All shot blasting machine drawings are computer aided designed (CAD), so that the selection of shot
blasting machine and the layout is more reasonable, the utilization rate of the projectile and the labor
productivity are improved, the cleaning efficiency been ensured, and the wear abrasion of chamber body
protection plate is reduced.
¯ After the Artifacts cleaned, the caterpillar inverse to realize discharge automatically
¯ Add the feeding appliance, so the worker labor intensity has been reduced.
¯ At the same time, the user can choose after unloading work pieces transportation appliance, using for
automatic production line collecting the cleaning finished work piece together.
The chamber use wear-resisting steel protection, the popular way of chamber body protection.
