| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Type: |
Coating Production Line |
| Materials Can Be Coated: |
Hardware, Toos, Metal, Alloy, etc |
| Size: |
600mm Times 600mm |
| Certificated: |
ISO9001: 2008 |
| Business Type: |
Manufacturer |
| Condition: |
New |
| Automatic Grade: |
Manual/Automatic Integration Mode, PLC or Computer |
Product Description
1. Feature
(1) Anode layer ion source adopts the international advanced level and plane rectangular arc source adopts domestic leading level
(2) Multi-channel feedback control system: The arc source control, pneumatic control, process control.
(3) Acquisition process archiving, alarm data, facilitate data collection and equipment maintenance
(4) Unique octahedral chamber design, both to improve device utilization of space and easy to maintain and repair.
(5) Can be coated superhard coatings: TiN and TiC, ZrN, CrN, TiCN, TiAlN, DLC, etc...
2. Field of use: Tools, cutting tools, drill bits, mills, reamer, hob, broach, tap, die, blade, bearing, high-grade mold, precision parts and electronics industry, etc
3. Main technology parameters
|

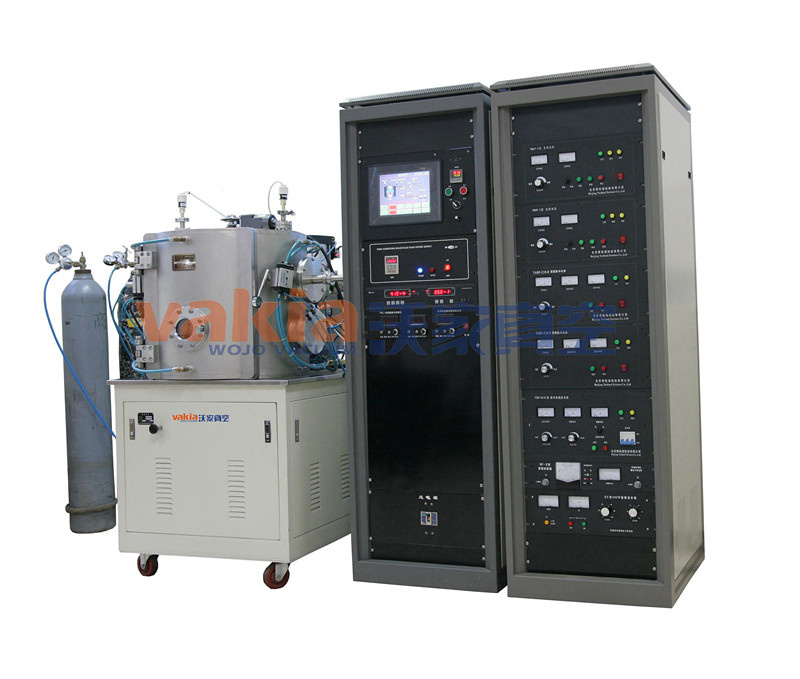

VAKIA-HTC Tooling coating machine |
|
Model |
VAKIA-HTC-700 |
VAKIA-HTC-900 |
VAKIA-HTC-1000 |
|
Size of vacuum chamber |
φ 700× H900mm |
φ 900× H1100mm |
φ 1000× H1200mm |
|
Type of power |
Arc power supply, filament power supply, pulse bias supply |
|
Structure of vacuum chamber |
Vertical front door structure, rear air exhaust system and double-layer water cooling chamber |
|
Material of vacuum chamber |
superior stainless steel vacuum chamber |
|
Ultimate vacuum |
6.0× 10-4Pa |
|
Pumping time (unload, clean vessel) |
from air to 8.0× 10-3Pa less than 15minutes |
|
Vacuum system |
Diffusion pump or molecular pump + Roots pump + Mechanical pump + rotary vane mechanical pump (the specific model can be configured according to customer requirements) |
|
Coating types |
Carbide tool coating |
|
Arc source |
6sets |
6sets or 8sets |
8sets or 10sets |
|
Bias power supply |
20KW/1set |
30KW/1set |
30KW/1set |
|
Rotating mode of workpiece turntable |
Planetary revolution and rotation, variable frequency speed regulation (controllable and adjustable) |
|
Workpiece baking temperature |
Controllable and adjustable from room temperature to 550º C (PID temperature control) |
|
Process gas |
3-path or 4-path process gas flow control and display system, selective automatic gassing system |
|
Cooling mode |
Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers) |
|
Control mode |
Manual/automatic integration mode, touch screen operation, PLC or computer control |
|
Total power |
25KW |
30KW |
35KW |
|
Alarm and protection |
Alarm water shortage, overcurrent and overvoltage, short circuit and other abnormal conditions of pumps, targets and so on also execute relevant protective measures and electric interlock function |
|
Occupy space |
W2m× L3m |
W2.5m× L3.5m |
W3m× L4m |
|
Other technical parameters |
Water Pressure ≥ 0.2MPa, Water Temperature ≤ 25º C, Air Pressure 0.5-0.8MPa |
|
Remarks |
The specific configuration of coating equipment can be designed according to process requirements of coating products |
Shanghai Vakia Coating Technology Co., Ltd is the subsidiary of Shanghai Guangsu Machinery group company, established in 1992, located in Shanghai Songjiang sci-tech park, covers an area of 238 acres. The group company is composed by Guangsu injection machine, vakia vacuum, Songde cutting tool and active fountain pump valve. Group company always keep the operation philosophy of "quality product, star service", and well-known in the industry for its superior quality, high-efficient and energy saving.
Group company will follow the policy of "sci-tech oriented, management Innovation, quality first, customer first ", continue to increase new product Development dynamics, emphasis is develop a series of new products with the leading domestic level and catch up with the world's advanced level, Let it become a economic growth new luminescent spot of our company.
Meanwhile, our company brings out a series of new measures in terms of Management and quality control, strengthen the cooperation with scientific Research institute both at home and abroad and famous enterprises, meticulously build brand effect to improve the degree of customer satisfaction.
Shanghai Vakia Coating Technology Co., Ltd is a leading vacuum coating engineering integrated provider in China. We create maximum value for customers through our close dedication to customer-centric innovation. We have set up strong business relations with global partners, and established technological and service advantages in advanced energy and materials\architecture/automobile\precision manufacture\heavy industry/military project and so on. We committed to providing competitive comprehensive solutions and services for enterprises\science research institutes and coating centers.
The products we manufacture are as follows: Inline magnetron sputtering coating system\rectangle arc tooling coating machines\multi-arc combination with multi-functional medium frequency magnetron sputtering vacuum coater\medium frequency magnetron sputtering coating machines\multi-arc ion coating machines\optical thin-films coating machines and evaporation coating machine etc.
These products are widely used in solar energy\semiconductor\Low-E glass\photoelectricity\flat panel display\tools and cutters\watches\hardware\3C\plastic\ceramic etc. Our company have perfect R&D and manufacture system\customer service system. There are many domestic and foreign experts working with us. Our products and craft have been deployed all over the world.
At present, our products and craft have been deployed all over the world. We dedicated to the green solutions and recombine resources inside and outside of the company, increase the investment in R&D, launch new technologies and products continuously to cater to the demand of domestic and foreign market, contributing to the sustainable development of society\economy and environment.
