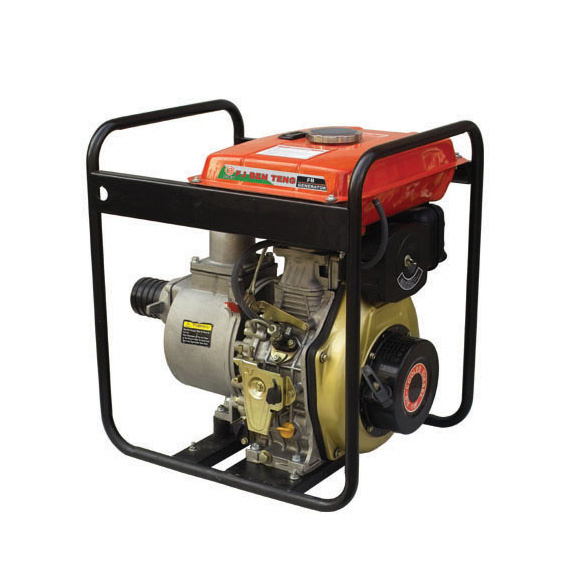

Tw-Wp20xd Diesel Water Pump for Agriculture
| Price: |
US $ 300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50units |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
TW-WP20XD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inlet/Outlet Diameter(mm): |
50( 2" ) |
| Max. Head(M): |
26 |
| Max. Suction Head(M): |
8 |
| Max. Flow (M³ /H): |
36 |
| Model: |
Tw170 |
| Displament(Cm3): |
211 |
| Material: |
Stainless Steel |
| Structure: |
Diaphragm Pump |
| Type: |
Blade Pump |
| Application: |
Chemical Pump |
| Theory: |
Centrifugal Pump |
| Power: |
Diesel Engine |
Product Description
Diesel water pump
Features:
1. Powered by Air-cooled Direct Injection 4-stroke Diesel Engine
2. Big Volume Water Discharge
3. Aluminum alloy high Pressure casting
4. Compact in Structure and Light Weight
5. High quailty and mechanical sealed equipment
Model
| TW-WP20XD
| TW-WP30XD
| TW-WP40XD
|
Inlet/outlet Diameter(mm)
| 50( 2” )
| 80( 3” )
| 100( 4” )
|
Max. Head(m)
| 26
| 25
| 31
|
Max. Suction Head(m)
| 8
| 8
| 8
|
Max. Flow (m³ /h)
| 36
| 50
| 96
|
Model
| TW170
| TW 178F
| TW 186F
|
Displament(cm3)
| 211
| 296
| 406
|
Max. Output
| 4.2HP/3600rpm
| 6.0HP/3600rpm
| 10.0HP/3600rpm
|
Fuel Tank Capacity
| 2.5
| 3.6
| 5.5
|
Oil Capacity
| 0.75
| 1.1
| 1.65
|
Overall Dimension L*w*h(mm)
| 550*430*520
| 570*460*550
| 665*495*625
|
Gross Weight(kg)
| 39
| 52
| 71
|
20FT (unit)
| 212
| 168
| 108
|
MOQ
| 20
| 20
| 20
|
