| Prod Model: |
double hook |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Insulating |
| Running Mode: |
Moving |
| Structure: |
Hook Crane |
| Installation: |
All-Terrain Crane |
| Type Of Work: |
Light Level |
| Application: |
Small Crane |
| Power Source: |
Electric |
| Sling Type: |
Chain |
| Certification: |
GS |
| Color: |
Please Offer Us The Pantone Which You Would Like |
Product Description

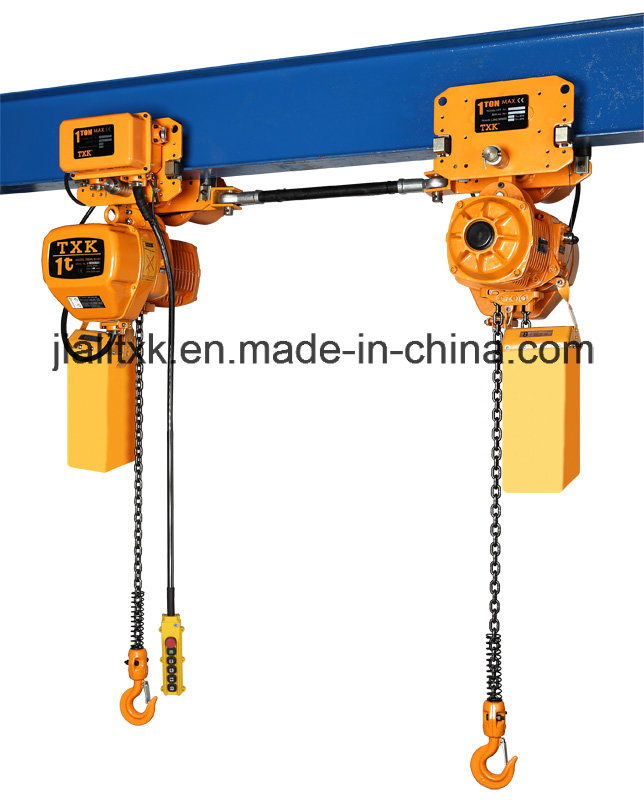

Twin Hook Electric Chain Hoist features:
The twin hook can lift up and down in the same time with one pendant switch.
Before work, pls adjust the two hook in the same horizontal.
Material and Advantage of parts:
1. Electric motor partial outer cover
They are made of high strength aluminum system through compression casting formation.
Features: Solid and light, Fast release heat, Continuous use, Enclosed structure. Can be used in the chemical plants, electroplating factories, and other places.
2. Side kind braking
This masterly structure ensure the hoist absolutly safety when the power off. And ensures it is safe when has excess load. Also it combine to the motor braking as the double brake system to strengthen security and durability.
3. Gear: The gear made of alloy steel and through the heat treatment.
4. Antiphase protector
Advatages: When power-supply wiring mistake, the control circuit is unable to move.
5. Hooks: They are made by hot forging and heat treatment.
6. Chain: It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.
7. ISO: M5 /FEM: 2M
Insulation grade: F
8. Protection class (hosit and push button): IP54
9. Powder supply: 3 phase, 200-600V, 50Hz
10. Noise (single/ double speed): 81dB
Electric Chain Hoist lifting motor drawing:
TXK was founded in 1997 with 1.5 million USD registered fund in the very beginning and grow up as a leading manufacturer of electric chain hoist, manual chain hoist, electric wire rope hoist and various lifting and material handling equipments with more than 15 years experience and hard work.
Our factory cover an area of 66000 square meters, the biggest workshop in the electric hoist industry in China.
We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001: 2008 and TUV certified manufacturer, our products are CE, GS, SGS certified, serving all spheres of industry in the world.
Our products are widely used in industry and manufacturing industry and other special purpose, such as mold, wind power, logistics, railway, shipbuilding, bridge construction, factory assembly line, mechanical maintenance platform etc.
The company establishes a global marketing network with exportation to Germany, Norway, Poland, United States, Canada, Mexico, Peru, Brazil, Argentina, Egypt, Saudi Arabia, South Africa, India, Indonesia, Malaysia and total more than 50 countries and regions.
We will never stop being as an innovative manufacturer. We will continue to develop and extend our products range with high quality, safety standard and long life usage.
Our Purpose
Customer - to be the most reliable partner and friend in the industry.
Products - to be the most high quality with competitive price in the industry.
Service - to the the best pre-sale and after-sale service company in the industry.
Team spirit - to be the most firm and professional team in the industry.
