| Prod Model: |
15000T |
| Markets: |
South America,Southeast Asia,Africa,Mid East |
| Type: |
Metal Rolling&Drawing Machine |
Product Description

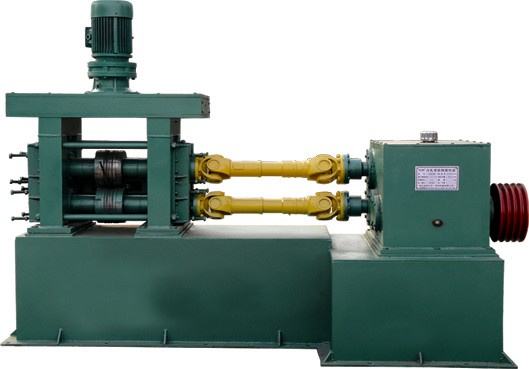

Cold-Rolled Two Sides Ribbed Steel Bar Machine
The technical parameters:
Maximum wire diameter is 12 millimeters. The rolling specification is 5.5 to 10.5 (the specification of end product. ) The rolling speed is 1.6-3 meter/minute. Finally length is 3000-12000 millimeters. Total capacity is 90 kilowatt (cold-rolled system) plus 600 kilowatt (induction furnace) and plus 5 kilowatt (cut off with very fast scissors)
The product feathers:
A. The feathers of heat treatment equipment of cold-rolled ribbed steel bar
Garden ordinary steel bars achieve to the size and mechanical feather of HRB400 (new steel of III grated) through cold-rolled. It makes cold-rolled ribbed steel bars elongation greatly increased, extends the scope of use cold-rolled ribbed steel bars.
B. BY-1
1. The product line uses the most advanced frequency conversion servo and self-development full frequency conversion control technology, effective protections the power transmission system and equipment from damage. It can extend the machinery life greatest. Can save electricity 30-40%, the line speed can up to 90-180 meters/second, improve production efficiency above 40%.
2. Our company products reducer uses self-development reducer, simplifying the structure of production line, makes the equipment more reasonable and compact. (Has omitted the speed reducer which between the main rolling mill and the main speed reducer. Reducing many different heart problems that the transmission distance has been long and the attachment flange not in concentric. ) Effectively improve the transmission efficiency more than 30%, increased the stability of the equipment by 60% or more. Effectively improve the production efficiency.
3. This equipment uses touch screen PLC numerical control system, make the operation easier, CNC higher degree.
4. This equipment is equipped with ultra-audio frequency induction heating system, using spiral induction heating principle, so that steel heated evenly, machine direction stability, and a blue protective layer formed on the surface to make steel from rust and rot.
5. Straightening machine with several rounds of synchronous control technique. Straightening effect is good. Less damage to the steel bars.
6. Cut off frequency or the use of self-developed servo-flying shear control system, easy to operate. The degree of NC is high. The failure rate is low, cut off the little error.
7. The equipment includes:
(1) 5 Phosphorus machine,
(2) Lubrication of machine,
(3) K2-reducing rolling mill,
(4) K3 positioning auxiliary rolling mill, one Taiwan;
(5) K1 main rolling mill, one Taiwan (90kilowatt frequency control motor speed 120-180meter/second, adjustment method: Electric adjustment);
(6) Lead pipe;
(7) Active multi-plane rotation of a straight sets;
(8) Servo control system using advanced cutting machine, one Taiwan;
(9) Leak the news rack 12 meters;
(10) Near the switch frame 1;
(11) CNC operation cabinet, one Taiwan;
(12) Motor rails.
8. Note: This production line part of the equipment on the optional configured which decides to the contract and the packing list shall prevail.
Hebei Boyuan Wiredrawing Machinery Co., Ltd. is enterprise that management machinery and profession equipment. The registration authorized by the national related department. Main businesses are steel bar and pre-stressed machinery, steel bar straightening-cutting machine, cold rolling machine, cold-rolled ribbed steel bar equipment etc. The company is situated in hebei province xianxian county chenquan economic and development zone of China. We have established the long-term and friendship cooperation in line with many enterprises in the principle of customer first faith above. The commercial management takes along all staff cordially welcome friend from all walks of life. The commercial management takes along all staff cordially welcome friends from all walks of life to consultation, visit and discusses the service.
Our company is the biggest suppliers in the north of China. We are self-development and product industrial processing machine.
