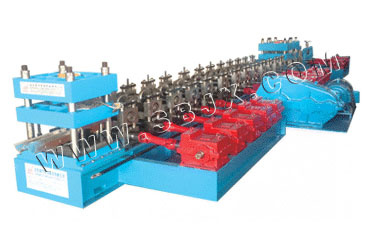

Two Waves Guard Rail Roll Forming Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
| Prod Model: |
M192 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue and Yellow |
| Forging Forming Method: |
Roll Forming |
Product Description
Product name: Guard rail roll forming machine
Description:
1. Brief introduction:
A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.
2. Main technology parameter:
The structure of equipment
1. Hydraulic decoiler
Single unrolling machine, one side can put material
Adopt automatic hydraulic system
Coil weight (Max): 7000kg
Coil dia (Max): 1600mm
Oil cylinder dia: 1200mm working pressure: 10mpa
Coil Width(Max. ): 500mm
2. Feeding, leveling
Feed into unit oriented wheel(can right and left adjust)
Into feeding roller, dia is ¢ 180mm, material 45# steel, quenched 48-52, chromed
Leveling is three roller above and four roller below, quenched and chromed
3. Punching (can right and left adjust)
Using hydraulic punching
Oil cylinder dia: 140mm
Working pressure: 20mpa
Mould material: Cr12 quenched 58-62
Hydraulic power: 7.5kw
Size: 1.5m long*1.1m wide*1.2m high
4. Roll forming
Main motor power: 45kw
Decelerating motor: BWD14-43-37kw, made in Shanghai or
Changzhou
Drive: Gimbal driving, 120*500
Main shaft dia: 100mm material: 45#forge steel
Roller material: GCR15 quenched 58-62, chromed
Roll station: 17stations
Timing by transducer: 5m--20m/min(not including punching)
Transducer: Panasonic made in Japan. 380V 50Hz
Computer: PLC
Computer operating panel: Touching screen
5. Cutting
Hydraulic cut
Knife material: Cr12, quenched 58-62
Oil cylinder dia: 250mm
Working pressure: 30mpa
Working journey: 80mm
6. Run out table
Jointed by 60mm*40mm tube (can be adjusted to up and down)
Size: 1.5mlong*0.8mwide*0.6-1mhigh(can be adjusted)
7. The production flow of equipment
Decoiling-Feeding(take the sheet to the first station)-leveling-Punching of the sheet -roll forming-hydraulic cut to length-product packing manual.
Zhangjiagang City Saibo Science & Technology Co, . Ltd is a professional manufacturer specializing in the developing and exporting of roll forming machine and welding pipe line, such as Metal roof & wall panels machine, C&Z purlin machine, drywall stud-track forming machines, Metal deck machines, K-span and columniation curves forming machines, and guard rail forming machines, downspout roll forming machine, weld pipe machine line and so on.
Our company, which is located in Zhangjiagang city, is close to Zhangjiagang Economy Development Area and Shanghai City with superior geographic and convenient transportation.
Since 90s, in 20 centuries, the market for steel structure building industry boomed but with the development of steel structure industry, the shorter period for construction and beautiful external appearance, as well reasonable price was occupied in the market of building industry.
Zhangjiagang Saibo Science & Technology Co, . Ltd engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machine for our regular customer. In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, and installation. Our goal is" future by heartiness, faith leads to the world"
Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
