apply to pressure measurement of high viscosity and highly corrosive medium.

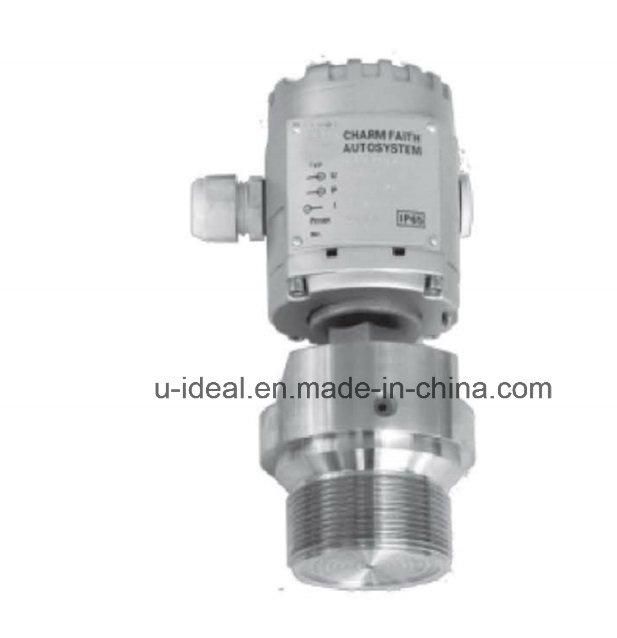

centrifugal Diaphragm type pressure seneor can be used to food,medicine.UI-P211/221 is high temperature form. Applicable to contain flammable gas explosion hazard environment of gas, liquid and steam pressure measurement. UI-P201/211/221centrifugal Diaphragm type pressure seneor adopt Die-casting aluminum explosion-proof enclosure,With multiple pressure process fitting, can adjust the zero point, range.
relative pressure: Maximum measuring range:0.0~40MPa Minimum measuring range:0.0~20.0kPa absolute pressure: Maximum measuring range:0.0MPa~40MPa Minimum measuring range:0.0kpa~+20.0kPa negative relative pressure: Maximum measuring range::-0.1~+2.4MPa Minimum measuring range:-10.1~+10kPa
Model
Transmitter Type(Single selection)
DP
HP
GP
AP
UI-P61DP
Differential Pressure transmitter
.
-
-
-
UI-P61HP
High pressure Differential pressure transmitter
-
.
-
-
UI-T62GP
Gauge Pressure
-
-
.
-
UI-P61AP
Absolute Pressure
-
-
-
.
Code
Pressure Measure range(URL)(Single selection)
DP
HP
GP
AP
3
1.3~7.5kPa
.
.
.
-
4
6.2-37.4kPa
.
.
.
.
5
31.1-186.8kPa
.
.
.
.
6
117-690kPa
.
.
.
.
7
345-2068kPa
.
.
.
.
8
1170~6890kPa
.
-
.
.
9
3480~20680kPa
-
-
.
-
0
6890~41370kPa
-
-
.
-
Code
Transmitter output (single selection)
DP
HP
GP
AP
E
4-20mA,Linear, Analog /damping adjustable
.
.
.
.
N
4-20mA, digit intelligent type
.
.
.
.
S
4-20mA,intelligent, HART protocal
.
.
.
.
Code
flange & Joints
drain/vent
diaphragm
DP
HP
GP
AP
22
316SS
316SS
316L SS
.
.
.
.
23
316SS
316SS
hastelloy C
.
.
.
.
24
316SS
316SS
Monel Alloy
.
.
.
.
25
316SS
316SS
tantalum
.
.
.
.
33
hastelloy C
hastelloy C
hastelloy C
.
.
.
.
35
hastelloy C
hastelloy C
tantalum
.
.
.
.
44
Monel Alloy
Monel Alloy
Monel Alloy
.
.
.
.
Code
Indicator (If don't need local display, don't select)
Side Drain valve at the bottom of the pressure chamber
.
.
.
.
Code
Low pressure side Flange adaptor
DP
HP
GP
AP
N
no flange adapter (with 1/4NPT female at flange to connect the press-leading lines)
.
.
.
.
C1
1/2NPT female screw flange adapter, connect pilot pressure joint and welding press-leading tube(stainless steel)
.
.
.
.
C2
M20x 1.5 Male screw flange adapter, connect pilot pressure joint and welding press-leading tube(stainless steel)
.
.
.
.
Code
Explosion-proof (don't select is standard type)
DP
HP
GP
AP
d
explosion-proof Exd II CT6
.
.
.
.
i
Intrinsically safety Exia II CT6
.
.
.
.
Typical model: UI-P61DP 4 S 22 M3 B3 D2 C2
