| Prod Model: |
ZYC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Material: |
SUS 304 or Carbon Steel |
| Voltage: |
380V or 220V Optional |
| Frequency: |
50Hz |
| Color: |
Blue, White or Grey |
| Current: |
AC |
| Rev: |
1420 Rpm |
| Warranty: |
1year |
| Screen: |
5~500mesh |
| Power: |
0.18~2.2kw |
| Forging Forming Method: |
Mold Forging |

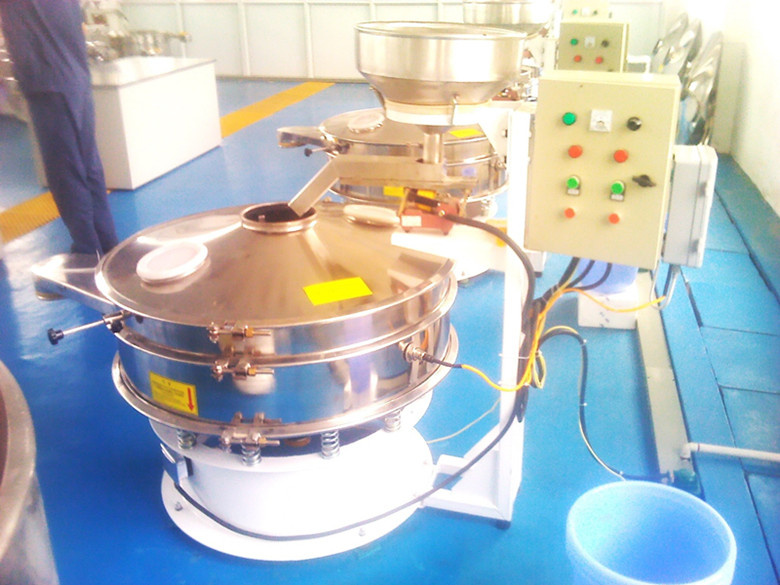

Product Description
ZYC ultrasonic Adopt advanced techniques screening equipment. It is especially effective for the separation of powders, granules and liquids, and the possibility of using mesh up to 30 microns.
Functional principle
The function principle of ultrasonic is add an ultrasonic energy converter on the separator and filter. This device can make the screen surface superpose ultrahigh frequency vibration energy, so that it can keep clear of the mesh and achieve the ideal screen situation. Ultrasonic vibrating screen is usually used in screening superfine powder which the ordinary vibration sieve can not solve.
Application:
1. Chemical industry: Resin, pigment, industrial medicine, cosmetic, coatings.
2. Food industry: Sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup.
3. Environment: Disposed oil, disposed water, disposed dye waste water, assistant detergent, active carbon.
4. Coatings: Powder coatings, pigment paints, etc.
5. Metals: Metal powders, alloys, etc.
Advantages:
1. It can solve sieving difficulties such as high adsorption, easy clustering, high static, high precision, high density, light Specific gravity.
2. Screening precision can raise to 1~100%, the output can be raised to0.5~10 times.
3. It can be used with single layer or multilayer.
4. Self-cleaning function.
5. Sieving range 0~500mesh.
6. Keep processed materials features stable.
|
Model |
Power (Kw) |
Sieving Diameter (mm) |
Dimension L× W× H (MM) |
Layer |
|
|
|
|
|
|
ZYC-400-1S |
0.18 |
Φ 320 |
580× 580× 560 |
1 |
|
|
ZYC-600-1S |
0.55 |
Φ 550 |
800× 800× 680 |
1 |
|
|
ZYC-800-1S |
0.75 |
Φ 750 |
900× 900× 780 |
1 |
|
|
ZYC-1000-1S |
1.5 |
Φ 950 |
1160× 1160× 880 |
1 |
|
|
ZYC-1200-1S |
1.75 |
Φ 1150 |
1360× 1360× 980 |
1 |
|
|
ZYC-1500-1S |
2.2 |
Φ 1450 |
1850× 1850× 1130 |
1 |
|
|
ZYC-1800-1S |
2.2 |
Φ 1750 |
2200× 2200× 1360 |
1 |
|
