Product Description
Machine description:

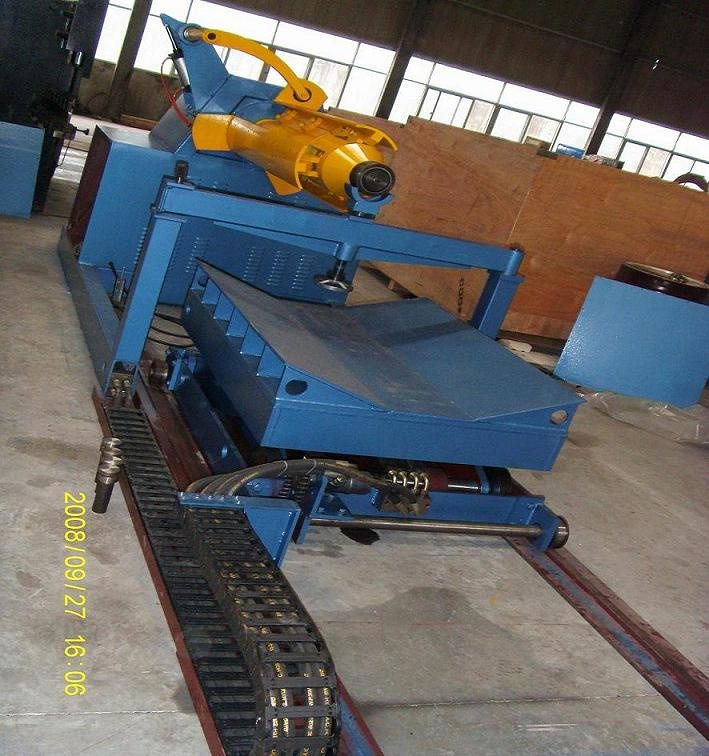

This machine mainly consists of uncoiler, hydraulic station, pneumatic press arm, coil loading trolley and guide rail. The uncoiler mandrel can shrink and expanse to meet different inner diameter of steel coils. With the control of PLC, this machine can load the steel coil onto the uncoiler automatically by coil car and uncoiler mandrel interaction. It has better loading capacity and performance than simple uncoiler, also its automatic coil load ensures the worker's safety.
Working flow:
Load coil onto the trolley_trolley move forward and life the coil to the mandrel_mandrel expanse_trolley move backward_mandrel start rotation_uncoiling-- press arm hold down the coil when machine stop
Technical parameter:
Uncoiler capacity: Max 10000kgs
Mandrel inner diameter: 508-610mm
Mandrel length: Max 1500mm
Hydraulic power: 11kw
Hydraulic pressure: 16MPa
Pneumatic pressure: 1MPa
Trolley capacity: Max 10000kgs
Moving speed: Max 8m/min
Moving distance: Max 3000mm
Lifting height: Max 600mm
Controlling system: PLC
Main machine dimension: About 4000*1500*1500mm
Machine weight: About 2500kgs
Voltage: 380V, 3 Phases, 60Hz or according to customer's requirement.
