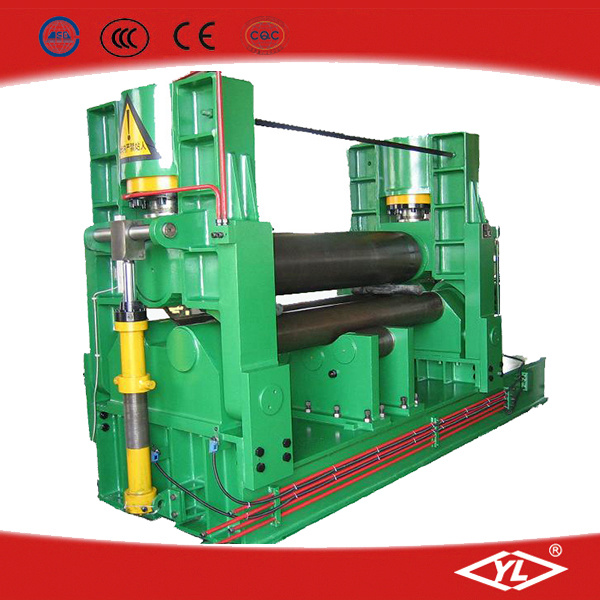

Upper Roll Universal Metal Plate Rolling Machine (W11SNC) , Steel Plate Rolling Machine

Name: Upper Roll Universal Metal Plate Rolling Machine (W11SNC) , Steel Plate Rolling Machine
Brand: china-castingforging.com
SKU: 675456801
Availability: InStock
Rating: 4.7 (26 reviews)

Price:	US $ 1000-400000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Jiangsu Harmonious Eternity International Trade Co., Ltd.

Showroom Product Company Profile

Prod Model:	W11SNC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Jiangsu, China (Mainland)
Machine Type:	Roller-Bending Machine
Material / Metal Processed:	Carbon Steel
Power:	Hydraulic
Certification:	CE
After-Sales Service Provided:	Engineers Available to Service Machinery Overseas
Electric Components:	Schneider, France
PLC\Touch Screen:	Delta
Transducer:	Omron
Use:	Steel Plate Rolling Machine
Forging Forming Method:	Free Forging

Product Description

Upper Roller Universal Steel Plate Rolling Machine Multifunction bending machine, also called upper roll universal rolling machine, is a kind of universal three roller special bending machine. It is often used in bending steel plates into barrel shape, arc shape or conical shape. The upper roller can move vertically as well as horizontally. It can finish the pre-bending work and coiling work at the same machine without any auxiliary device. The upper roller is designed in drumtype, so it has antideformation function. The upper roller universal plate rolling machinery (upper roll universal rolling machine) is equipped with carrier rollers under the lower rolls which can help to improve the coiling precision. The lower rolls are fixed symmetrically deployed relatively to upper roll. Upper roll ascends or descends at the central symmetric location of the lower rolls. The movement of upper roll is PLC controlled and LCD display is employed for displacement. This upper roller universal plate rolling machinery (upper roll universal rolling machine) is broadly used in petroleum, chemical, cement, shipbuilding, boiler, aviation, water conservancy, power transmission tower and other machinery and equipment manufacturing industries. Features . high-precision end pre-bending . NC control and high production efficiency ; . Products with preeminent precision ; . Safety operation ; . Structure of whole set with simple base and convenience for movement ; . Multiple use with correspondent control ; . Rich in bending shape .

Conditions of Sale
1	Time of delivery	45 working days after received 30% T/T deposit
2	Payment Terms	30%T/T deposit, 70% T/T before shipment
3	Packing	Normal packing in complete machine, accessories packing in wooden crate
4	Guarantee	18 Months from the date of the machine start-up, except for the usable materials and excluded our technical visits
5	Sale service	Freely offer operation manual and quality certification. Freely offer one set of installation and maintenance tools.

Main technical parameters of high small-size upper roller universal rolling machine :

Model	Max.Rolling Thickness(mm)	Max.Pre-roll Thickness (mm)	Max.Rolling Width (mm)	Up-Roll Diameter (mm)	Main Motor Power (kw)
W11SNC-12*2000	12	10	2000	250	5.5
W11SNC-16*2000	16	12	2000	255	7.5
W11SNC-16*2500	16	12	2500	300	15
W11SNC-18*3000	18	14	3000	350	15
W11SNC-20*3000	20	16	3000	375	18.5
W11SNC-25*2500	25	20	2500	380	22
W11SNC-30*2500	30	25	2500	410	30
W11SNC-30*3000	30	25	3000	450	37
W11SNC-32*3000	32	28	3000	480	37
W11SNC-35*2500	35	30	2500	460	37
W11SNC-35*3000	35	30	3000	510	45
W11SNC-40*2500	40	35	2500	500	45
W11SNC-40*3000	40	35	3000	540	55
W11SNC-40*4000	40	32	4000	610	55
W11SNC-45*3000	45	40	3000	590	55
W11SNC-45*4000	45	40	4000	660	55

Main technical parameters of extra large-size upper roller universal rolling machine

Model	Max.Rolling Thickness(mm)	Max.Pre-roll Thickness (mm)	Max.Rolling Width (mm)	Up-Roll Diameter (mm)	Main Motor Power (kw)
W11SNC-50*4000	50	45	4000	700	55
W11SNC-55*3000	55	45	3000	620	55
W11SNC-55*4000	55	50	4000	750	75
W11SNC-60*3000	60	50	3000	650	75
W11SNC-60*4000	60	55	4000	780	75
W11SNC-65*4000	65	60	4000	810	90
W11SNC-70*3000	70	60	3000	710	90
W11SNC-70*4000	70	65	4000	820	90
W11SNC-75*3000	75	65	3000	740	90
W11SNC-80*3000	80	70	3000	760	90
W11SNC-80*4000	80	75	4000	860	90
W11SNC-90*4000	90	80	3000	790	110
W11SNC-100*3000	100	90	3000	820	110
W11SNC-110*4000	110	90	4000	940	110
W11SNC-120*3000	120	100	3000	860	110
W11SNC-120*4000	120	100	4000	990	110
W11SNC-130*3000	130	110	3000	960	2*75
W11SNC-160*3000	160	120	3000	1080	2*75
W11SNC-160*4000	160	130	4000	1260	2*90
