Product Description

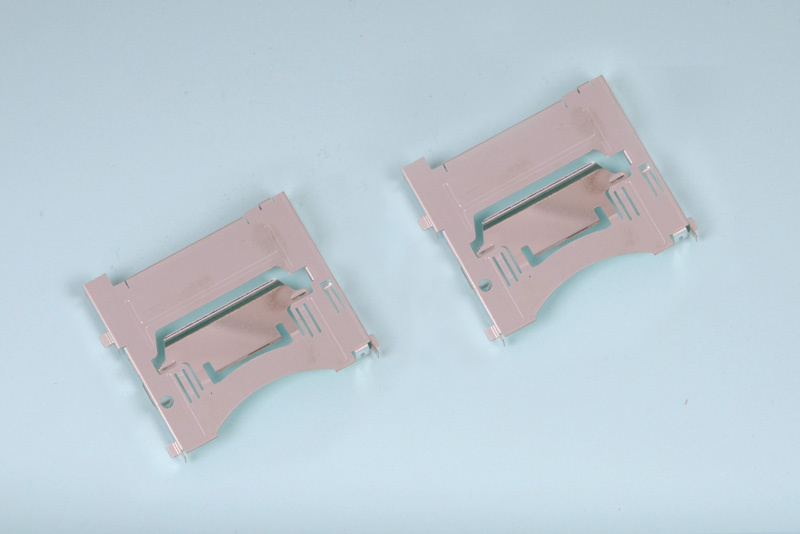

Stamped Parts 5IN1 SHELL - 2
1. Stamped Parts 5IN1 SHELL - 2 is fit for metal parts where like terminal, metal stamping for storage card, video, PC mother board, electionics and so on.
2. Produce according to the clients.
3. Established in 1982, Helioway Group is a professional Hardware company specialized in designing and making stamped part, such as connector terminal, mould design, mould manufacturing casing for computer, cell phone, consumer electronics, auto parts etc.
In stamped part processing industry, our company is famous for high quality and low cost in the market, which is why we can be supplier for world-famous brand slike Molex, Tyco, FCI, Sinbon, TaiSol, WIESON, MAINSUPER, WINING and Singatron.
|
Description of Products: |
Stamped Parts 5IN1 SHELL - 2
|
|
Product material |
Phospor copper, bronze, etc, according to buyer' s requirment.
Plating: Tin, Silver, Nickel, Gold, according to buyer. |
|
Precision |
≤ 0.01mm |
|
Roughness |
1.6UM RA-6.3UM RA, or N7-N9 |
|
PROCESS |
Purcahsing order→ Engineering appraise and Request for change→ Layout design→ New product meeting→ Die design and Material plan→ Incoming material check→ Die processing→ Die Assembly→ Die trial→ Sample check→ Sample internal approval→ Sample submission→ Die Buyoff |
|
FINISH |
The type of surface treatment depends on the volume or according to customer' s requirement |
|
INSPECTION |
5~10 Samples with full dimension report send to customer for approval before delivery. |
|
CD record with construction/part drawing will be delivered with the dies. |
|
|
PACKAGING |
Wooden case, fumigation treatment. |
|
LEADTIME |
15~60 days (depending on different products) |
Established in 1982, Helioway Group is a professional Hardware company specialized in mould design, mould manufacturing of connectors and casing for computer, cell phone, consumer electronics, auto parts etc.As well as precision metal stampings production.
We set up a plant in Guangzhou in Nov.1999.
Helioway focuses on the R&D of high speed precise progressive die as well as stamping production since its establishment.
We have 86 die machines including BRUDERER.KYORI etc.
Process technology capability:
A:Zero loss of material use
B:The min.Space between connectors is 0.4mm
C:The pressing SPM can reach to 1000-1500
D:The precision parts tolerance can control in +/-0.01mm
E:The rate of hole diameter and thickness is 0.85:1
F:The stamping material thickness is 0.07---1.00mm
Company History
Mar, 2001
Helioway developed 2 x 16 Pin PCI connectors which helped our customer save about 40%'s cost and became a key supplier for world leading PC provider.
Jan.2003
We developed a lot of products used on DIMM 168, PCI, PCI-E, DDRII, DDR III for PC main board with low cost, high quality which enhanced customers' competitiveness.
May, 2003
We became a approved supplier for FCI.
Jan.2005
Helioway began to implement ISO-14001 quality control system and G/P system.
Helioway became an approved supplier for Molex, Tyco.
DEC, 2006
Helioway passed ISO-9001 & ISO-14001 quality system authentication.
Feb.2008
Helioway began to participate all mould processing.We can do wire cutting, buffing, surface miller, surface-grinding etc.Also, we can provide one-stop service including mould design, mould making, parts manufacturing and stamping.
Mar.2008
We developed the first HDMI insert molding with the cooperation of customer.
2009
We developed USD3.0, HDMI D TYPE
2010
We developed HDMI material saving mould and LED bracket products.
Helioway committed to the fast, correct and firm work method.We have dedicated to mould manufacturing technology and stamping production in 4C industry.By continuously deepen technology, we make great efforts to meet and exceed customer expectations.
Our clients include:
Singatron Enterprise Co.Ltd
Winning Enterprise Co., Ltd
Main Super Enterprise Co., Ltd
WIESON Enterprise Co., Ltd
Taisol Electronics Co., Ltd
Molex
Tyco
Fci
Sinbon
