LSZ one-piece three phase current transformer is suitable for installation in
the ring net switch cabinets and threephase casing  on the main column
switch
for the three phase current and zero sequence current  measuring and
protection
also be used for more cablecircuit of zero sequence
current measurement and protection.

     The series of zero sequence current transformer core and secondary windings

is made of high quality epoxy resin vacuum casting in the fire retardant plastic  casing,
which has the characteristic of moisture proof, stable performance and dispensing with maintenance.



Technical data

1:Rated frequency:50Hz or 60Hz;

2:Rated secondary current:5A or 1A;

3:Rated short-time thermal current:40kA,1s;

4:Rated continuous thermal current:100%In;

5:Continuous power-frequency voltage 3kV , 1min;

6:standards:IEC 185:1987,GB1208-2006(china),DL/T 725-2000 (china);

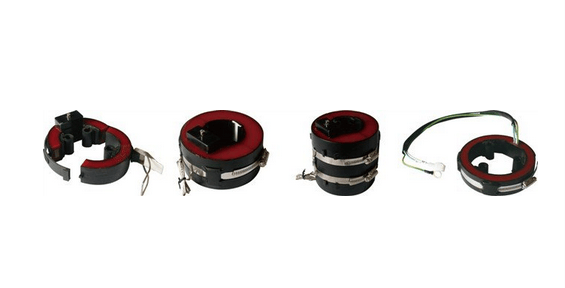

split core(open core )current transformer used for protection

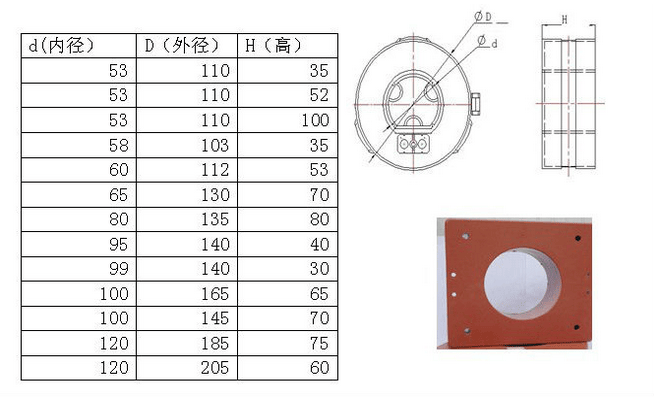

Current RatioAccuracy class&Rated overloadModel&Dimension
Input(A)Output(A)10P1510P1010P5
401    /12LDZK-3P

(50mm×110mm×86mm)
501    /12
751    /1.52.5
1001    1.52.53.75
1501    22.55
20012.53.757.5
505/12.5
755/12.5
100512.55
150522.55
200522.55
30053.75510
400557.515

751/12LDZK-2P

(50mm×110mm×52mm)
1001/1.52.5
1501122.5
20011.52.55
300123.755
40012.53.755
50013.75510
600157.515
2005/23.75
300512.55
40012.557.5
50013.75510
600157.515

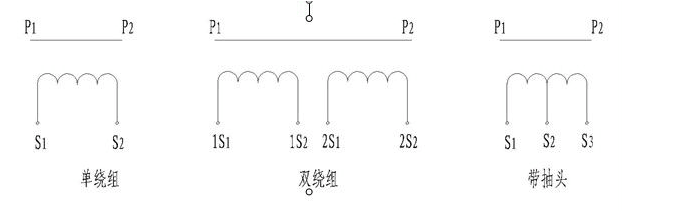

 Wiring diagrams

There are many choice in this series regarding convert ratio,accuracy class and rated load.
We can also customized for customer.

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes
2. Current Transformer
3. Differential Mode Chokes
4. Automotive Chokes (for car audio)
5. Magnetic Amplifier

6. PFC Chokes
7. ISDN Splitter
8. GFCI (Ground-Fault Circuit Interrupters)
9. ELCB (Earth Leakage Circuit Breaker)
10. ALCI(Appliance Leakage-Current Interrupters)
11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
