V Seires Submersible Garden Pump for Waste Water (V1500F)

Name: V Seires Submersible Garden Pump for Waste Water (V1500F)
Brand: china-castingforging.com
SKU: 689156255
Availability: InStock
Rating: 5 (78 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Taizhou Yuanle Pump Co., Ltd.

Showroom Product Company Profile

Prod Model:	V1500F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insulation Class:	B/F
Warrabty:	1 Year
Application:	Sewage Pump
Type:	Blade Pump
Material:	Stainless Steel
Power:	Electric
Structure:	Single-stage Pump
Theory:	Centrifugal Pump
Performance:	Drainage Pump
Industry:	Garden Pump

Product Description

SEWAGE SUBMERSIBLE PUMP

Applications

Applied to pumping such liquid which is not clean, with solid matter or frictional matter, low viscous, lcorrosive, crystallizable, chemically neutral and close to water. Such as:

1. domestic wastewater treatment system

2. School,hospital,community wastewater treatment system

3. Irrigation

Features

1. 100% copper wire

2. Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision

3. Double sides mechanical seal graphite&ceramic

4. Demagnetization of stainless steel nuts

5. Anti-rust treatment castings and electrophoresis

6. New testing equipment

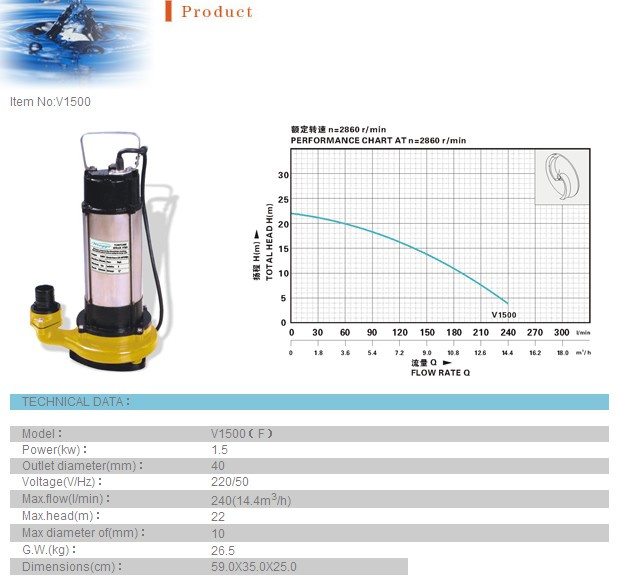

TECHNICAL DATA

Name	Pump body	Impeller	Motor housing		Motor wire	Michanical seal		Shaft	Ball bearing
Material	cast iron	nylon& fibre	stainless steel		copper	ceramic & graphite		2Gr13	China

Model	Rated power		Outlet	Rated flow	Max flow	Rated head	Max head	G. W	Packing
	(KW)	(HP)	(mm)	(m3/h)		(m)		(kg)	Dimension
									(mm)
V180F	0.18	0.24	40/32/25	5	8	5	7	8.5	185180365
V250F	0.25	0.33	40/32/25	5	9	5	7.5	9.5	185180385
V450F	0.45	0.6	50	5	12	7	8.5	18.5	260195505
V750F	0.75	1	50	10	18	10	12	21.5	260195540
V1100F	1.1	1.5	50	16	20	6	9	24	270225560
V1500F	1.5	2	40	6	16	22	24	27	590350250
V2200F	2.2	3	80	30	42	11	17	33	590350250

YUANLE PUMP is a Chinese pump manufacturer, offering products not only for agricultural area, but industrial, commercial, residential areas and public utilities as well. Our main products include the surface pump, submersible pump, sewage pump, deep well pump, and multistage pump, which enjoy high reputation in the domestic and overseas markets. Additionally, we also have rich experience in exporting and supplying high quality products with excellent service.
