| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR |
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | V180F |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: | Electric |
| Structure: | Single-stage Pump |
| Theory: | Centrifugal Pump |
| Type: | Blade Pump |
| Application: | Sewage Pump |
| Material: | Stainless Steel |
| Performance: | Drainage Pump |
| Industry: | Garden Pump |
APPLICATION
Applied to pumping such liquid which is not clean, with solid matter or frictional matter, low viscous, lcorrosive, crystallizable, chemically neutral and close to water. Such as:
1. domestic wastewater treatment system
2. School,hospital,community wastewater treatment system
3. Irrigation and gardening
Features
1. 100% copper wire
2. Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision
3. Double sides mechanical seal graphite&ceramic
4. Demagnetization of stainless steel nuts
5. Anti-rust treatment castings and electrophoresis
6. New testing equipment

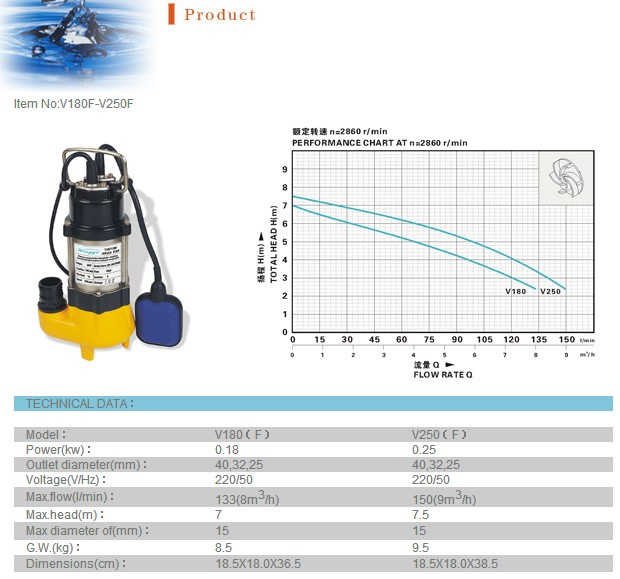

TECHNICAL DATA
| Type | Outlet Diameter (mm) | Power (Kw) | Max. Flow (m3/h) | Max. Head (m) | Max. Solid (mm) | Cable Length (m) | G. W. (Kg) | Packaging Dimension (cm) |
| V180F | 40; 32; 25 | 0.18 | 8 | 7 | 15 | 5.3 | 9 | 18.5*18*36 |
| V250F | 40; 32; 25 | 0.25 | 9 | 7.5 | 15 | 5.3 | 9.5 | 18.5*18*38 |
| V450F | 50 | 0.45 | 12 | 8.5 | 25 | 6 | 18 | 25.5*19.5*49.5 |
| V750F | 50 | 0.75 | 18 | 12 | 25 | 6 | 22 | 25.5*19.5*53.5 |
| V1100F | 50 | 1.1 | 20 | 9 | 35 | 6 | 23.5 | 27.5*22.5*55.5 |
| V1500F | 40 | 1.5 | 16.2 | 22 | 10 | 10 | 27 | 58.5*35*24.5 |
| V2200F | 75 | 2.2 | 42 | 17 | 20 | 6 | 35 | 58.5*35*24.5 |
| V1100DF | 50 | 1.1 | 13.9 | 7 | / | 6 | 22.5 | 56.5*30.5*24.5 |
| V1300DF | 50 | 1.3 | 18 | 12 | / | 6 | 25.5 | 56.5*30.5*24.5 |
| V1800DF | 75 | 1.8 | 26.4 | 10 | / | 6 | 20.5 | 58.5*35*24.5 |
