Prod Model: |
V1500F |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power: |
Electric |
Structure: |
Single-stage Pump |
Theory: |
Centrifugal Pump |
Type: |
Blade Pump |
Application: |
Sewage Pump |
Material: |
Stainless Steel |
Performance: |
Drainage Pump |
Media: |
Water Pump |
Industry: |
Garden Pump |
Product Description

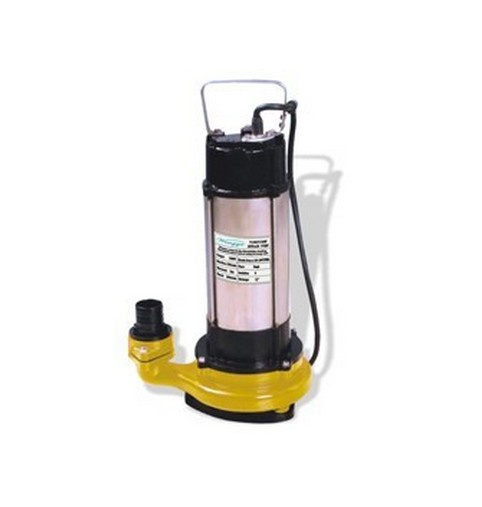

SEWAGE SUBMERSIBLE PUMP
APPLICATION
Applied to pumping such liquid which is not clean, with solid matter or frictional matter, low viscous, lcorrosive, crystallizable, chemically neutral and close to water. Such as:
1. domestic wastewater treatment system
2. School,hospital,community wastewater treatment system
3. Irrigation and gardening
Features
1. 100% copper wire
2. Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision
3. Double sides mechanical seal graphite&ceramic
4. Demagnetization of stainless steel nuts
5. Anti-rust treatment castings and electrophoresis
6. New testing equipment

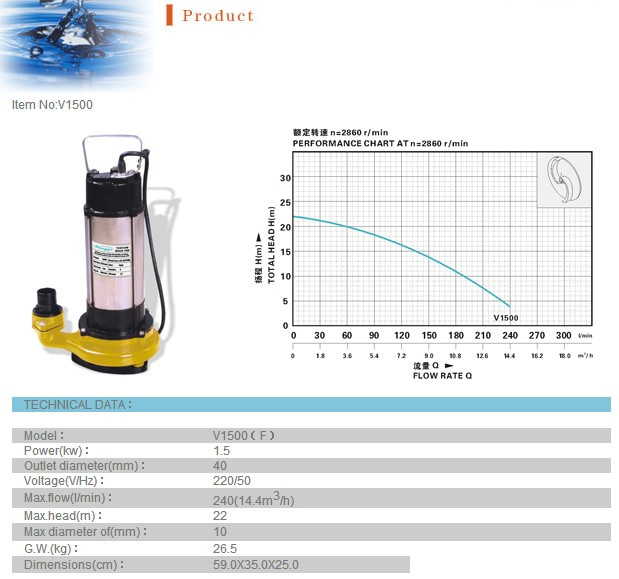

TECHNICAL DATA
Type |
Outlet Diameter (mm) |
Power (Kw) |
Max. Flow (m3/h) |
Max. Head (m) |
Max. Solid (mm) |
Cable Length (m) |
G. W. (Kg) |
Packaging Dimension (cm) |
V180F |
40; 32; 25 |
0.18 |
8 |
7 |
15 |
5.3 |
9 |
18.5*18*36 |
V250F |
40; 32; 25 |
0.25 |
9 |
7.5 |
15 |
5.3 |
9.5 |
18.5*18*38 |
V450F |
50 |
0.45 |
12 |
8.5 |
25 |
6 |
18 |
25.5*19.5*49.5 |
V750F |
50 |
0.75 |
18 |
12 |
25 |
6 |
22 |
25.5*19.5*53.5 |
V1100F |
50 |
1.1 |
20 |
9 |
35 |
6 |
23.5 |
27.5*22.5*55.5 |
V1500F |
40 |
1.5 |
16.2 |
22 |
10 |
10 |
27 |
58.5*35*24.5 |
V2200F |
75 |
2.2 |
42 |
17 |
20 |
6 |
35 |
58.5*35*24.5 |
V1100DF |
50 |
1.1 |
13.9 |
7 |
/ |
6 |
22.5 |
56.5*30.5*24.5 |
V1300DF |
50 |
1.3 |
18 |
12 |
/ |
6 |
25.5 |
56.5*30.5*24.5 |
V1800DF |
75 |
1.8 |
26.4 |
10 |
/ |
6 |
20.5 |
58.5*35*24.5 |
YUANLE PUMP is a Chinese pump manufacturer, offering products not only for agricultural area, but industrial, commercial, residential areas and public utilities as well. Our main products include the surface pump, submersible pump, sewage pump, deep well pump, and multistage pump, which enjoy high reputation in the domestic and overseas markets. Additionally, we also have rich experience in exporting and supplying high quality products with excellent service.
