Valve Guide Man 40/45

Valve Guide Man 40/45
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 50/Piece
Pay Type: T/T
Prod Model: MAN 40/45
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Gg25
Dimensions: 62diax52diax28dia Borex292length

Product Description

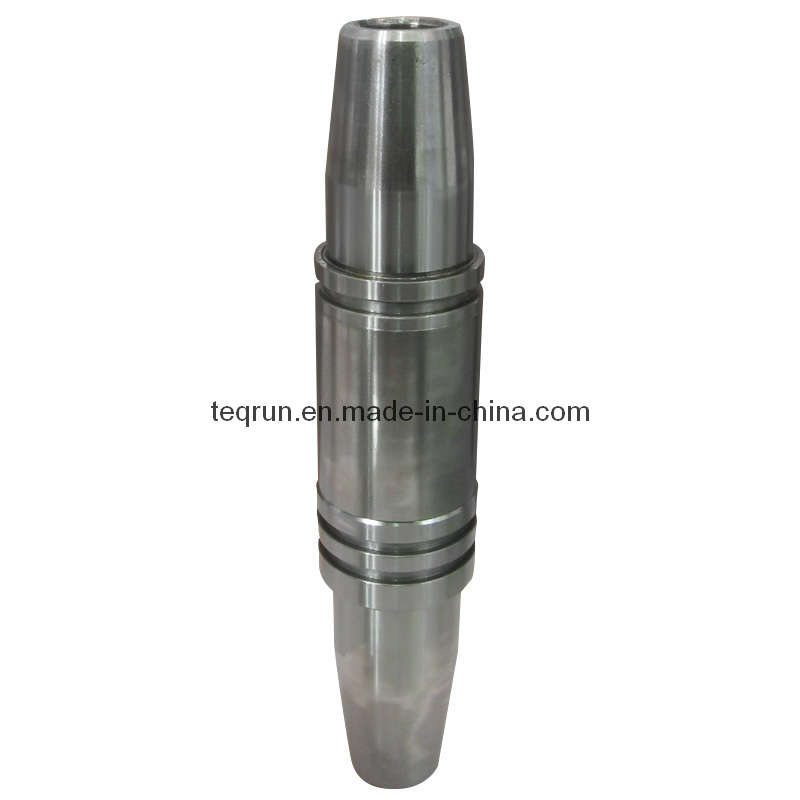

Description of Valve Guide for MAN 40/45 engine:
1. Material: GG25(standard), Alternatives: High alloy cast iron, Broneze, etc...
A). Mechanical properties(GG25):
Tensile strength: 250MPa min. Hardness: HB220-260
B). Matrix: Perlite, ferrite 10% max.; Graphite: Preferably lamellar and uniformly distributed; Phosphide eutectic: Preferably continuous network.
2. Guide bore to be gun drilled and plateau honed for excellent bore diameter and straightness and achieving cross hatch pattern for better running-in;
3. Fitting diameter to be ground, and achieving max. 0.0008' concentricity between guide bore and fitting dia.
4. Surface treatment: Phosphating or Tufftriding.
5. Casting defects and welding repair are not allowed.
ABOUT US

TEQRUN Machinery is a specialist company providing marine, locomotive and industrial diesel engine spares made by leading manufacturers who are all ISO 9001 certificated and capable to produce reliable parts proven by customers both in European countries and China. With a long established nationwide network of sourcing professionals and distribution gateways, we can locate and ship your requirement quickly and efficiently.

QUALITY CONTROL

TEQRUN Machinery is totally committed to the highest standards of quality in all its activities. The products we supply are all from leading manufacturers in China who were authorized to produce OEM parts to Wartsila, MAN, B&W, Sulzer, Pielstick, Mak, Yanmar, Daihatsu, GE, EMD etc.

Targeting zero defect management, we do regular factory tour for in process control for the aspects which are critical to quality and do strict final conformity inspection in our warehouse. In case of first articles verification, we will do all necessary destructive and nondestructive tests in qualified lab.

For continual improvement, we work with manufacturers and our customers for corrective and preventive actions based on information of customer needs, complains, competitors benchmark and in-process control findings.

PRODUCTS

We supply OEM quality spare parts listed below including but not limited to pistons, valve spindles, cylinder liners, cylinder heads, valve seat rings, valve guides and bearing shell/bushes. Our R&D engineers also capable to develop/design/fabricate for customers the products to their drawings, samples of diesel engine spares which are out of manufacturer's products rang.

SERVICE

With wide knowledge of diesel engine spares, we also capable to act as a consultant of customers for conducting supplier survey, ISO 9001 audit to supplier, quality plan, drawings/specifications translating, in-process and/or final inspection, material testing etc.
