Prod Model: |
SULZER 25/30 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Gg25 |
Dimensions: |
50diax32diax20dia Borex192length |
Product Description

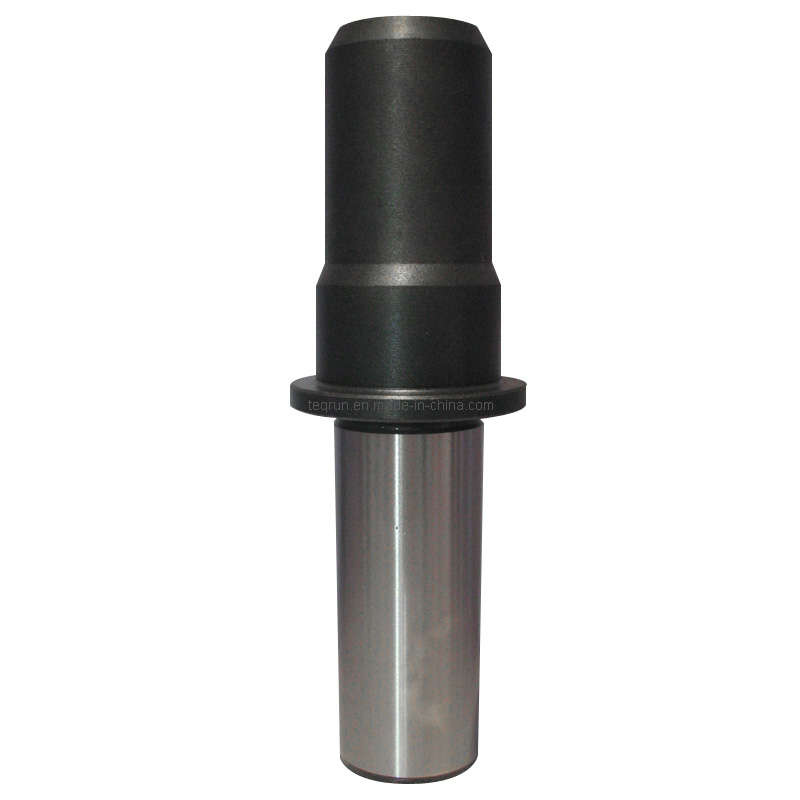

Description of
Valve Guide for
Sulzer 25/30 engine:
1. Material: GG25(standard), Alternatives: High alloy cast iron, Broneze, etc...
A). Mechanical properties(GG25):
Tensile strength: 250MPa min. Hardness: HB220-260
B). Matrix: Perlite, ferrite 10% max.; Graphite: Preferably lamellar and uniformly distributed; Phosphide eutectic: Preferably continuous network.
2. Guide bore to be gun drilled and plateau honed for excellent bore diameter and straightness and achieving cross hatch pattern for better running-in;
3. Fitting diameter to be ground, and achieving max. 0.0008' concentricity between guide bore and fitting dia.
4. Surface treatment: Phosphating or Tufftriding.
5. Casting defects and welding repair are not allowed.
