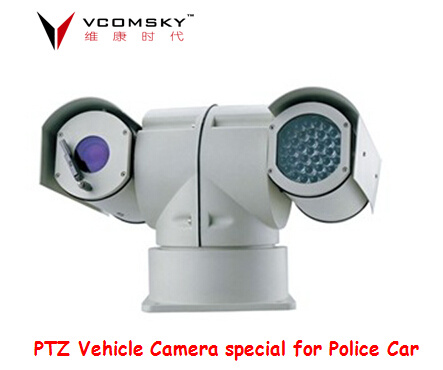

Vehicle PTZ Car Camera with Maximum 100m IR Range
| Price: |
US $ 599-999/Piece |
| Trade Terms: |
FOB,FCA,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
VC-P7001 PTZ Camera |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Horizontal Angle: |
360 ° Continuous Rotation |
| Spec.: |
Night Vision |
| IR Distance: |
100m |
| Waterproof Level: |
IP66 |
| Technology: |
Pan / Tilt / Zoom |
| Style: |
Pan/Tilt |
| Type: |
Car Camera |
| Sensor: |
CCD |
| Horizontal Resolution: |
480tvl |
| Kind: |
Autofocus Lens |
| Certification: |
SGS |
| Feature: |
Auto BLC |
Product Description
Features
Unique package
Intelligent light, combination of long distance and close range
Built-in wiper blade
SONY-EXVIEW lowiiiumination intergrated camera, automatic colour to
Black, Effective Pixels 440000
The overall high-strength aluminum alloy die-casting housing, Internal
Metal structure, impact, corrosion, protection waterproof level reach IP66
Suitable for night, bad environment, far distance, large areas and,
Monitoring places
Built in decoder, multi-communication protocols, baud rate and
Different protols
P/T stably and quiet, low noise, image shake-free
Horizontal angle: 360° No limitation, vertical angle: 80° .
Positioning accuracy: ± 0.1°
255 present points, data power off memory
Supporting horizontal scaning between two points, scanning speed
Adjustable
8 visitatorial track (16points per line )
Communication: RS485. Code address: 1-255
| MODE | VC-7001 |
| Image sensor | 1/4" IT EXVIEW HAD CCD
|
| Picture element | 752(H)×582(V)
|
| Effective pixel | FCB-EX980S/SP |
| Sunchronization system | Inter-sync
|
| Video output | VBS 1.0Vp-p/75 ohm
|
| Scaning system | 15.625KHz(H) 50Hz(V)
|
| Horizontal resolution | 480TVL
|
| S/Nratio | ≥50dB
|
| Electic shutter | 1/50~1/10,000s
|
| Minimum illumination | 0.09Lux |
| Camera function | AUTO/MANUAL electronic shutter,auto white blance,BLC,
|
| Focus lens | 26x Optical Zoom 12xdigital zoom
F=3.5~91;F1.6~F3.8;2.3°~55° |
| Light | IR(10X18) |
| Ir distance | 100M |
| Communication | Rs485,Pelco-D,Pelco-P,Samsung,B01,A01,SAE,Kalatel Support and so on
|
| Visitatorial track | 8 |
| Self learning function | 3 |
| Horizontal angle | 360 ° Continuous rotation
|
| Horizontal scan speed | 0.5°~200 ° / s |
| Vertical angle | +90 °~-90 °
|
| Vertical scan speed | 0.5°~150 ° / s |
| Present points | 255 |
| Fast operation function | cruise ,scaning present point wiper blade, IRl ighr 360 horizontal scaning °
|
| Menu | OSD |
| Operating temperature | -35-55
|
| Power supply | DC12V 45W MAX
|
| Weight | 10KG(INCLUDING PACKAGE)
|
| package inch | 562.0 mm(W)*245.0 mm(H)* 374.0mm(D) |
| Waterproof level | IP66 |
