| Prod Model: |
KBS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Submersible Slurry Pumps |
| Material: |
Cast Iron |
| Structure: |
Single-stage Pump |
| Power: |
Electric |
| Type: |
Positive-Displacement Pump |
| Application: |
Sewage Pump |
| Theory: |
Vortex Pump |
| Assembly: |
Submersible Sewage Pump |
Product Description

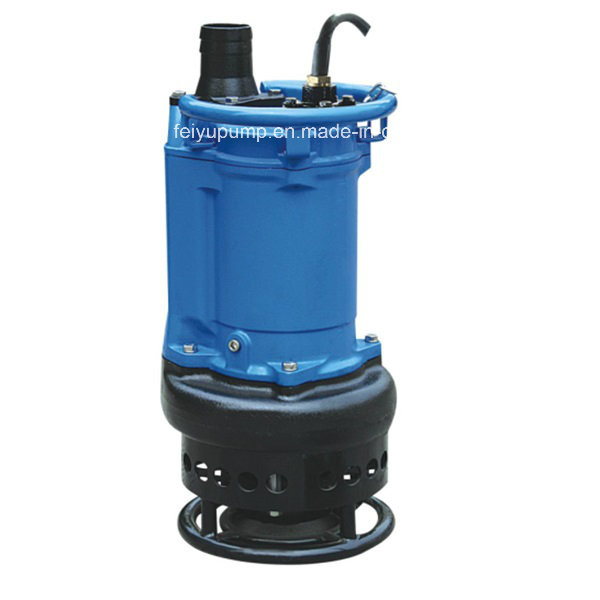

Submersible Slurry Pumps
MODEL NO: KBS
PRODUCT OVERVIEW
The KBS series Slurry pumps with a 4-pole motor for an increased lifetime and greater convenience.
Applications
? For civil engineering
? For mines,quarries,coal ore&slurries
? For sewage treatment plants
? For general pumping purposes
? For pumping fluid:sludge,liquidscontaining mud and bentonite
Operating limits
Max. Liquid temperature: 40°C
Max. Ambient temperature: 40°C
Max. Submersible depth: 30m Solid particles up to 35mm
Continuous duty
Materials
Pump body: Grey iron casting
Impeller: Chromium iron casting
Suction plate: Chromium iron casting
Mechanical seal: Silicon carbide
Motor
Two-pole induction motor
Three phase,50Hz Insulation
Class F Protection
IP68
PARAMETERS
| Model | Power
(KW) | Q.Max
(m³/h) | H.Max
(m) | Outlet
(mm) |
| 80KBS44 | 4 | 99 | 14.8 | 80 |
| 100KBS46 | 6 | 150 | 16.9 | 100 |
| 150KBS49 | 9 | 180 | 21.5 | 150 |
| 200KBS422 | 22 | 360 | 32 | 200 |
WARRANTY
1. We offer warranty 18 months,since the date from the customer sell to their customers.
2. During the warranty,if any quality claims,we will ask for documents(usually guarantee cards), photos and detailed reports of the defects and the possible causes, once it is confirmed, we will send free spare parts to make maintenance, if the pumps are not possible to be repaired,we will send new pumps for free in next shipments.
3. We will always include 2% free spare parts which can be easily damaged in each shipment,for your usual easy maintenance. 2% is 2% of the order quantity.
COMPANY INFORMATION
WASSERMANN is a company that is committed to study, to develop, to manufacture and to industrialize pumping systems.We have been operating in the electric pump industry for more than twenty years.
We offer to our customers a big and specific range of pumps for a large variety of uses: Domestic applications, industrial fields, groundwater, wastewater and sewage applications, for civil plants, building-service sector, agricultural and irrigation applications, swimming pools and SPA baths.
The same time,WASSERMANN is a distributor of climate and sanitary hot water solutions and services, operating in a market more than 10 years. Pls refer to the link below.
